PLD Scissors Lift

Product catalog summary

Overview: The PLD family of lifts are cost-effective, stationary dock lifts designed for light to medium duty loading applications, particularly where no dock exists. They are surface-mounted and feature simple construction.

Typical Markets: Automotive & Transportation, Chemicals & Plastics, Aerospace, Food & Drug.

Key Features:

Lubricated-for-life composite bearings on all pivot points.
Solid steel legs and 4-way tread plate platform surface.
Turned, ground, polished, and hard-chromed axle pins.
Double-wire braided hydraulic hoses and velocity fuses on cylinders.
Internally mounted 3/4 hp super torque motor.
Prewired UL labeled and approved control components.
Built and designed in accordance with ANSI MH29.1 standards.
Factory tested to 110% of capacity.
Chrome-plated cylinder rods and permanently-mounted 48” high handrails.
24” x 48” hinged approach ramp and 12” x 48” throwover bridge.

Specifications:

Capacities range from 2,000 to 5,000 lbs with a vertical travel of 55 1/2 inches.
Platform sizes include 60 x 84 inches and 72 x 96 inches.
Axle load capacity over bridge end ranges from 1,500 to 3,000 pounds.
Travel speed varies from 6 to 12 feet per minute.
Standard motor horsepower ranges from 3/4 to 5 hp.

Benefits:

Maintenance-free bearings and minimal platform deflection.
Extended bearing and hose life for added safety.
High-efficiency motor for faster raising times.
Easy servicing of hydraulic and electrical components.
Safety feature to arrest free fall in case of severed hose.

Power Supply: Options include a 3/4 hp Super Torque TENV motor with 115 or 230VAC, 60 cycle single phase, and a 5 hp 208VAC single phase for the PLD-50 model.

Warranty: 1-year warranty on labor, electrical, hydraulic, and mechanical components.

Catalog excerpts

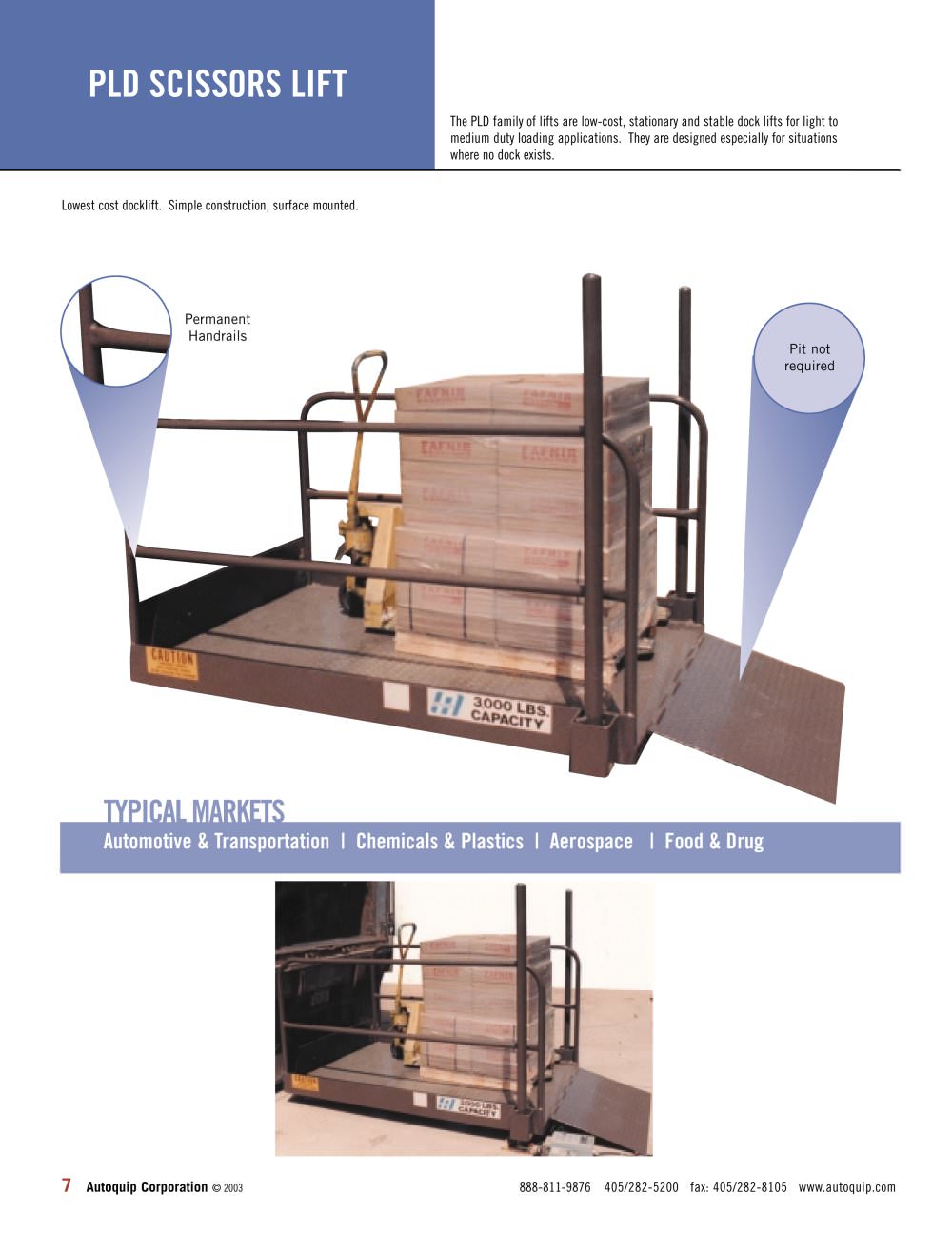

Lowest cost docklift. Simple construction, surface mounted. TYPICAL MARKETS Automotive & Transportation | Chemicals & Plastics | Aerospace | Food & Drug Permanent Handrails 7 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. Pit not required

Open the catalog to page 1

· Velocity fuses on cylinders · Internally mounted 3/4 hp super torque motor · Prewired UL labeled and approved control components · Built and designed in accordance with ANSI MH29.1 · Factory tested to 110% of capacity · Chrome-plated cylinder rods · Permanently-mounted 48” high handrails · 24” x 48” hinged approach ramp · 12” x 48” throwover bridge OPTIONS · 115 vac or 230VAC-60 cycle-single phase power voltage 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com © 2003 Autoquip Corporation SPECIFICATIONS: Capacities – 2,000 to 5,000 lbs. - 5512'' Vertical Travel Platform Sizes (inches)...

Open the catalog to page 2
