CMD Scissors Lift

Product catalog summary

Overview
The MOBI-DOCK is a configurable, low-profile, light-duty portable dock lift designed for situations where no dock exists. It is suitable for markets such as automotive, postal, retail outlets, and food & drug industries. The lift provides a capacity of up to 4,000 lbs and a raised height of up to 56 inches.

Key Features

Lubricated-for-life composite bearings on all pivot points
Solid steel legs and a platform surface constructed of 4-way tread plate
Turned, ground, polished, and hard-chromed axle pins
Double-wire braided hydraulic hoses and velocity fuses on cylinders
Internally mounted 2 hp motor with prewired UL labeled and approved control components
Factory tested to 110% of capacity with chrome-plated cylinder rods
Flip down wheels for transporting unit
30” x 60” hinged approach ramp and 18” x 60” hinged throwover bridge
1 permanent and 1 removable 48” high handrails
Built and designed in accordance with ANSI MH29.1 standards

Specifications

Capacities: 3,000 & 4,000 lbs
Raised Height: Up to 57 inches
Platform Sizes: 72 x 72 inches
Axle Load Capacity: 1,500 to 2,000 pounds depending on position
Base Frame Size: 60 x 75 inches
Travel: 50 inches
Lowered Height: 5 3⁄8 inches
Nominal Standard Speed: 8 FPM
Standard Motor: 2 HP (230/60/3)
Number of Rams: 2
Shipping Weight: 2,400 to 2,600 pounds

Benefits

Maintenance-free bearings with no greasing required
Zero platform deflection in lowered position
Extended bearing and hose life for added safety
High-efficiency motor for faster raising times
Easy servicing of hydraulic valve components
Free fall arrested in case of severed hose for safety
Easy relocation to different docks or facilities

Versatility
The approach ramp, bridge, and handrails are removable and can be positioned on any of three open sides.

Power Supply
The standard 2 hp electric motor operates at 230VAC, 60 cycle, 1 phase.

Catalog excerpts

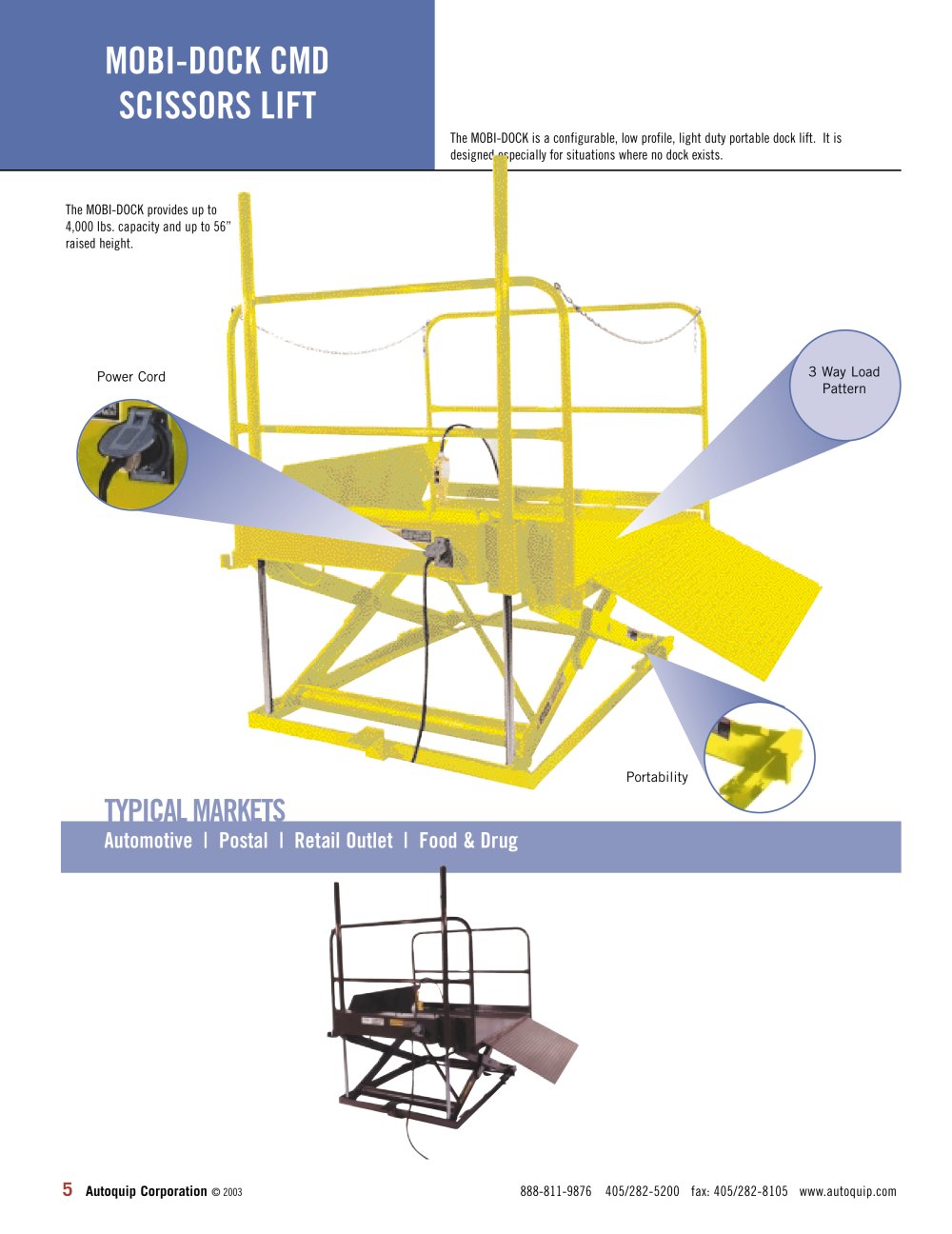

TYPICAL MARKETS Automotive | Postal | Retail Outlet | Food & Drug The MOBI-DOCK provides up to 4,000 lbs. capacity and up to 56” raised height. Power Cord 5 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. Portability 3 Way Load Pattern

Open the catalog to page 1

· Velocity fuses on cylinders · Internally mounted 2 hp motor · Prewired UL labeled and approved control components · Factory tested to 110% of capacity · Chrome-plated cylinder rods · Flip down wheels for transporting unit · 30” x 60” hinged approach ramp · 18” x 60” hinged throwover bridge · 1 Permanent and 1 Removable 48” high handrails · Built and designed in accordance with ANSI MH29.1 OPTIONS · Bumper for added housing protection · PS. Options * - “Postal Package” which meets the requirements of published Federal Specifications 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com...

Open the catalog to page 2
