Carousel
Carousel
- Slip-resistant grit surface for safety.
- “Tecspak” bumpers for soft landings.
- 48” high handrails with snapchains at pick openings.
- One 36” gate with a mechanical latch.
- Painted in “iron” blue for durability.
- Capillary tubing on breather ports to prevent leaks.
- Duplex outlet and NEMA 12 up/down pushbutton for control.
- Maintenance-free composite bearings and solid steel legs.
- Double-wire braided hydraulic hoses and velocity fuses for safety.
- Built to ANSI MH29.1 standards and factory tested to 110% capacity.
- Maintenance-free bearings and minimal platform deflection.
- Extended life for bearings and hoses, enhancing safety.
- High-efficiency motor for faster operation.
- Easy servicing of hydraulic and electrical components.
- Controlled descent in case of hose failure for safety.
- Travel range: 72" to 96".
- Capacity: 2,000 lbs.
- Base frame dimensions vary with model.
- Platform sizes range from 72" x 102" to 72" x 228".
- Lowered height: 8" to 12"; Raised height: 80" to 108".
- Maximum end load: 500 lbs; Maximum side load: 1,000 lbs.
- Speed: 20 fpm.
- Shipping weight ranges from 3,600 to 4,200 lbs depending on the model.
Catalog excerpts

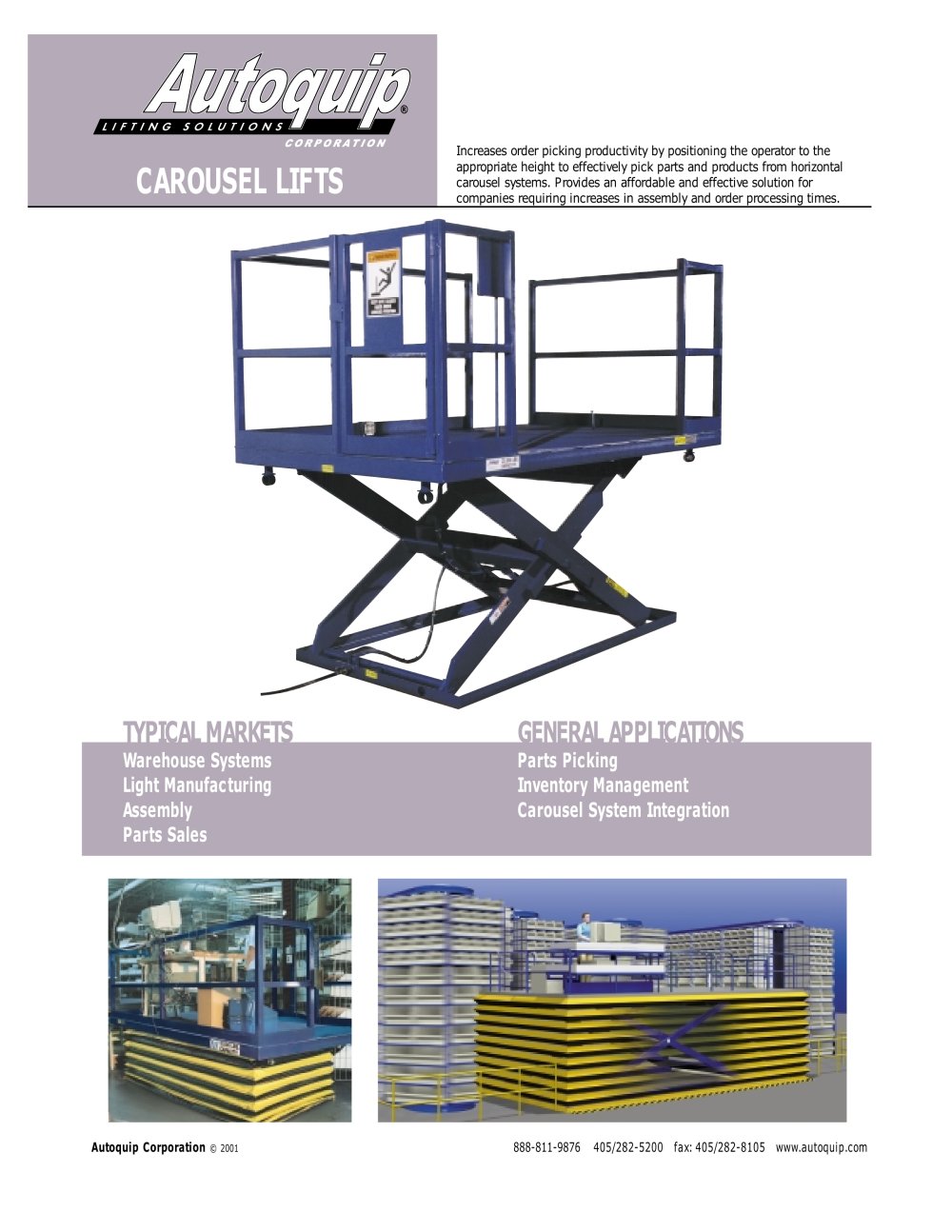

Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com Increases order picking productivity by positioning the operator to the appropriate height to effectively pick parts and products from horizontal carousel systems. Provides an affordable and effective solution for companies requiring increases in assembly and order processing times. CAROUSEL LIFTS TYPICAL MARKETS Warehouse Systems Light Manufacturing Assembly Parts Sales GENERAL APPLICATIONS Parts Picking Inventory Management Carousel System Integration
Open the catalog to page 1
Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com KEY FEATURES · Slip-resistant grit surface · “Tecspak” bumpers for soft landing · 48” high handrails with snapchains at pick openings · One 36” gate with mechanical latch · Painted “iron” blue · Capillary tubing on breather ports of cylinders to prevent leaking · One duplex outlet mounted to platform and wired to J-box · NEMA 12 up/down pushbutton mounted to lift and wired to J-box · Lubricated-for-life composite bearings on all pivot points · Solid steel legs · Turned, ground, polished and hard-chromed axle...
