Bascule Bridges

Product catalog summary

Overview: Bascule Bridges are hydraulically operated structures designed to facilitate safer railroad crossings and overcome obstacles that disrupt traffic flow. They can be raised to a vertical position when not in use and are built according to specific quote specifications.

Specifications: Standard platform sizes range from 6' x 16' to 8' x 33', with a capacity of up to 100,000 lbs. Custom designs are available for increased capacities or different platform sizes.

Options: Options include double wide platforms up to 16', double long platforms up to 40', double leaf bridges for wider spans or low overhead clearance, and automatic support legs for unsupported applications.

Power Supply: Motor horsepower is matched to the specific application requirements.

Mini-Bascule Bridge Specifications: The Mini-Bascule Bridge model MBB-65-20 features a platform size of 72 x 60 feet, an axle load of 1,000 inches, a capacity of 2,000 pounds, a speed of 5 feet per minute, and a standard motor of 5 horsepower.

Applications: Typical markets include automotive, food & drug, ports, rail car facilities, and warehouses.

Contact Information: For quotes and custom applications, contact Autoquip Corporation at 888-811-9876 or visit www.autoquip.com.

Catalog excerpts

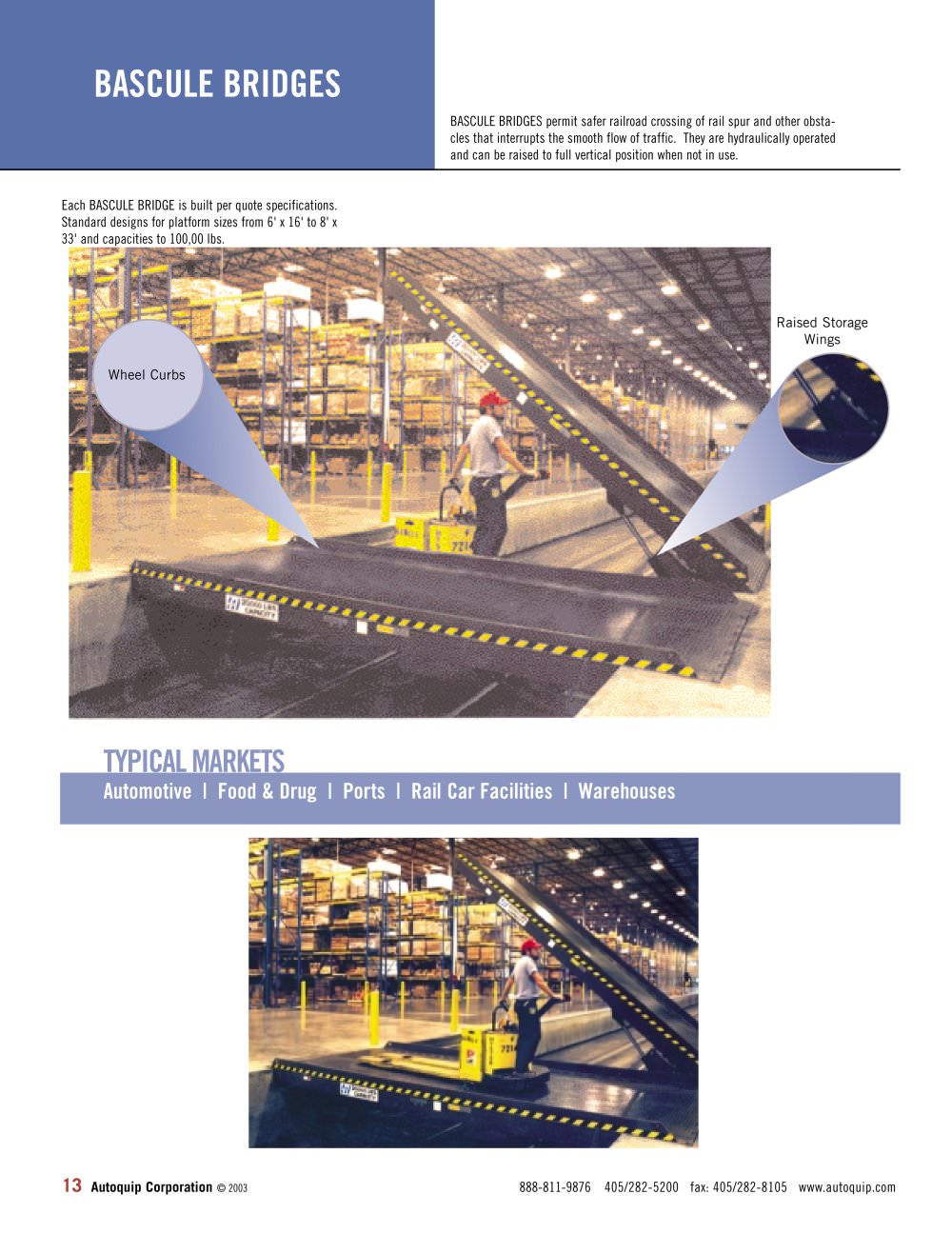

Each BASCULE BRIDGE is built per quote specifications. Standard designs for platform sizes from 6' x 16' to 8' x 33' and capacities to 100,00 lbs. Raised Storage Wings 13 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. TYPICAL MARKETS Automotive | Food & Drug | Ports | Rail Car Facilities | Warehouses Wheel Curbs

Open the catalog to page 1

applications 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com © 2003 Autoquip Corporation Bascule Bridge: Model Specifications · Motor horsepower matched to the application Mini-Bacule Bridge SPECIFICATIONS: Mini-Bascule Bridge Platform Sizes (feet) 72 x 60 Axle Load (inches) 1,000 Capacity (pounds) 2,000 Speed (FPM) 5 Standard Motor (hp) 5 No. of Cycles 1 Model MBB-65-20 Each Bascule Bridge is custom designed and built utilizing a database of standard engineering drawings and specifications. Autoquip is ready to quote your application. Consult your factory representative. BASCULE...

Open the catalog to page 2
