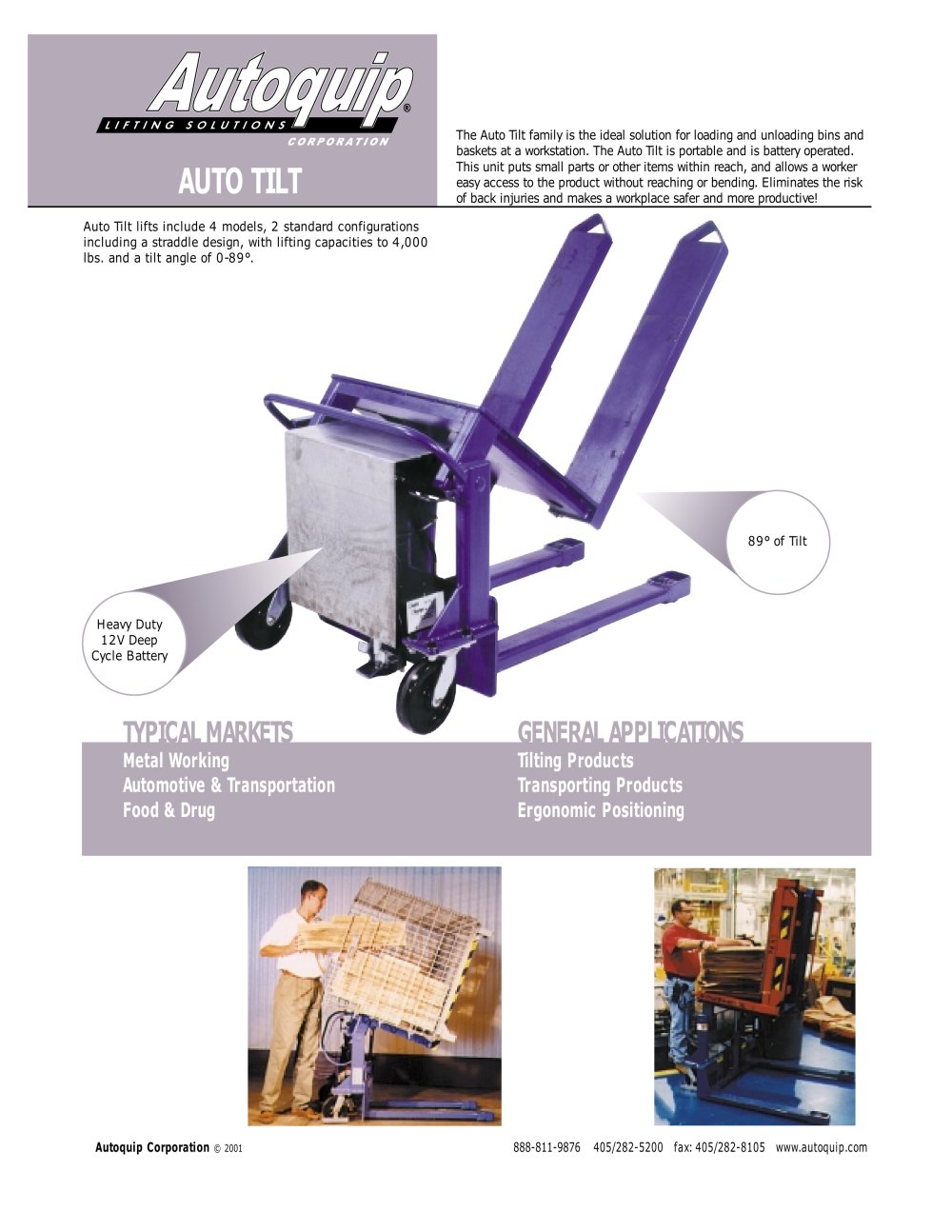

Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com The Auto Tilt family is the ideal solution for loading and unloading bins and baskets at a workstation. The Auto Tilt is portable and is battery operated. This unit puts small parts or other items within reach, and allows a worker easy access to the product without reaching or bending. Eliminates the risk of back injuries and makes a workplace safer and more productive! Auto Tilt lifts include 4 models, 2 standard configurations including a straddle design, with lifting capacities to 4,000 lbs. and a tilt angle of 0-89°. AUTO TILT TYPICAL MARKETS Metal Working Automotive & Transportation Food & Drug GENERAL APPLICATIONS Tilting Products Transporting Products Ergonomic Positioning 89° of Tilt Heavy Duty 12V Deep Cycle Battery

Open the catalog to page 1

AUTO-TILT™ KEY FEATURES · Infinitely angled from 0 to 89 degrees · Forks 42" long, 7" wide · Fork outside dimension is 27" wide · Front wheels are 3" diameter phenolic wheels with dual ball bearings · Rear casters are 8" phenolic wheels · Forks lower to 3 1/2" · Lifetime Warranty hydraulic cylinder seals · Integrated floor lock is standard · Heavy-duty 12v deep cycle battery · Optional battery charger · High quality enamel finish · Permanent push-pull handle for easy movement BENEFITS · Allows workers to access containers without dangerous bending or reaching · Eliminates need for permanent...
