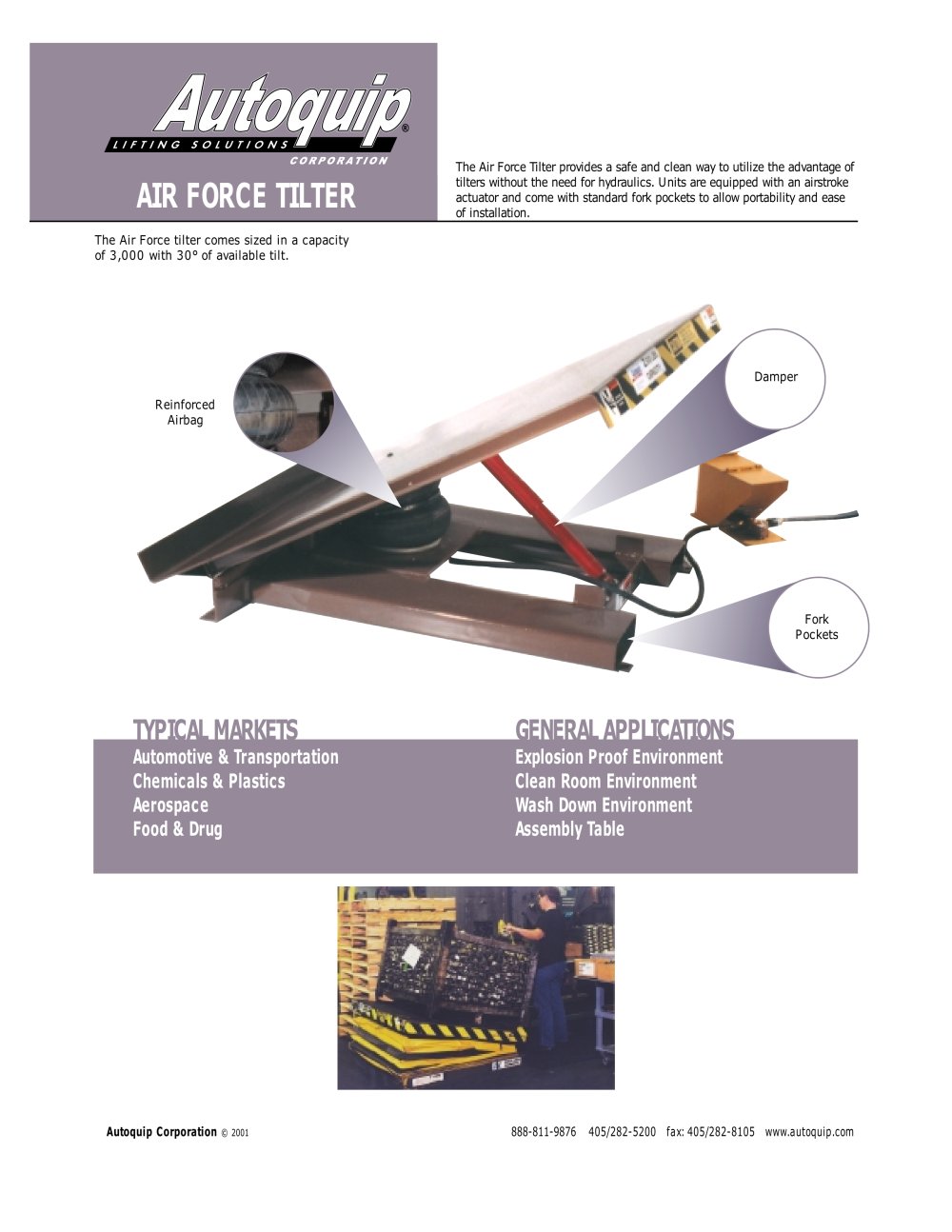

The Air Force Tilter provides a safe and clean way to utilize the advantage of tilters without the need for hydraulics. Units are equipped with an airstroke actuator and come with standard fork pockets to allow portability and ease of installation. The Air Force tilter comes sized in a capacity of 3,000 with 30° of available tilt. AIR FORCE TILTER Reinforced Airbag TYPICAL MARKETS Automotive & Transportation Chemicals & Plastics Aerospace Food & Drug GENERAL APPLICATIONS Explosion Proof Environment Clean Room Environment Wash Down Environment Assembly Table Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com Fork Pockets Damper

Open the catalog to page 1

KEY FEATURES · Rigid base – no lag down required · Portable base design incorporates built-in Pallet Jack pockets · Removable gibs for easy access · Relief valve to protect airbag from over pressure · Easy access to airbag · Foot valve standard with 6' hose (hand valve at no extra cost) · Operating pressure – 80 psi · Air damper to reduce “bounce” · Built and designed in accordance with ANSI MH29.2 BENEFITS · Requires no electricity · Clean – no hydraulics – no oily mess · Powered by existing shop air · Portable – easy to move with Fork Truck · Maintenance free · Explosion-proof...
