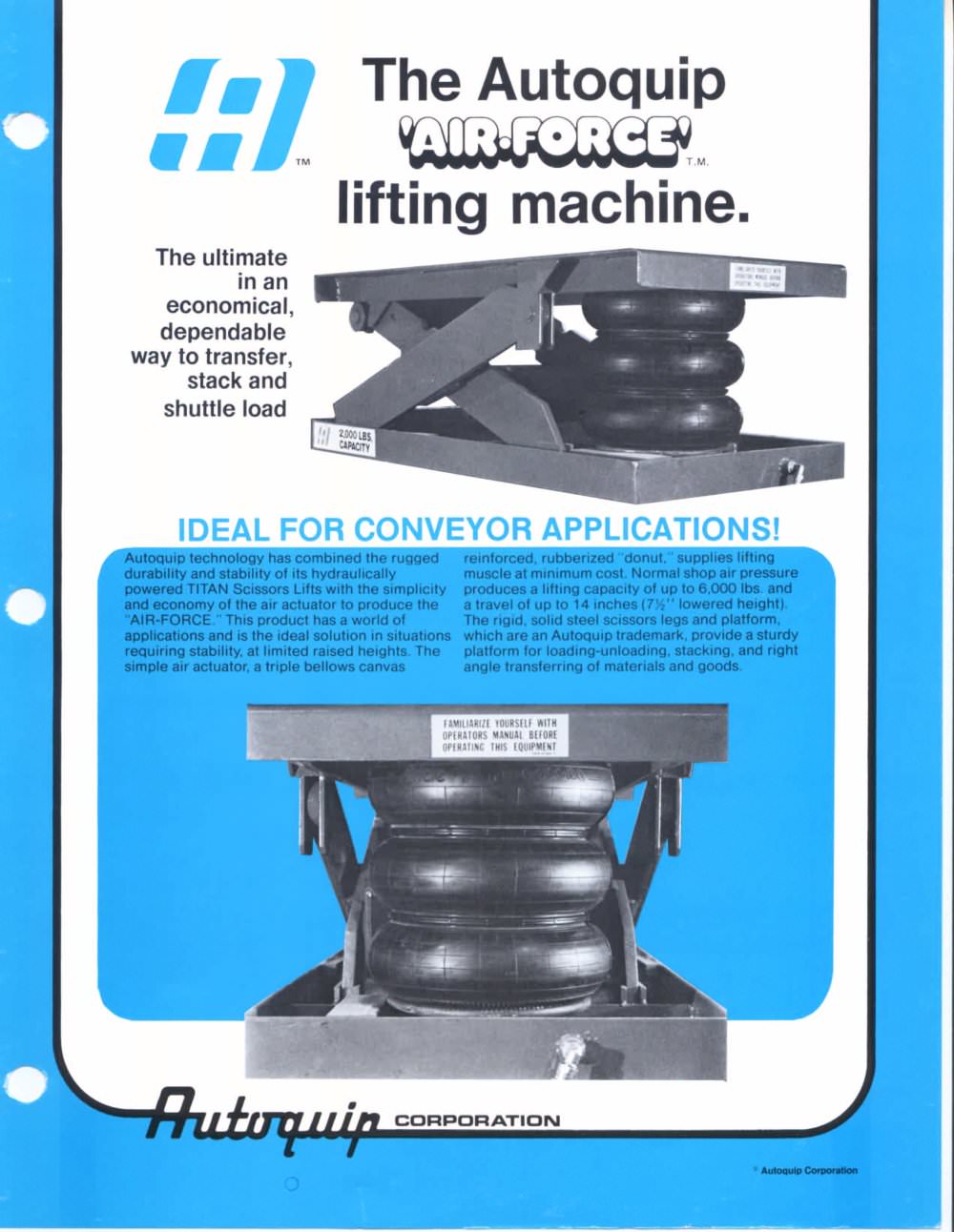

wtoquip A t.m. liftingmachine The ultimate in an economical, dependable way to transfer, stack and shuttle load IDEAL FOR CONVEYOR APPLICATIONS! toqujp technology has combine! the rugge reinforced. rubberized "donut," supplies liftin muscle at minimum cost. Normal shop air pressure produces a lifting capacity of up to 6.000 Ibs. and a travel of up to 14 inches (7Ytn lowered height) The rigid. solid steel scissors legs and platform, which are an Autoquip trademark, provide a sturdy platform for loading-unloading. stacking, and right angle transferring of materials and goods. durability and stability of its hydraulically powered TITAN Scissors Lifts with the simplicity and economy of the air actuator to produce the "AIR-FORCE." This product has a world of applications and is the idal solution in situations requiring stability, at limited raised heights. The simple air actuator. a triple bellows canvas CORPORATION Autoquip Corporation

Open the catalog to page 1

SPECIFICATIONS The Autoquip TRAVEL Upto 14-inches CAPACITY: 6.000 Ibs. LOWERED HEIGHT: 7y2-inches STD MIN PLATFORM: 24-inches x 48-mches AIR BAG 15 mchesdiameter. triple bellows AIR PRESSURE REQ D 100 PSI MAX CFM REQUIREMENTS ARE BASED ON LIFT SPEED T.M. lifting machine 4B \ t 18H 71'; ! Il O v t L_u____________iijS'i________1^1_____j 12 24 4tt DISTRIBUTED BY PRINTED IN U S.A AQAF-790 CORPORATION r/x» Hydtttuc itlf Peopie Box 1085 Gutfine. Oklahoma 73044 T╩lphone (405) 282-5200 Fax: 4052828105 CHINER
