Mini jig cylinder 3 new size

Mini jig cylinder 3 new size

Product catalog summary

Overview: The document provides detailed specifications and configurations for the Mini Cubic Cylinder Series PCB, focusing on sizes Ø6, Ø8, and Ø10. It includes information on the construction, materials, dimensions, and performance characteristics of these pneumatic cylinders.

Specifications:

Fluid: Filtered air, lubricated or non-lubricated.
Connection: M3.
Operating Pressure: 0.15 to 0.9 MPa (1.5 to 9.2 bar).
Operating Temperature: 0ºC to +60ºC.
Storage Temperature: -5ºC to +60ºC.
Standard Stroke: 5, 10, 15, 20 mm for double effect; 5, 10 mm for single effect.
Maximum Stroke: 20 mm.
Speed: 30 to 500 mm/s for double effect; 50 to 500 mm/s for single effect.

Materials:

Body: Anti-corrosion treated aluminum alloy.
Rods: Hard chrome plated XC48.
Seals: Nitrile (NBR).
Magnet: Magnetic resin.

Configurations:

Double Effect: PCBD series.
Single Effect (Rod In): PCBR series.
Single Effect (Rod Out): PCBS series.
Through Rod: PCBD with through rod configuration.

Performance:

Force Developed: Varies with pressure and size, detailed in tables for each configuration.
Mass: Provided for different strokes and configurations, with additional mass for magnetic versions.

Dimensions: Detailed dimensions are provided for each cylinder size and configuration, including threaded rod ends and mounting options.

Detectors:

Detectors such as XEZE and XRZ are available, with specifications for electronic and reed types.
Detectors are ordered separately and can be equipped with M8 connectors.

Construction: The cylinders are crimped and non-dismantlable, with detailed material specifications for each component.

Catalog excerpts

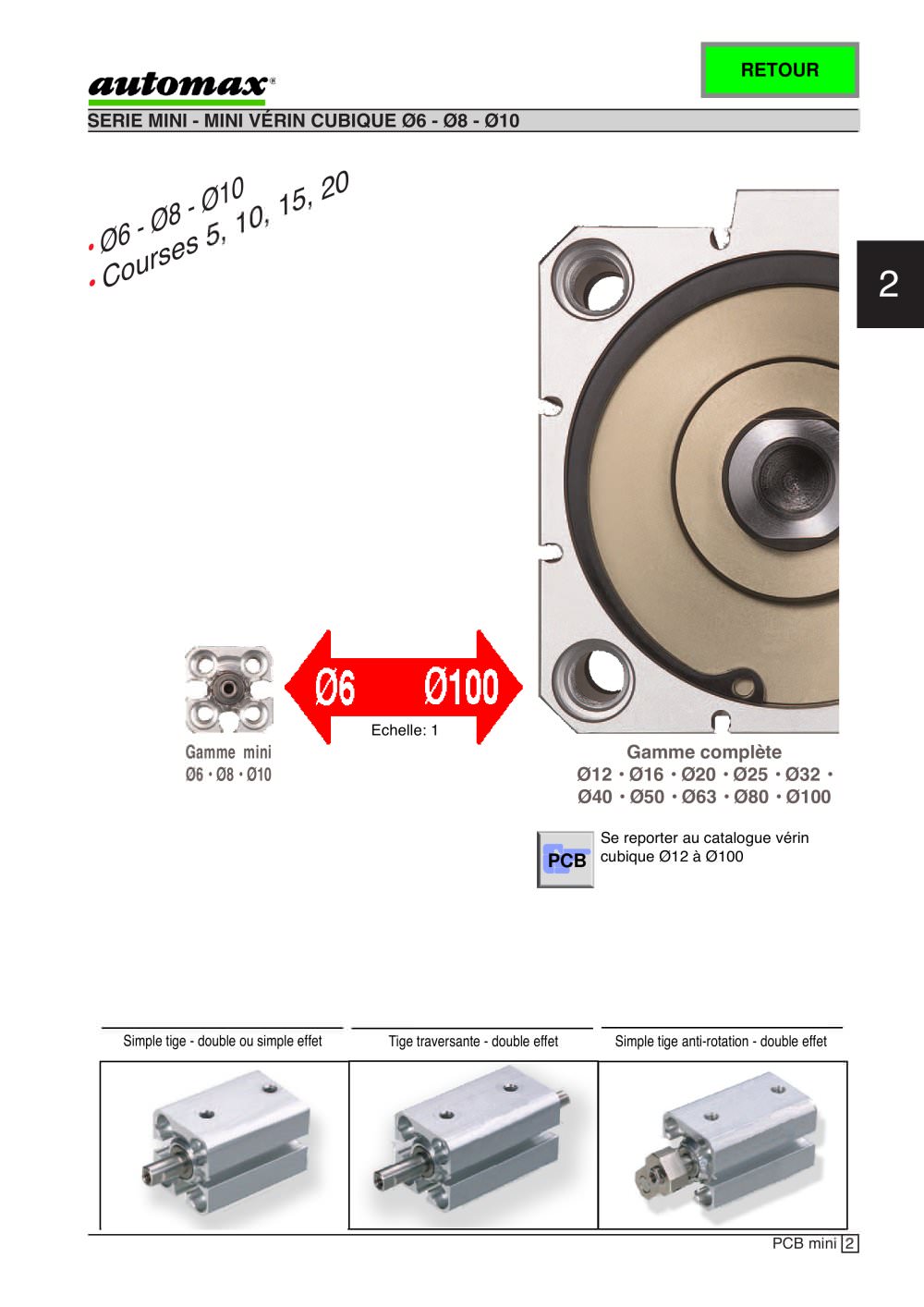

Se reporter au catalogue vةrin cubique 12 ؠ 100 Simple tige - double ou simple effet Tige traversante - double effetSimple tige anti-rotation - double effet PCB mini 2 >

Open the catalog to page 1

MONTAGE DES DɉTECTEURS ZONE DE DTECTION Le couple deserrage de la vis de blocage du dɩtecteur doit tre compris entre 0,1Nm ~ 0,2Nꕕm {1kgfcm ~ 2kgfՕcm}l: > XEZ > mm Taille 6 8 10 XY 7,21 80,3 8,31 > La zone active estcomprise entre lepoint d'enclenche- ment (ON) et le point de dclenchement (OFF). XRZ > mm Taille 6810 XY C: > Hystresiscorrespond 驠 ladistance entre le point d'enclenchement (ON) et le point de dclenchement (OFF) du sens oppos XEZ > mm Taille 6 8 10 Zone active:lHyst驩resis:C 1,8 ~ 3 1,8 ~ 3 2 ~ 3,2 0,2 Maxi XRZ > mm Taille 6 8 10 Zone active:lHystresis:C 4,5 ~ 8 4,5 ~ 8 5 ~ 9 1 Maxi...

Open the catalog to page 14

Tel. > (33) 02 54 55 38 10 Fax. > (33) 02 54 70 81 26 AUTOMAX S.A. Z.A. Rue de Champ ChardonBP:5 - 41250 MONT PRES CHAMBORD - FRANCEE-mail: [email protected] >

Open the catalog to page 15
