The SNG 770 Series is a high-security portal designed for controlled access from a free zone to a secure zone, ideal for high-security and immigration markets. It integrates seamlessly with biometric technologies and is suitable for environments like airports and office buildings. The design emphasizes transparency and surveillance, with strong glass barriers and the ASDAS "one-person-only" detection system ensuring security.

Specifications
The SNG 770 & 771 models feature full-height gates with swing doors made of brushed stainless steel and tempered glass. The gates operate via a crank-and-rod mechanism powered by an asynchronous motor. Electrical components include an AS1300 logic module for movement and security, with remote management capabilities.

Security Features
The ASDAS system uses IR cells for "one-person-only" detection, unaffected by environmental variables. It handles various scenarios (e.g., adults, children, luggage) with high performance. The mechanical design prevents unauthorized passage and vandalism, maintaining closed doors during break-in attempts.

Safety Features
The SNG ensures user safety with rounded edges, silicon rubber door strips, and free-rotating door axles. Infra-red cells detect user presence, and an emergency call button is optional. In power failures, doors open automatically, with configurations available for client needs.

Operation
The portal can operate automatically or under controlled conditions, with options for automatic or authorized opening via devices like card readers. Infra-red cells guide users, and pictograms indicate access status. The system supports uni- or bi-directional configurations.

Performance
The SNG offers rapid gate movements and high throughput (7-10 persons/minute). It features quick ASDAS processing and low false rejection rates. Dimensions vary for single, double, or multiple portals in line.

Technical Characteristics
Power supply is 230VAC, with options for 120V. The system includes a microprocessor-based control logic, asynchronous motor, and variable-frequency controller. It operates within 0° to 45°C and supports over 5000 cycles/day. Maintenance is facilitated by accessible design and corrosion-resistant materials.

Options and Customer Responsibilities
Available options include laminated doors, variable side wall height, and integration of authorization readers. Customers must ensure power supply connections and floor installation.

Catalog excerpts

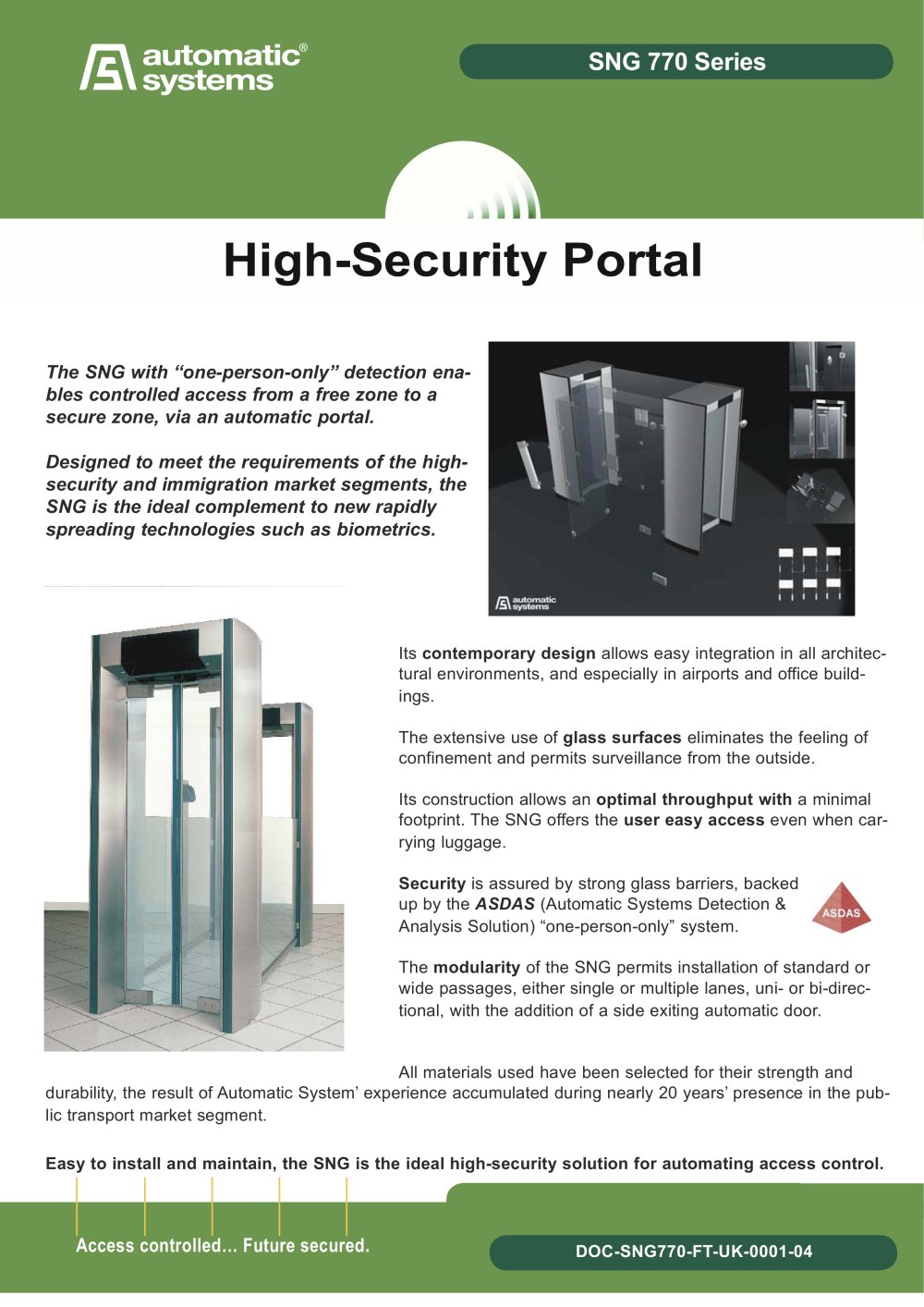

Its contemporary design allows easy integration in all architec-tural environments, and especially in airports and office build-ings.The extensive use of glass surfaces eliminates the feeling of confinement and permits surveillance from the outside.Its construction allows an optimal throughput with a minimal footprint. The SNG offers the user easy access even when car-rying luggage. Security is assured by strong glass barriers, backed up by the ASDAS (Automatic Systems Detection & Analysis Solution) one-person-onlyӔ system.The modularity of the SNG permits installation of standard or wide passages, either single or multiple lanes, uni- or bi-direc-tional, with the addition of a side exiting automatic door.All materials used have been selected for their strength and durability, the result of Automatic System experience accumulated during nearly 20 yearsҒ presence in the pub-lic transport market segment. Easy to install and maintain, the SNG is the ideal high-security solution for automating access control. >

Open the catalog to page 1

Description > The SNG 770 & 771 are made of: 2 full-height gates with swing doors, each consisting of:- a gate (1) in brushed stainless-steel (304L), comprising 2 uprights (2) and a header (3) - an obstacle (4), consisting of 2 swing doors in 12mm-thick tempered glass. These doors close in a ՓV, guaranteeing rapid opening and resistance to intrusion. The edges are equipped with silicon rubber strips (8) for the protection of users.ԕ 2 side walls (5) in 12mm-thick tempered glass. These walls can be supplied in various sizes to meet architectual and application requirements, A third door (6) can...

Open the catalog to page 2

Entryradar(inoption) ASDAS Protectionandflow management Emptyportaldetection Protectionandflowmanagement > SNGMONODIRECTIONNAL Entryradar(inoption) ASDAS Protectionandflowmanagement ASDAS Entryradar(inoption) >

Open the catalog to page 4

The SNG can be set up for automatic or controlled opening. When the SNG portal is empty and a user wishes to pass through, two opening solutions can be implemented: Automatic opening : the approach radar in the header detects the userՒs movement at con gurable distances Controlled opening : the entry gate only opens after a signal has been given by the authorization device (card reader, biometric reader, passport reader, etc.) When the user is in the portal and wishes to leave, 2 opening solutions can be implemented:Օ Automatic opening : the approach radar in the exit gate header detect the users...

Open the catalog to page 5

TECHNICAL CHARACTERISTICS DOC-SNG770-FT-UK-0001-04 > Electrical power supply: 230VAC single phase 50Hz Օ Electrical security: magneto-thermal and differential circuit breakers For each gate: - Control logic: microprocessor-based AS1300, 24VDC powered - AC Motor-reduction drive: reversible, 0.18 KW asynchronous three-phase - Variable-frequency controller for motor - Electronic torque limit Օ ASDAS computer PC/Windows XP Power consumption: at rest : 200 W maximum in movement : 400 W maximum Օ Operating temperature: 0 to 45аC (32.0 to 122.0 F.) Е Net weight: about 850 kg (1875 lbs) for SNG 770,...

Open the catalog to page 7
