Product catalog summary
Product Overview:
The document describes the 13/20 Tonne Adjustable Air Operated Twin Ram Commercial Pit Jack, available in 13 Tonne or 20 Tonne capacities. It features a 400mm lifting stroke and comes in three sizes with a wide range of adjustments for versatility.
Key Features:
  • Fast acting air pump with a unique air over oil hydraulic design for enhanced performance and cylinder lifespan.
  • Ergonomic handles for easy movement along the pit.
  • Tool tray for convenient access to tools and parts.
  • Independent operation of cylinders and transversely sliding rams for precise positioning.
  • Suitable for ATF & MOT test lanes.
  • Triple safety features: Safety Lowering Valves, anti-burst valves, and ram lock-off handles. Optional Security Struts can be added for extra safety.
  • Includes 2x 125mm Extensions, 2x Vee Head Adapters, 2x Dish Head Pansies, Rear Adapter Rack Holder, and Air Blow Gun.
  • UKCA / CE marked, conforms to EC regulations, and covered by a 5-year warranty.
Additional Safety Feature:
The optional Security Strut mechanism provides an additional safety layer and can be factory-fitted or retrofitted with minimal downtime.
Design and Reliability:
The new jack design enhances versatility with a wide adjustment range while maintaining the reliability and durability associated with Autolift jacks.
See more

Catalog excerpts

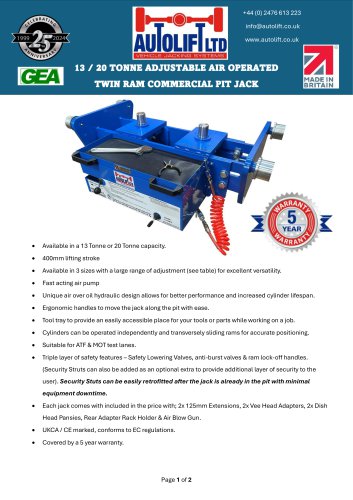

13T 20T Adjustable Twin Ram Pit Jack Specification Sheet (English)-1

13 / 20 TONNE ADJUSTABLE AIR OPERATED TWIN RAM COMMERCIAL PIT JACK Available in a 13 Tonne or 20 Tonne capacity. Available in 3 sizes with a large range of adjustment (see table) for excellent versatility. Fast acting air pump Unique air over oil hydraulic design allows for better performance and increased cylinder lifespan. Ergonomic handles to move the jack along the pit with ease. Tool tray to provide an easily accessible place for your tools or parts while working on a job. Cylinders can be operated independently and transversely sliding rams for accurate positioning. Suitable for ATF & MOT test lanes. Triple layer of safety features – Safety Lowering Valves, anti-burst valves & ram lock-off handles. (Security Struts can also be added as an optional extra to provide additional layer of security to the user). Security Stuts can be easily retrofitted after the jack is already in the pit with minimal equipment downtime. Each jack comes with included in the price with; 2x 125mm Extensions, 2x Vee Head Adapters, 2x Dish Head Pansies, Rear Adapter Rack Holder & Air Blow Gun. UKCA / CE marked, conforms to EC regulations.

 Open the catalog to page 1
13T 20T Adjustable Twin Ram Pit Jack Specification Sheet (English)-2

13 / 20 TONNE ADJUSTABLE AIR OPERATED TWIN RAM COMMERCIAL PIT JACK Our new jack design has a significant increase its versatility by providing a wide range of adjustment, while maintaining the long-term reliability & durability that Autolift jacks have become known for. Our optional extra Security Strut mechanism offers an additional layer of safety to the user. The jack can be fitted with it directly from our factory or can be easily retrofitted with the jack in the pit.

 Open the catalog to page 2
