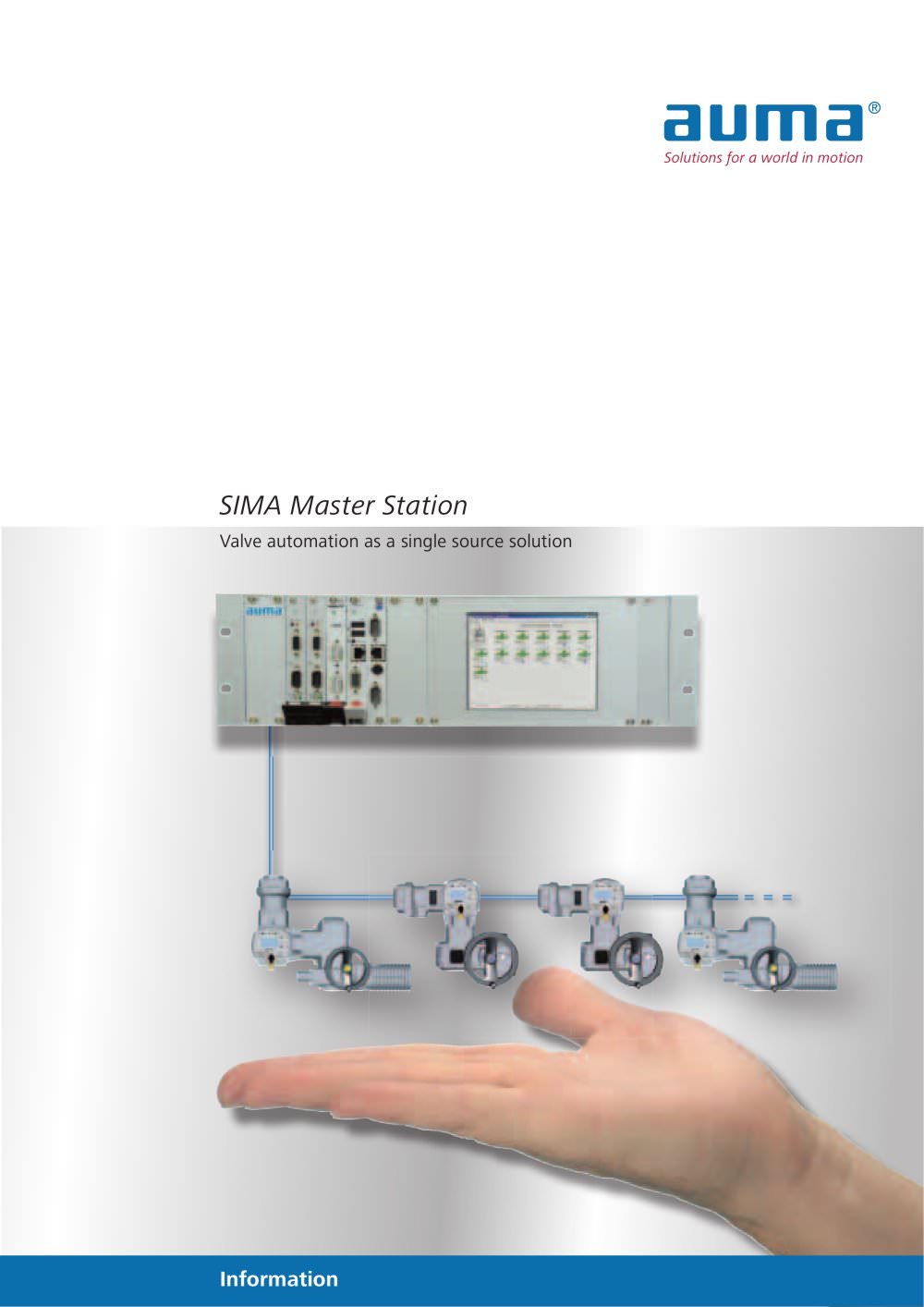

Information SIMA Master Station Valve automation as a single source solution

2 | Today, process automation requires dual knowledge: On the one hand, special knowledge to allow development and manufacture of individual components with clearly defined interfaces towards the connected hardware, and on the other hand comprehensive knowledge to understand the process requirements and to conceive a fully operational automation architecture. AUMA possesses the expertise to manufacture actuators; furthermore, AUMA knows how to integrate actuators into an automation environment. For this, the SIMA Master Station is a significant part. SIMA as commissioning support system An actuator...

| 3 Modbus RTU (RS-232, RS-485) / Modbus TCP/IP (Ethernet) 2 x Modbus RTU / Profibus DP 2 x Modbus RTU / Profibus DP Modbus RTU (RS-232, RS-485) / 2 x Modbus TCP/IP (Ethernet) Modbus RTU (RS-232, RS-485) / Modbus TCP/IP (Ethernet) Modbus RTU Modbus RTU (RS-232, RS-485) / 2 x Modbus TCP/IP (Ethernet) Modbus RTU Modbus RTU (RS-485) 2 x Modbus RTU / Profibus DP 2 x Modbus RTU (RS-485) 2 x Modbus RTU / Profibus DP Modbus RTU (RS-485) Modbus RTU 2 x Modbus RTU (RS-485) Modbus RTU [1] [3] [5] [7] [2] [4] [6] [8] 2009-04-28

[1] [2] [3] [4] [6] [7] [5] [8] Zertifikat-Registrier-Nr. 12 100/104 4269 [1] Multi-turn actuators SA 07.1 – SA 48.1 Torques from 10 to 32,000 Nm Output speeds from 4 to 180 rpm [2] Multi-turn actuators SA/SAR with controls AUMATIC Torques from 10 to 1,000 Nm Output speeds from 4 to 180 rpm [3] Linear actuators SA/LE Combination of multi-turn actuator SA with linear thrust unit LE Thrusts from 4 kN to 217 kN Strokes up to 500 mm Linear speeds from 20 to 360 mm/min [4] Part-turn actuators SG 05.1 – SG 12.1 Torques from 100 to 1,200 Nm Operating times for 90° from 4 to 180 s [5] Part-turn actuator...
