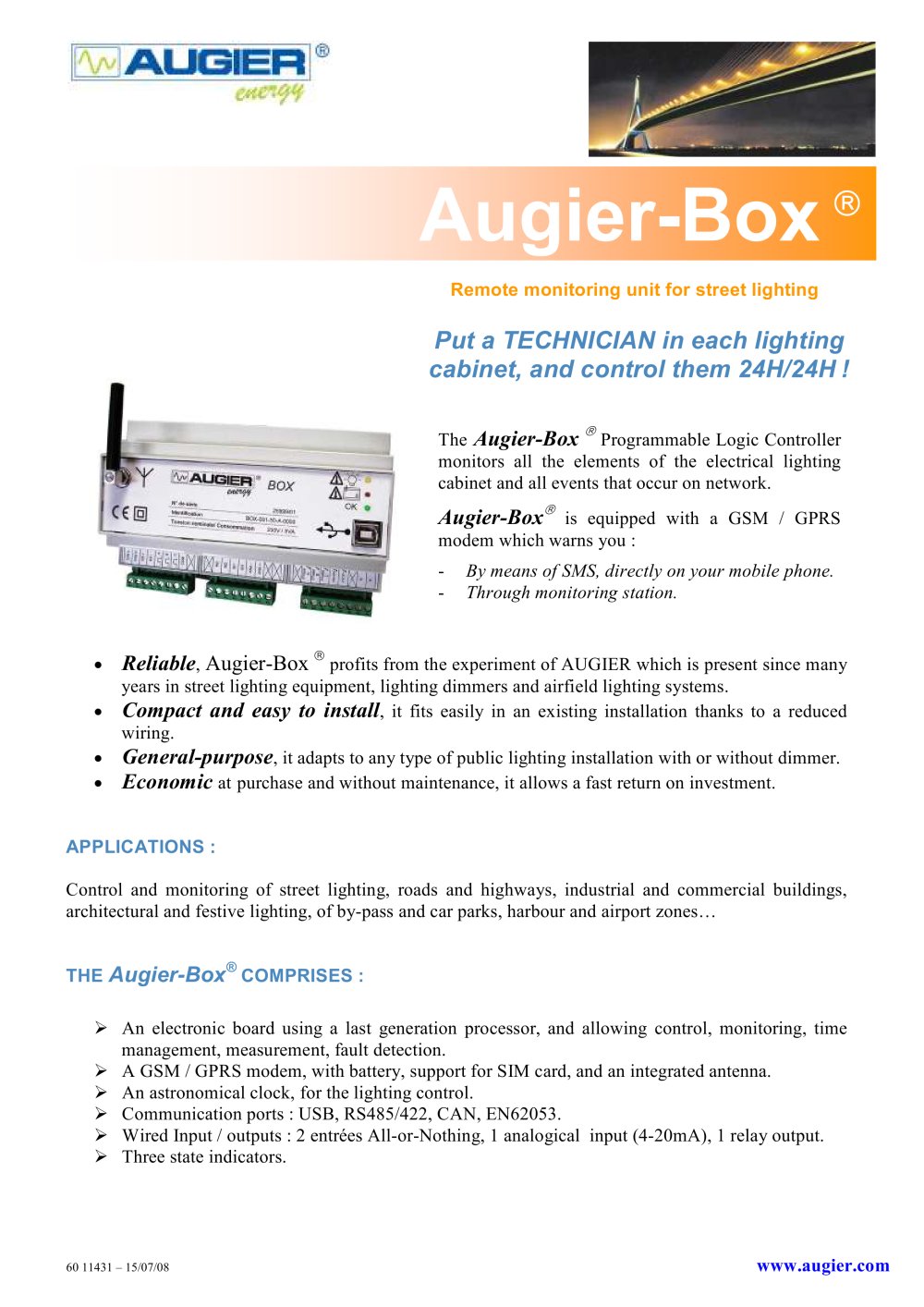

Overview: The Augier-Box® is a remote monitoring unit designed for street lighting systems. It is reliable, compact, and easy to install, making it suitable for various public lighting installations. It is cost-effective and requires no maintenance, offering a quick return on investment.

Applications: The unit is used for controlling and monitoring street lighting, roads, highways, industrial and commercial buildings, architectural and festive lighting, bypasses, car parks, and airport zones.

Components: The Augier-Box® includes an electronic board with a modern processor, a GSM/GPRS modem with a battery and SIM card support, an astronomical clock, communication ports (USB, RS485/422, CAN, EN62053), and wired inputs/outputs.

Functionalities: It monitors and controls lighting elements, measures consumption, detects faults, and communicates alarms via SMS. It features an astronomical clock for lighting control and supports various communication buses for connectivity.

Communications: Each unit has a unique identity and can communicate with standby personnel via SMS and with monitoring systems via GSM Data/GPRS. It supports extensions through CAN, RS485, and EN62053 links.

Dimensions: The unit is a standard 9-unit DIN size, with additional units required for specific measurements.

Control Parameters: The unit can be configured without live voltage for safety. It features a simple user interface with indicators for operational status.

Electrical Characteristics: The unit operates on a 230V power supply, with various input and output specifications detailed for connectivity and communication.

Mechanical Characteristics: The unit is protected to IP 20 standards, mounts on a DIN rail, and operates within specified temperature and humidity ranges.
