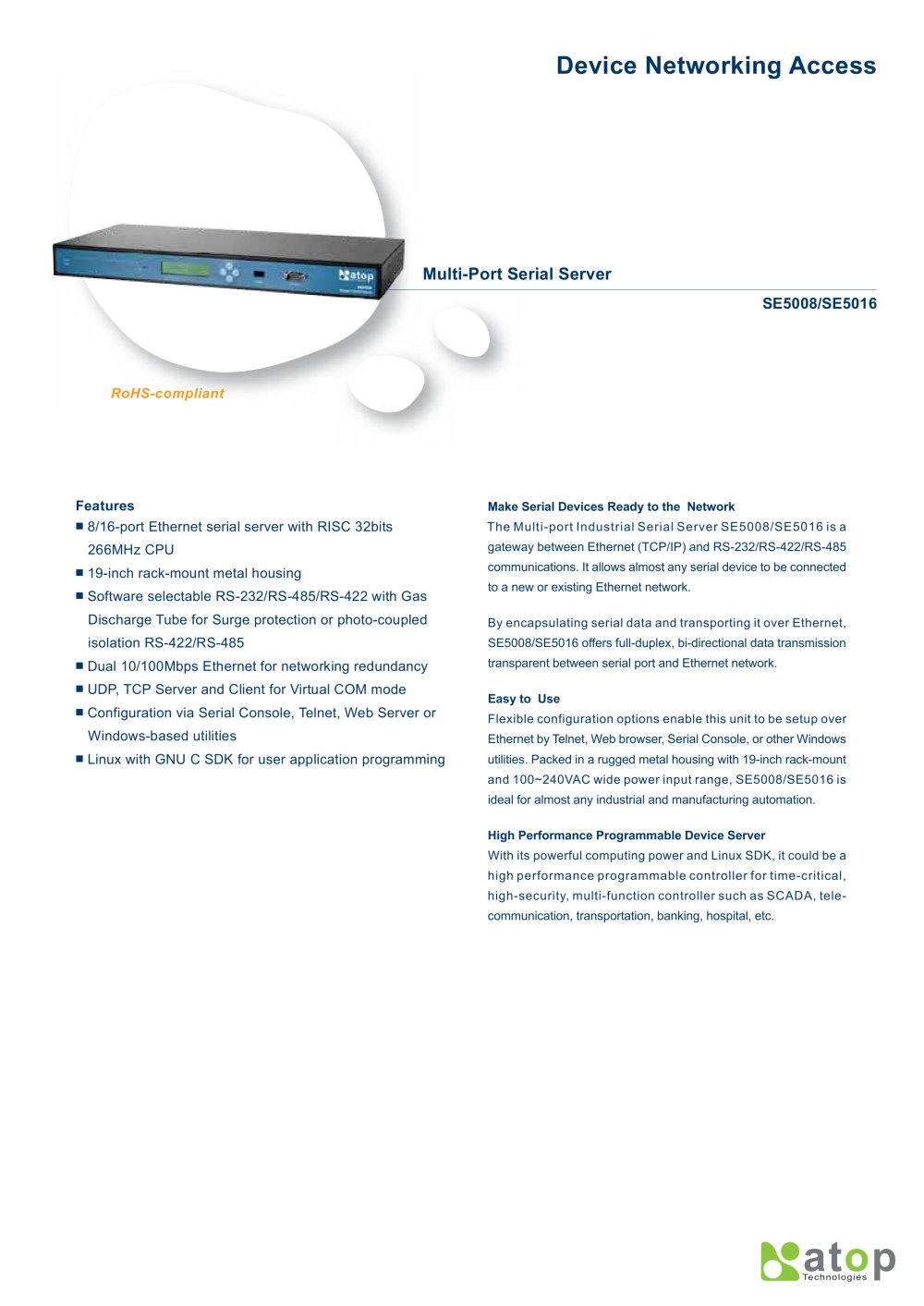

Multi-port Serial Server- SE5016

Product catalog summary

Overview: The SE5008/SE5016 is a multi-port serial server designed for industrial and manufacturing automation. It serves as a gateway between Ethernet (TCP/IP) and RS-232/RS-422/RS-485 communications, enabling serial devices to connect to Ethernet networks.

Key Features:

8/16-port Ethernet serial server with a 32-bit 266MHz RISC CPU.
19-inch rack-mount metal housing for durability.
Software selectable RS-232/RS-485/RS-422 with surge protection or photo-coupled isolation.
Dual 10/100Mbps Ethernet for networking redundancy.
Supports UDP, TCP Server, and Client for Virtual COM mode.
Configuration via Serial Console, Telnet, Web Server, or Windows utilities.
Linux with GNU C SDK for user application programming.

Specifications:

CPU: 32-bit 266MHz RISC Processor with MMU.
Memory: 32 Mbytes DDR, 2+8MB Flash (2MB for Bootloader).
Network Interface: Dual 10/100Mbps Ethernet.
Network Protocols: ICMP, TCP(UDP)/IP, DHCP client, NTS, DNS, SNMP, SMTP, HTTP, Telnet.
Serial Interface: RS-232/RS-422/RS-485, software selectable.
Serial Connector: RJ-45 with built-in 2.0 KV magnetic isolation.
Power Requirement: 100~260 V with 15KV ESD protection.
Operating Temperature: 0°C to 60°C; Storage Temperature: -40°C to 85°C.
Humidity: 5%~95% non-condensing.
Dimensions: 436mm x 43.5mm x 200mm (W x H x D).

Applications: Suitable for SCADA, telecommunication, transportation, banking, hospital, and other high-security, multi-function control environments.

Package Contents:

Standard Edition includes RJ-45 to DB9 male, RJ-45 Ethernet Cross-over, RJ-45 RS232/422 Cross-over, RJ-45 RS485 loop-back, Power card, Wall Mount Kit, Quick Start Guide, Warranty Card, Product CD, and foot rubber.
