Embedded Wireless Serial Server-SW1001T

Product catalog summary

Overview: The SW1001T is an Embedded Wireless Industrial Serial Server designed to facilitate communication between TCP/IP networks via wireless and RS-232/RS-485/RS-422 serial communications. It is particularly useful in environments where cabling is difficult, allowing serial devices to connect to wireless networks.

Specifications: The device supports IEEE802.11g/b wireless standards with a maximum transmission rate of 54Mbps and a range of up to 300 meters in open areas. It includes a 32-bit 150MHz RISC processor, 32MB SDRAM, and supports various encryption methods such as WEP and WPA-PSK. The device also features a 10/100M Ethernet port for configuration and supports a range of network protocols including TCP/IP, DHCP, DNS, and SNMP.

Features: The SW1001T offers full-duplex, bi-directional data transmission and can be configured via Telnet or a web browser. It is compatible with Windows-based applications through Atop Virtual Com software, which maps remote serial servers over Ethernet or Wireless LAN. The device is RoHS compliant and includes a built-in web and Telnet server for configuration.

Applications: This server is ideal for industrial and manufacturing automation, connecting field devices to Wireless LANs. It is designed to work with PLCs, HMIs, barcode scanners, data terminals, electronic Kanbans, shop floor control systems, and pick-to-light systems.

Hardware and Connectivity: The device includes a mini-PCI slot, a reverse SMA antenna connector, and supports infrastructure and ad-hoc network topologies. It features a 3.3V TTL interface and supports baud rates from 1200bps to 921.6Kbps.

Environmental and Mechanical Specifications: The SW1001T operates within a temperature range of 0 to 60°C and can be stored between -20 to 85°C. It meets EMC standards FCC Class A and CE Class A.

Package and Accessories: The package includes a core module, EVM module, power adapter, antenna, and cables. Optional accessories include a 5.5dBi antenna with an SMA connector.

Catalog excerpts

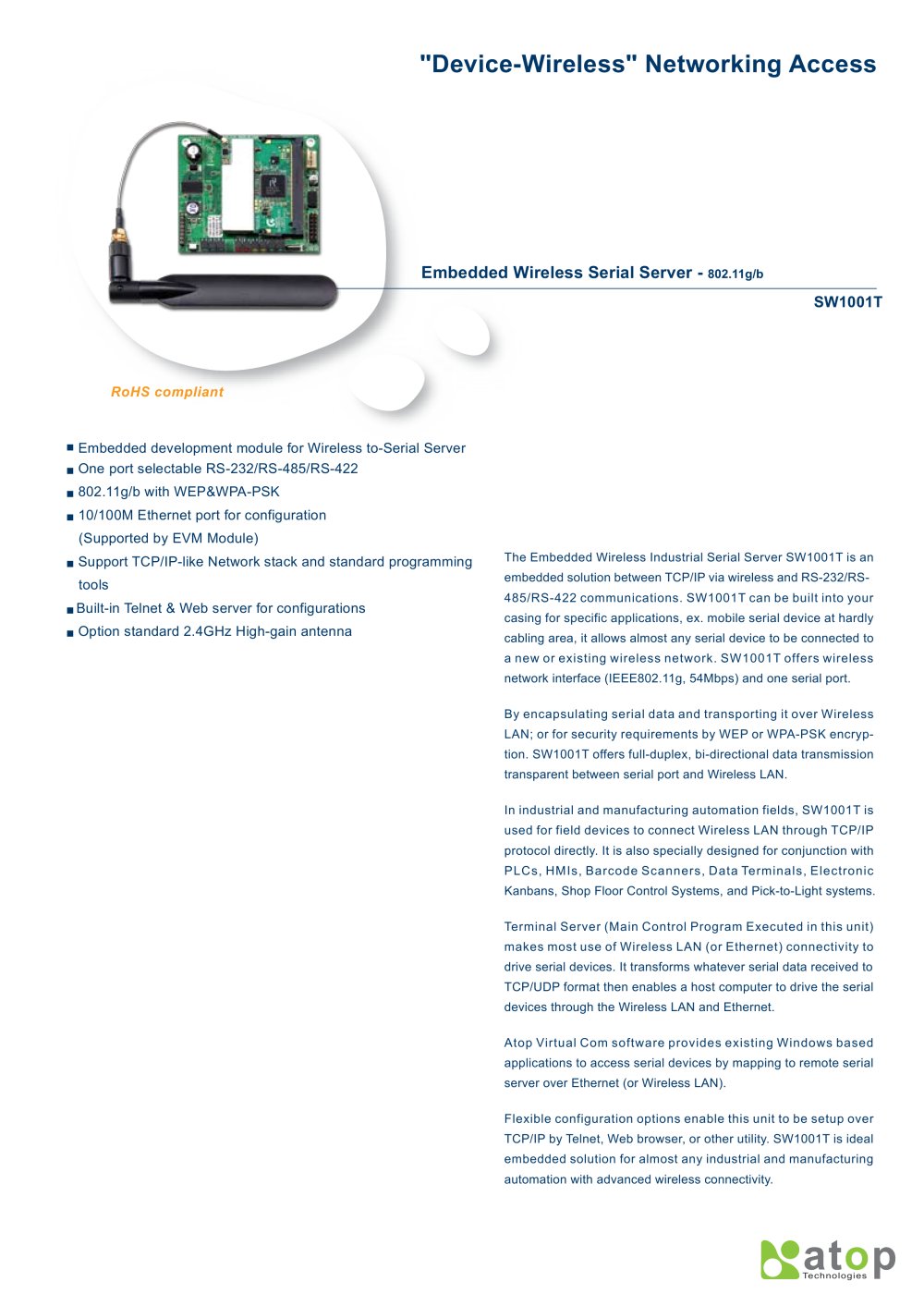

Embedded Wireless Serial Server-SW1001T -1

RoHS compliant > Ŝ Embedded development module for Wireless to-Serial Server > Ŝ! One port selectable RS-232/RS-485/RS-422 > Ŝ 802.11g/b with WEP&WPA-PSK > Ŝ 10/100M Ethernet port for configuration (Supported by EVM Module) > Ŝ Support TCP/IP-like Network stack and standard programming tools > The Embedded Wireless Industrial Serial Server SW1001T is an embedded solution between TCP/IP via wireless and RS-232/RS- 485/RS-422 communications. SW1001T can be built into your casing for specific applications, ex. mobile serial device at hardly cabling area, it allows almost any serial device to be connected to a new or existing wireless network. SW1001T offers wireless network interface (IEEE802.11g, 54Mbps) and one serial port.By encapsulating serial data and transporting it over Wireless LAN; or for security requirements by WEP or WPA-PSK encryp- tion. SW1001T offers full-duplex, bi-directional data transmission transparent between serial port and Wireless LAN.In industrial and manufacturing automation fields, SW1001T is used for field devices to connect Wireless LAN through TCP/IP protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light systems.Terminal Server (Main Control Program Executed in this unit) makes most use of Wireless LAN (or Ethernet) connectivity to drive serial devices. It transforms whatever serial data received to TCP/UDP format then enables a host computer to drive the serial devices through the Wireless LAN and Ethernet.Atop Virtual Com software provides existing Windows based applications to access serial devices by mapping to remote serial server over Ethernet (or Wireless LAN). Flexible configuration options enable this unit to be setup over TCP/IP by Telnet, Web browser, or other utility. SW1001T is ideal embedded solution for almost any industrial and manufacturing automation with advanced wireless connectivity. Ŝ Built-in Telnet & Web server for configurations > Ŝ Option standard 2.4GHz High-gain antenna > Technologies size="-2">

Open the catalog to page 1
