Biometrics (Fingerprint Sensor)
20Pages

{{requestButtons}}

Catalog excerpts

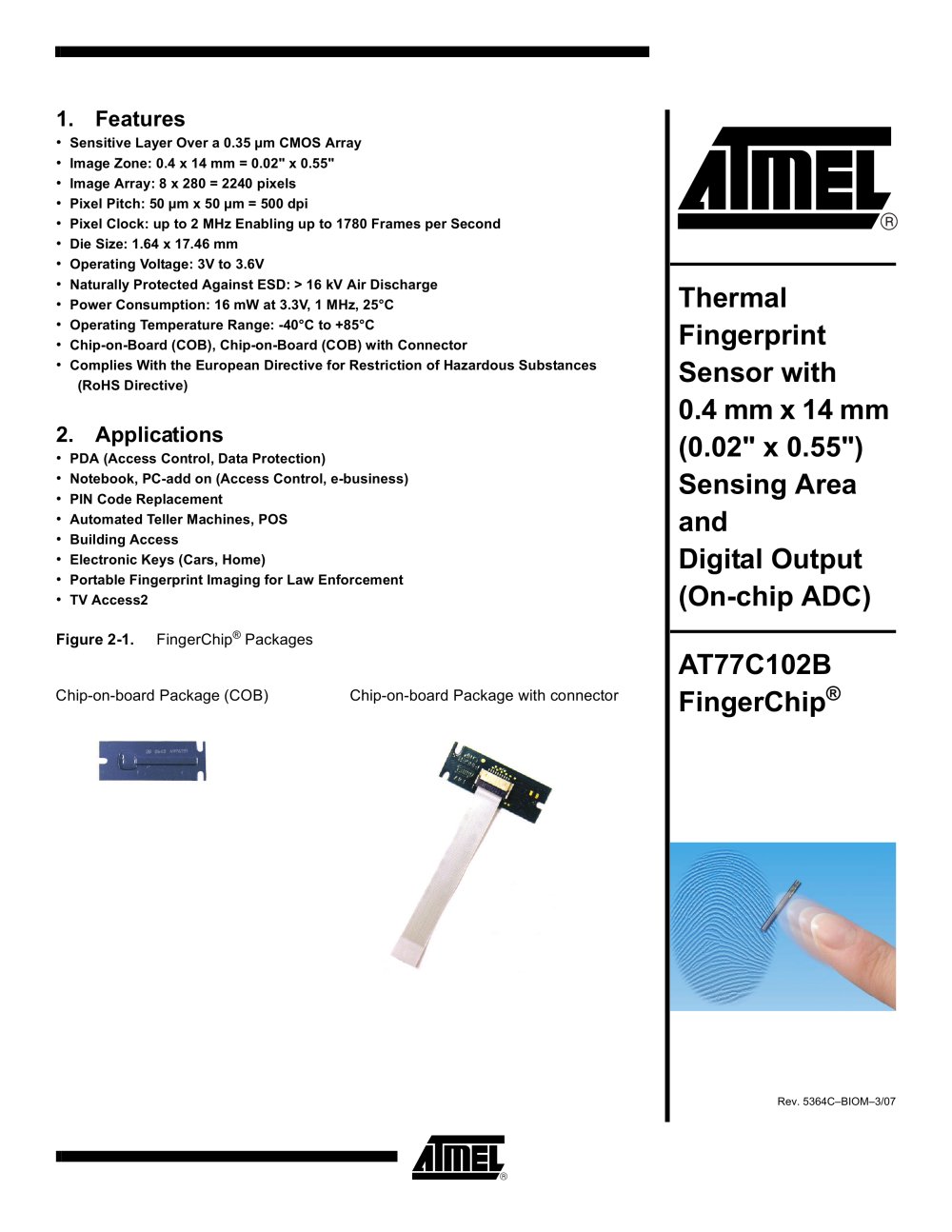

Biometrics (Fingerprint Sensor) - 1

> Sensitive Layer Over a 0.35 m CMOS Array Օ > Image Zone: 0.4 x 14 mm = 0.02" x 0.55" > Image Array: 8 x 280 = 2240 pixels Օ > Pixel Pitch: 50 m x 50 m = 500 dpi > Pixel Clock: up to 2 MHz Enabling up to 1780 Frames per Second Օ > Die Size: 1.64 x 17.46 mm > Operating Voltage: 3V to 3.6V Օ > Naturally Protected Against ESD: > 16 kV Air Discharge > Operating Temperature Range: -40հC to +85C Е > Chip-on-Board (COB), Chip-on-Board (COB) with Connector > Complies With the European Directive for Restriction of Hazardous Substances (RoHS Directive) Օ > PDA (Access Control, Data Protection) > Notebook, PC-add on (Access Control, e-business) Օ > PIN Code Replacement > Automated Teller Machines, POS Օ > Building Access > Electronic Keys (Cars, Home) Օ > Portable Fingerprint Imaging for Law Enforcement > TV Access2 Figure 2-1. FingerChip > ծ PackagesChip-on-board Package (COB)Chip-on-board Package with connector >

Open the catalog to page 1
Biometrics (Fingerprint Sensor) - 4

Figure 2-2. COB with Flex > (1) Flex with metallizations up Flex with metallizations down Figure 2-3. Flex Output Side > Flex Output(FingerChip Connector Side)Metallizations Up

Open the catalog to page 4
Biometrics (Fingerprint Sensor) - 6

ParameterMin ValueStandard MethodESD On pins. HBM (Human Body Model) CMOS I/O2 kVMIL-STD-883 - method 3015.7On die surface (Zapgun) Air discharge Number of cycles without lubricant multiply by an estimated factor of 20 for correlation with a real finger200 000MIL E 12397B 16 kV NF EN 6100-4-2 Mechanical Abrasion Chemical Resistance Cleaning agent, acid, grease, alcohol, diluted acetone4 hoursInternal method > Explanation Of Test Levels I 100% production tested at +25ѰCII 100% production tested at +25C, and sample tested at specified temperatures (AC testing done on sample) III Sample tested...

Open the catalog to page 6
Biometrics (Fingerprint Sensor) - 7

ParameterSymbolTest LevelMinTypMaxUnitPower Requirements Positive supply voltageV > CC 3.03.33.6VActive current on V > CC pin, 1 MHz Current on V IIV5475mAmAPower dissipation on V > CC CC pin, in static mode C > load = 0 pFI > CC C IIV16132518mWmWCurrent on V > CC load = 0P > CC in NAP modeI > CCNAP I10A Analog Output Voltage rangeV > AVx IV02.9V Digital Inputs Logic compatibilityCMOSLogic Г0 voltageV > IL I00.8VLogic ԓ1 voltageV > IH I2.3VCCVLogic ԓ0 currentI > IL I-100ALogic ԓ1currentI > IH I010ATPE logic ԓ0 voltageI > IL TPE1-100ATPE logic ԓ1 voltageI > IH TPE10300A Digital Outputs Logic...

Open the catalog to page 7
Biometrics (Fingerprint Sensor) - 8

. Table 3-7. Switching Performances The following characteristics are applicable to the operating temperature -40 C Ta +85 C Typical conditions are: nominal voltage; T > amb = 25 C; F > PCLK = 1 MHz; Duty cycle = 50% C > load 120 pF on digital and analog outputs unless otherwise specified > ParameterSymbolTest LevelMinTypMaxUnit Clock frequencyf PCLK I0.512MHzClock pulse width (high)t HCLK I250nsClock pulse width (low)t LCLK I250nsClock setup time (high)/reset falling edget Setup I0nsNo data changet NOOE IV100nsReset pulse width hight HRST IV50ns Table 3-8. 3.3V 10% Power Supply >...

Open the catalog to page 8
Biometrics (Fingerprint Sensor) - 10

PCLKRSTClockResetColumn selection4-bit ACKNDe0-3Do0-3 Line selOddEven 4-bitADC 44 18 8LatchesChiptemperaturesensor 8 lines of 280 columns of pixels Amp 2240 81 dummy column ADC Chip temperaturestabilization Outputenable AnalogoutputOEAVE AVOTPETPP >

Open the catalog to page 10
Biometrics (Fingerprint Sensor) - 11

1 2 3 44-bit Column selection Line selOddEven 4-bitADC 44 De0-3Do0-3 8latchesChiptemperaturesensor 8 lines of 280 columns of pixels Amp 81 dummy column ADC >

Open the catalog to page 11
Biometrics (Fingerprint Sensor) - 12

A frame consists of 280 true columns plus one dummy column of eight pixels. As two pixels are output at a time, a system must send 281 x 4 = 1124 clock pulses to read one frame.Reset must be low when reading the frames. > The clock is taken into account on its falling edge and data is output on its rising edge.For each clock pulse, after the start sequence, a new byte is output on the Do0-3 and De0-3 pins. This byte contains two pixels: 4-bit on Do0-3 (odd pixels), 4-bit on De0-3 (even pixels).To output the data, the output enable (OE) pin must be low. When OE is high, the Do0-3 and De0-3...

Open the catalog to page 12
Biometrics (Fingerprint Sensor) - 15

Figure 3-11. Nap ModeIn nap mode, all internal transistors are in shut mode. Only leakage current is drained in the power supply, generally less than the tested value. > Nap mode NapClock PCLKReset RST When the clock is stopped (set to 1) and the reset is low (set to 0), the devices analog sections drain some current, whereas, if the outputs are connected to a standard CMOS input, the digital section does not consume any current (no current is drained in the I/O). In this case the typical current value is 5 mA. This current does not depend on the voltage (it is almost the same from 3 to...

Open the catalog to page 15
Biometrics (Fingerprint Sensor) - 16

0.2 A 1 4 B1.5 2.33 ױ0.51.64+0.07-0.01 5.90 9 0.3max0.25.20 0.2 A At 0.4 he i gh from B ref. 0.82 ѱ0.50max2.95 0.50 m i n 26.6 ѱ0.3SIDE VIEWSCALE 10/10.740.06 TOP VIEWSCALE 10/10.89 ѱ0.30.32 i ll max 0.820.18max.Dam and F >

Open the catalog to page 16
Biometrics (Fingerprint Sensor) - 17

Figure 4-3. Product Reference: AT77C102B-CB02YV > 4.1.1Electrical Disturbances When looking at the fingerchip device from the top with the glob top to the right, the right edge must never be in contact with customer casing or any component to avoid electrical disturbances. Figure 4-4. Epoxy Overflow Maximum epoxy overflow width: 0.55 mm on the die edge.Maximum epoxy overflow thickness: 0.33 mm. > AA Section 0.55 0.33 FingerchipEpoxy Glue Overflow Note:Refer to Figure 4-1 on page 16. 17 > 5364CBIOM֖3/07 size="-4">

Open the catalog to page 17
Biometrics (Fingerprint Sensor) - 18

AT77C 102B- Atmel pref Y RoHS compl V i xTemperature rangeV: -40 F i ngerCh i p fam i lyDev Qual i ty level:ח : standard i ce type PackageCB01: Ch i p On Board (COB)CB02: COB w i th connector CBXX > o C to +85 > o C i ant >

Open the catalog to page 18
Biometrics (Fingerprint Sensor) - 19

Doc. Rev.DateComments 5364C3/2007Equivalent resistance on TPP pin ranges reduced page 6 table 3.55364B1/2007Connector change in production for CB02: FH18 to FH23.p3 & p17 fig 4-3: Connector reference & Mechanical data plan for CB02 updated.5364AInitial Document Release >

Open the catalog to page 19
Biometrics (Fingerprint Sensor) - 20

2325 Orchard ParkwaySan Jose, CA 95131, USATel: 1(408) 441-0311Fax: 1(408) 487-2600 > 2325 Orchard ParkwaySan Jose, CA 95131, USATel: 1(408) 441-0311Fax: 1(408) 436-4314 Theresienstrasse 2Postfach 353574025 Heilbronn, GermanyTel: (49) 71-31-67-0Fax: (49) 71-31-67-23401150 East Cheyenne Mtn. Blvd.Colorado Springs, CO 80906, USA Tel: 1(719) 576-3300Fax: 1(719) 540-1759 > Avenue de RochepleineBP 12338521 Saint-Egreve Cedex, FranceTel: (33) 4-76-58-47-50 Fax: (33) 4-76-58-47-60 > Room 1219Chinachem Golden Plaza77 Mody Road Tsimshatsui East KowloonHong KongTel: (852) 2721-9778 Fax: (852)...

Open the catalog to page 20
