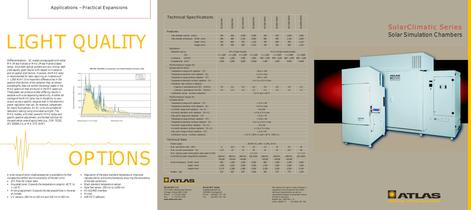

SolarClimatic Series Solar Simulation Chambers OPTIONS A wide range of tailor-made accessories is available to further increase the comfort and functionality of the test units: • IDF filter for indoor tests. • Insulated cover: Expands the temperature range to -40 °C to +120 °C. • Misting equipment: Expands the test possibilities in the area of climate. • UV sensors: 280 nm to 320 nm and 320 nm to 400 nm. • Regulation of the black standard temperature: Improves reproducibility while simultaneously ensuring the consistency of the test conditions. • Black standard temperature sensor. • SolarTest sensor: 300 nm to 3,000 nm. • RS 422/485 interface. • Printer. • SIMPATI software. Differentiation. SC models are equipped with either MH (Metal Halide) or MHG (Metal Halide Global) lamps. Since both optical systems are very similar, both yield equally good results with respect to irradiance and its spatial distribution. However, the MHG lamp is recommended for tests requiring an irradiance of > 1,000 W/m². One important difference lies in the spectral distribution of the radiation that, at certain wavelengths, does not exhibit the energy peaks in the MHG spectrum that are found in the MH spectrum. These peaks can produce widely differing results in samples with a corresponding sensitivity. Another advantage of the MHG lamp lies in the ability to vary output across a specific range as well in the electronic power regulation that can, for example, compensate for mains fluctuations. All SC units are suitable for laboratory testing using simulated sunlight. The MHG models, with their powerful MHG lamps and specific spectral adjustment, are the best solution for the application area of aging tests (e.g., DIN 75220, IEC 60068-2-5, or MIL STD 810F). LIGHT QUALITY Technical Specifications SC340 MH SC600 MH SC1000 MH SC2000 MH SC340 MHG SC600 MHG SC1000 MHG SC2000 MHG Features Test chamber volume (liters) 340 600 1,000 3,400 340 600 1,000 3,400 Test chamber dimensions Width (mm) 580 800 1,100 2,000 580 800 1,100 2,000 Depth (mm) 765 800 950 1,150 765 800 950 1,150 Height (mm) 750 950 950 1,510 750 950 950 1,510 Radiation Radiation source (W) 1 x 1,500 1 x 1,500 2 x 1,500 4 x 1,500 1 x 1,200 1 x 2,500 1 x 4,000 2 x 4,000 Irradiance (W/m²) 1,200 1,000 1,000 1,000 800 - 1,200 800 - 1,200 800 - 1,200 800 - 1,200 Exposed area (cm²) 1,600 3,000 5,600 13,600 1,600 3,300 5,600 13,600 Performance range for temperature tests Temperature range with radiation (°C) Temperature deviation with radiation (K) Temperature range without radiation (°C) Temperature deviation without radiation (K) Alteration rate, without irradiation - Heating in accordance with IEC (K/min) 3.0 4.0 4.0 2.0 3.0 4.0 4.0 2.0 - Cooling in accordance with IEC (K/min) 2.5 2.5 2.5 1.5 2.5 2.5 2.5 1.5 Calibration values (without radiation) Temperature range with radiation (°C) Temperature deviation with radiation (K) Humidity range with radiation (% r.h.) Humidity deviation with radiation (% r.h.) Dew point range with radiation (°C) Temperature range without radiation (°C) Temperature deviation without radiation (K) Humidity range without radiation (% r.h.) Humidity deviation without radiation (% r.h.) Dew point range without radiation (°C) Calibration values (without radiation) Technical Data Power supply Max. connection load (kW) 6 10.5 15 20 6.2 12 18 26 Max. current consumption (A) 14.5 23 31 43 16 22 32.5 46 Max. cooling water consumption (tap water) (m³/h) - - - 1.1 / 2.2 - - - 1.1 / 2.2 Humidifying water (supplied by customer) demineralized demineralized demineralized tap water demineralized demineralized demineralized tap water Outer dimensions Width (mm) 865 1,085 1,390 3,500 865 1,085 1,390 3,500 Depth (mm) 1,595 1,655 1,850 1,450 1,595 1,655 1,850 1,450 Height (mm) 2,175 2,380 2,380 2,500 2,180 2,550 2,550 2,700 Weight (kg) 515 625 875 1,400 565 675 775 1,550 3/N/PE AC, 400 V ±10%, 50 Hz 10 to 90 ±1 to ±3 in time +5 to +87 +23 °C / 50% r.h. and +80 °C / 50% r.h. Performance range for climate tests 10 to 80 ±0.5 in time ±0.1 to ±0.3 in time ±3 to ±5 in time +23 °C and +80 °C ±0.1 to ±0.5 in time +10 to +90 +5 to +74 MH (Metal Halide) ±1.0 in time MHG (Metal Halide Global) +15 to +80 -20 to +100 -30 to +100 ATLAS MTT GmbH Vogelsbergstraße 22 D-63589 Linsengericht Phone: +49-6051-707-140 Fax: +49-6051-707-149 We reserve the right to make changes to equipment and procedures that reflect technical improvements as well as associated changes to parameter values. Printed in Germany Bulletin No. 1965 Rev. 1.0 Id.No. 56352171 2C 05/03 VN / RK ATLAS MTT LLC 4114 North Ravenswood Avenue Chicago, Illinois 60613 USA Phone: +1-773-327-4520 Fax: +1-773-327-5787 www.atlas-mts.com

Performance Quality needs. Many valuable products are able to secure a long-term utility value due to the high quality level of materials used in their manufacture. It is for this reason that, with regard to polymer components in particular, such strict test criteria are stipulated for material safety, lightfastness and colorfastness. Design. The SolarClimatic Series instruments are state-of-the-art test units for simulating indoor and outdoor conditions. Influencing parameters such as global irradiation, temperature, and humidity can be individually programmed in user configurable programs....
