Ci5000 Weather-Ometer
16Pages

{{requestButtons}}

Catalog excerpts

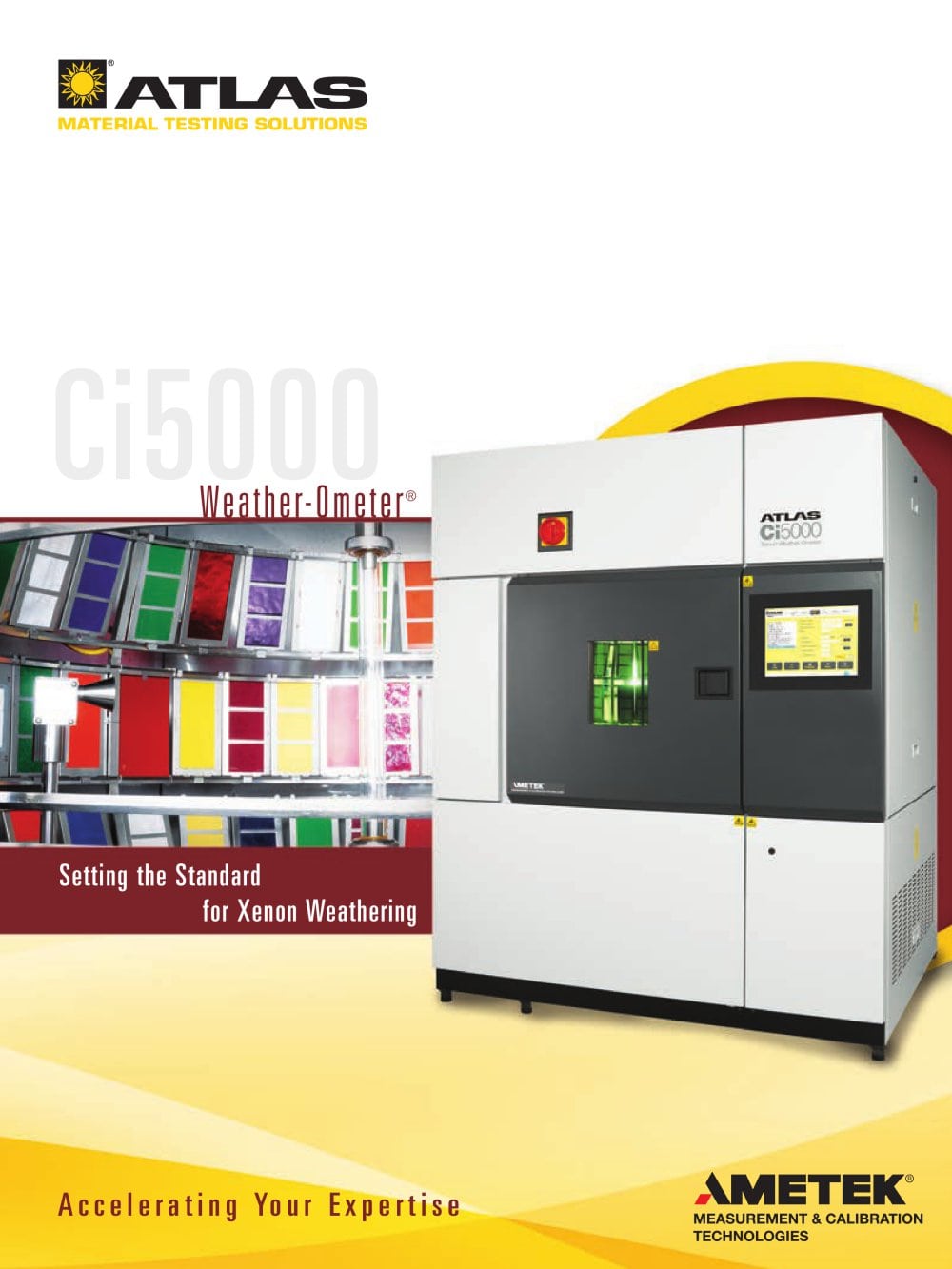

Ci5000 Weather-Ometer - 1

Setting the Standard for Xenon Weathering

Open the catalog to page 1
Ci5000 Weather-Ometer - 2

Focused On Your Goals The Atlas Vision Shaping the future of the materials testing world in partnership with our customers. The Atlas Mission Our mission is to help our customers worldwide provide the most reliable and durable product solutions through our combined experience and expertise in weathering instruments and testing, custom capabilities, consulting and global support. Atlas pioneers innovative ways for companies to test the weatherability of their products. From our industry-leading accelerated weathering equipment to the consulting services of our expert laboratory staff, our...

Open the catalog to page 2
Ci5000 Weather-Ometer - 3

Which Light is Right? Choosing the “right light” is one of the first steps in creating an accurate and reliable weathering test program. The Ci5000 simulates solar radiation using xenon lamps and advanced filter systems specifically designed for weathering. Atlas xenon lamps are developed exclusively for weathering to meet high performance criteria for their spectral power distribution, lifetime irradiance stability and lot-to-lot uniformity. The Ci5000 uses interchangeable glass filters that tailor the xenon light spectrum to match light conditions in your products’ end use environment....

Open the catalog to page 3
Ci5000 Weather-Ometer - 4

FEATURES A Higher Order of Weathering Testing Performance Through Superior Science The Ci5000 Weather-Ometer®, with its advanced digital control system, represents monumental achievement in applying digital and optical technologies in an easy-to-use laboratory weathering instrument. The Ci5000 is approved by many OEMs in the automotive, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life. The Ci5000 has been certified CE, UL, CSA, ISO and EN compliant. Rotating Sample Rack Maximizes exposure...

Open the catalog to page 4
Ci5000 Weather-Ometer - 5

Intuitive User Touch Screen Interface Increases functionality that makes the Ci5000 easy to program, monitor and calibrate. Programmable Stepped Changes in Irradiance, Temperature, Humidity and Other Test Conditions To meet any user defined test program or cycle. Advanced Digital Control Digital control with rugged, state-of-the-art embedded electronics. Additional Features Reduces test variability in chamber temperature and humidity and compensates for changes in ambient laboratory conditions. VibraSonic Dual Nozzle Humidity Control Accurately replicates humidity levels to meet stringent...

Open the catalog to page 5
Ci5000 Weather-Ometer - 6

CONTROL Enhanced Control System Enables Complex, Custom Test Programs or Simple, Preprogrammed Test Operation Easy to Understand Icons Simplify Navigation New icons make getting to the information you need fast and easy ■ ■ Two Simple-to-read Pages and On-screen Trend Plot Monitor All Critical Status Information ■ ack R Temperature: Black Panel Temperature (BPT), Black Standard Temperature (BST) or Both Chamber Temperature Monitor all critical set points and compare with real time readings for: ■ Incoming Deionized Water Quality Lamp Cooling Water Temperature Optional Temperature Panel...

Open the catalog to page 6
Ci5000 Weather-Ometer - 7

14 Preprogrammed Tests for Standard Voltage and 12 Preprogrammed Tests for Low Voltage The test list includes: Space for Several Custom Test Programs Existing test methods can be copied and edited Simplified Setup of Elective Control Features Set variance level notification for critical ■ Auto Restart After Power Interruption Multi-lingual Capability Select the desired language: Sample Management: ■ Operators can keep track of multiple tests within the same Weather-Ometer® right on the user interface. Up to 10 individual sample sets can be tracked at once, either by time or E-mail...

Open the catalog to page 7
Ci5000 Weather-Ometer - 8

LIGHT Long Arc Xenon is the Closest Simulation of UV, Visible and IR Solar Radiation Rotating Sample Rack The inclined rotating rack delivers the best exposure uniformity ■ Samples are rotated continuously during test. No need to manually rotate test samples Uniform specimen and chamber temperature, RH, irradiance and spray for even and consistent airflow over sample surfaces accommodate three dimensional samples – Small Components – Finished Products – Bottles – Automatic Selection for Irradiance Values Intelligent Controlled Irradiance (Ci) System A closed loop system automatically...

Open the catalog to page 8
Ci5000 Weather-Ometer - 9

International Standards The Ci5000 Weather-Ometer® meets or exceeds the following industry standards: This is a sample of global standards that can be met by the Ci5000. For more information on additional or specific standards, contact your local Atlas representative. Standards are subject to change without notice. This might lead to the inclusion or exclusion of certain standards.

Open the catalog to page 9
Ci5000 Weather-Ometer - 10

CLIMATE CONTROL The Ci5000 Offers Thorough Climate Control to Best Replicate Your Materials’ End Use Environment Precise Humidity Control The electronic sensor provides direct and accurate measurements of relative humidity and enables automatic control at the specimen level ■ 0% 1 * Dependent on other parameters such as lamp power, chamber temperature, ambient lab conditions, etc. Specimen and Rack Spray Custom designed precision nozzles provide uniform spraying of samples with deionized water ■ he T specimen spray applies water to the exposed surface of the sample which simulates rain to...

Open the catalog to page 10
Ci5000 Weather-Ometer - 11

TEMPERATURE CONTROL Consistent, Controlled Temperature Delivers Repeatable and Reproducible Results SmartDamper ■ alances B test chamber temperature, BPT or BST and humidity levels and compensates for changes in ambient laboratory conditions chamber air, introduces ambient air or a combination of the two Black Panel Thermometer (BPT) or Black Standard Thermometer (BST) ■ ontrols C and monitors temperature at specimen level to ensure test repeatability Control of one sensor type while simultaneously monitoring the other BPT/BST Temperature vs. Chamber Temperature (CHT) Simultaneous Control...

Open the catalog to page 11
Ci5000 Weather-Ometer - 12

OPTIONS Optional Features and Accessories to Extend the Capabilities of Your Next Weather-Ometer ® Hybrid Cooling System Improved xenon lamp cooling system dramatically reduces water consumption ■ Expanded LiquiAir options include onboard mounting * Dependent on options, ambient lab conditions, and test methods WXView ("Weather" View) Our new WXView data acquisition program allows users to archive test data or monitor conditions remotely in real time. ■ All standard test parameters such as rack temperature, chamber temperature, % RH and irradiance parameters such as lamp power, fan speed,...

Open the catalog to page 12
