Precision-racks quality 4

Product catalog summary

Overview: This document outlines the advantages, specifications, and product offerings of ATLANTA Antriebssysteme's high precision gear racks, pinions, spur gears, and servo drives. The company emphasizes its long-standing history of innovation and reliability since 1929.

Advantages:

Powerful: The gear racks have a large capacity to transmit high forces.
Precise: High precision pitch minimizes or eliminates the need for electronic compensation, with low backlash drives.
Innovative: Patent-protected measuring and assembly aids ensure flawless assembly.
Flexible: Customizable with additional mounting or slotted holes, with comprehensive measurement reports available.
Complete: Offers a full range of gear racks, pinions, spur gears, and servo drives from a single source.
Reliable: Proven ATLANTA lubrication systems ensure long product life.

Specifications:

Total pitch error: ≤ 12 µm/1000 mm
Parallelism of gearing: ≤ 15 µm
Helical and straight toothed options with modules 5, 6, 8, 10
Torques up to 40,000 Nm and feed forces up to 200,000 N

Product Details:

Module 5: Helical toothed (1800 Nm, 3600 Nm, 34500 N), Straight toothed (1600 Nm, 3200 Nm, 32000 N)
Module 6: Helical toothed (3200 Nm, 6400 Nm, 50000 N), Straight toothed (2800 Nm, 5700 Nm, 47600 N)
Module 8: Helical toothed (7800 Nm, 15600 Nm, 91600 N), Straight toothed (6800 Nm, 10200 Nm, 85000 N)
Module 10: Helical toothed (15000 Nm, 30000 Nm, 141000 N), Straight toothed (13000 Nm, 26000 Nm, 130000 N)

Other gear rack lengths and modules are available upon request. For additional details on spur gears, pinion shafts, and gear centers, refer to the ATLANTA Servo Drive System catalogue.

Contact Information: ATLANTA Antriebssysteme E. Seidenspinner GmbH & Co. KG, P.O. Box 1161, D-74301 Bietigheim-Bissingen, Phone: +49(0)71 42/7001-0, Fax: +49(0)71 42/70 01-99, Email: [email protected], Website: www.atlantagmbh.de

Catalog excerpts

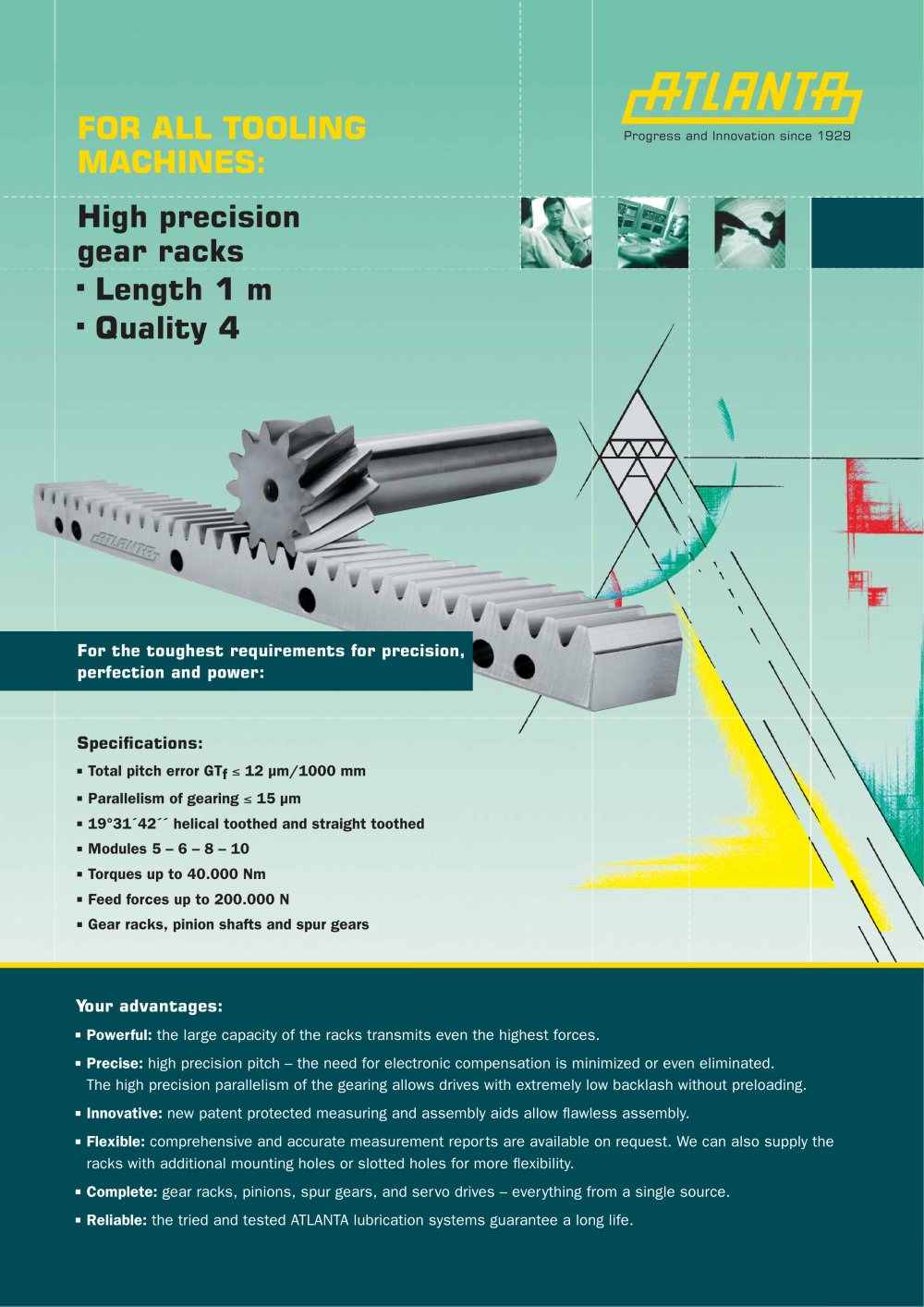

Progress and Innovation since 1929 Total pitch error GTf 12 m/1000 mm Parallelism of gearing 15 յm 1931д42Դ helical toothed and straight toothed Modules 5 6 ֖ 8 10 Torques up to 40.000 Nm Feed forces up to 200.000 N Gear racks, pinion shafts and spur gears > Powerful: the large capacity of the racks transmits even the highest forces. Precise: high precision pitch ֖ the need for electronic compensation is minimized or even eliminated. The high precision parallelism of the gearing allows drives with extremely low backlash without preloading. Innovative: new patent protected measuring and assembly aids allow fl awless assembly. Flexible: comprehensive and accurate measurement reports are available on request. We can also supply the racks with additional mounting holes or slotted holes for more fl exibility. Complete: gear racks, pinions, spur gears, and servo drives everything from a single source. Reliable: the tried and tested ATLANTA lubrication systems guarantee a long life. >

Open the catalog to page 1

Item number Z > R =20 teethZ > R =40 teeth48 10 105 Helical toothed15000 Nm30000 Nm141000 N46 10 105 Straight toothed13000 Nm26000 Nm130000 N Other gear rack lengths and other modules available on request.For spur gears, pinion shafts and determining gear centers see ATLANTA catalogue Servo Drive System. ATLANTA Antriebssysteme E. Seidenspinner GmbH & Co. KG Postfach 1161 > P.O. Box 1161D-74301 Bietigheim-BissingenFon: +49(0)7142/7001-0Fax: +49(0)7142/7001-99 E-Mail: [email protected] >

Open the catalog to page 2
