Planetary-Worm Gear Box

Planetary-Worm Gear Box

Product catalog summary

Overview: The document is a technical catalog from AtlAntA Antriebssysteme E. Seidenspinner GmbH & Co. KG, focusing on planetary-worm gear boxes designed for modern servo motors. It includes specifications, order codes, dimensions, and technical data.

Main Features:

Low-clearance gearing in four variants.
High load capacity and efficiency.
Light metal casing with robust bearings.
Fully machined casing with multiple mounting options.
Special clutch for motor connection.

Specifications:

Centre distance: 50 mm.
Ratio: Up to 2496 with varying efficiency and torque.
Output drive shafts with straight and helical tooth systems.

Order Codes and Examples:

Order codes for different configurations, including servo motor versions and connection types (ISO, clamp, key).
Examples with specific configurations and performance metrics.

Technical Data:

Tables with data on total ratio, efficiency, output torque, and backlash for different gear units.
Dimensions in millimeters for shaft diameter, length, and other parameters.

Additional Information:

Products available from stock or with short delivery times.
Technical changes to dimensions and standard program range are reserved.

Rescission and Redemption Rights: Rescission is not allowed if reasons were apparent at agreement time. Rights exist if the Orderer breaches duties or if there are creditworthiness doubts. No compensation for damages if rescission rights are exercised.

Prices and Payments: Prices in EURO, ex-works, excluding packaging and taxes. Additional costs for installation or assembly. Payments free of charges, with immediate payment if creditworthiness is doubted.

Defects of Quality: Defects must be reported immediately in writing. Defective items repaired or replaced if defect existed before risk transfer. Warranty claims do not apply for minor deviations or non-reproducible software defects.

Defective Title – Protective Rights: Deliveries free of third-party rights in delivery country. Liability for third-party claims due to protective rights infringements, provided the Orderer notifies us.

Other Compensation Claims: Claims limited to those in sections 6 and 7, except for mandatory liability cases. Compensation for breaches of cardinal duties limited to foreseeable damages typical for the contract.

Statute of Limitation: Claims expire within 12 months, except in specific cases mentioned in section 8.

Applicable Law and Venue: Governed by German law, excluding CISG. Venue at AG Besigheim or LG Heilbronn, or the Orderer’s jurisdiction.

Product Range: Includes worm gear units, bevel gear units, gear wheels, racks, thread spindles, toothed belt drives, chain drives, clutches, splined shafts, servo drive systems, worm gear motors, screw jack gearboxes, high trust linear actuators, and integrated rack and rail systems.

Catalog excerpts

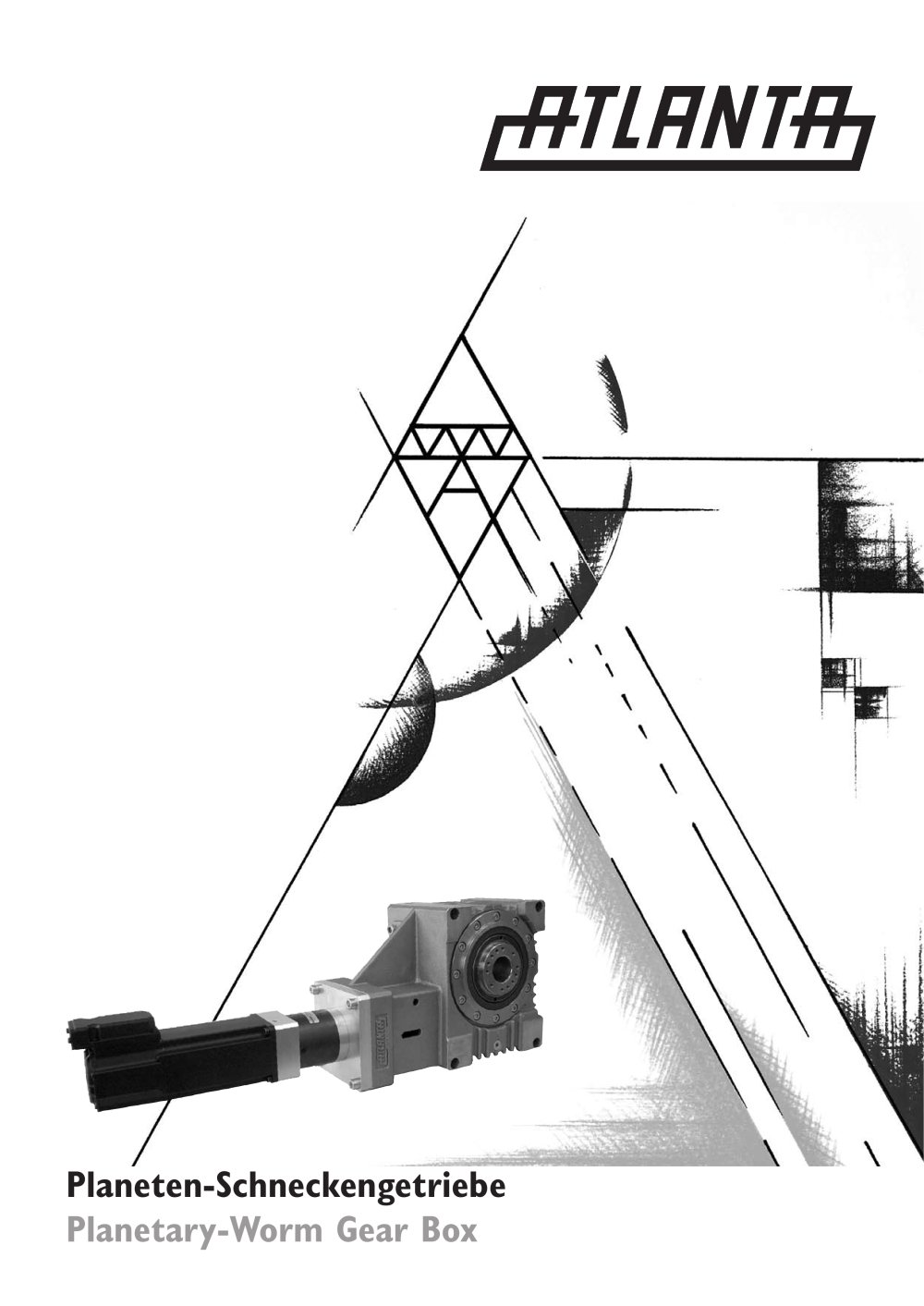

Planeten-Schneckengetriebe Planetary-Worm Gear Box >

Open the catalog to page 1

Testing, sales, standard parts > Sales, standard parts Germany > Sales, standard parts export > Sales, special parts > Sales, standard parts > Administration, sales, special parts > Nachdruck auch auszugsweise ֖ ohne unsere Genehmigung ist nicht gestattet. Die Mae und sonstige technische Angaben dieses Kata-loges sind freibleibend und f߼r uns vllig unverbindlich. Technische nderungen in den Ma感en und im Umfang unseres Normprogramms sind vorbehalten. Lieferungen erfolgen gem unseren Verkaufs- und Lieferbedingungen Ausgabe 11. Duplication 䟖 even by way of excerpts is not allowed without our express...

Open the catalog to page 3

HT ISO VerbindungHT ֖ ISO connectionPlaneten-SchneckengetriebePlanetary-worm gear boxAchsabstanda = 50 mmCentre distanceCd = 50 mmbersetzungi = 780Ratioi = 780 Bestellbeispiel Planeten-Schneckengetriebe mit Servo Motor XXXa = 50 mm; i = 780; HT ܖ ISO Verbindung 1 x 90 13 078 Planeten-Schneckengetriebe 1 x 9 xx xx xxx Flansch fr Servo Motor XXXExample for a planetary-worm gear box order with servo motor XXXcd = 50 mm; i = 780; HT 얖 ISO connection 1 x 90 13 078 Planetary-worm gear box 1 x 9 xx xx xxx Flange for the Servomotor XXX 4 > Ma֟e / Dimensions in mm 1/2007 >

Open the catalog to page 4

sind speziell fr den Einsatz mit Servo-Motoren der neuen Ge-neration entwickelt worden. Sie sind, ebenso wie alle anderen Artikel dieses Kataloges ab Lager bzw. kurzfristig lieferbar.Folgende Merkmale zeichnen Planeten-Schneckengetriebe aus: spielarme Verzahnung (4 Varianten) 압 hohe Belastungswerte Gehդuse aus Leichtmetall robuste Abtriebswellenlagerung fռr hoheZusatzkrfte Hohe 䕜bersetzungen bei gutem WirkungsgradenDas allseitig bearbeitete Gehuse mit seinen vielen Befesti-gungs- und Gewindebohrungen erlaubt die Montage in jeder beliebigen Einbaulage. Der Antrieb bzw. die Verbindung mit dem Antriebsmotor...

Open the catalog to page 5

Bestell-Nr. Gesamtber- Gesamtwir- Abtriebs- Planeten- Schnecken- Variante 1 Schnecken- Variante 2 Verdreh-Variante 1 / Variante 2 setzung bei kungsgrad moment getriebe getriebe getriebe spiel 3000 min Order-Code Total ratio at Total efficiency Output Planetary Worm Version 1 Worm Version Backlash Version 1 / Version 2 > -1 torque gear unit gear unit gear unit >

Open the catalog to page 6

3000 min Order-Code Total ratio at Total efficiency Output Planetary Worm Version 1 Worm Version Backlash Version 1 / Version 2 Bestell-Nr. Gesamtber- Gesamtwir- Abtriebs- Planeten- Schnecken- Variante 1 Schnecken- Variante 2 Verdreh- Variante 1 / Variante 2 setzung bei kungsgrad moment getriebe getriebe getriebe spiel -1 torque gear unit gear unit gear unit

Open the catalog to page 7

HP - Passfederverbindung HP - Key connection HP - Klemmverbindung HP - Clamp connection = 50 mm o 152 222 152 222 HP-Servo-Hochleistungsgetriebe mit einstellbarem Zahnspiel < 2' HP-High-performance gear units with adjustable backlash < 2' Achsabstand a Centre distance HT - ISO Verbindung HT - ISO Connection HT - Klemmverbindung HT - Clamp connection M 6 x 12 = 50 mm o 222 222 152 152 HT-Servo-Hochleistungsgetriebe mit einstellbarem Zahnspiel < 1' HT-High-performance gear units with adjustable backlash < 1' Achsabstand a Centre distance >

Open the catalog to page 8

B - Passfederverbindung B - Key connection B - Klemmverbindung B - Clamp connection = 50 mm o B-Servo-Schneckengetriebe mit einstellbarem Zahnspiel < 12' B-Servo worm gear units with adjustable backlash < 12' Achsabstand a Centre distance E - Klemmverbindung E - Clamp connection E - Passfederverbindung E - Key connection = 50 mm o E-Servo-Schneckengetriebe mit einstellbarem Zahnspiel < 6' E-Servo worm gear units with adjustable backlash < 6' Achsabstand a Centre distance >

Open the catalog to page 9

Bestell-Nr. Gesamtber- Gesamtwir- Abtriebs- Planeten- Schnecken- Variante 1 Schnecken- Variante 2 Verdreh- Variante 1 / Variante 2 setzung bei kungsgrad moment getriebe getriebe getriebe spiel 3000 min Order-Code Total ratio at Total efficiency Output Planetary Worm Version 1 Worm Version Backlash Version 1 / Version 2 > -1 torque gear unit gear unit gear unit >

Open the catalog to page 10

Open the catalog to page 11

HP - Passfederverbindung HP - Key connection HP - Klemmverbindung HP - Clamp connection = 63 mm o 270 270 185 185 HP-Servo-Hochleistungsgetriebe mit einstellbarem Zahnspiel < 2' HP-High-performance gear units with adjustable backlash < 2' Achsabstand a Centre distance HT - ISO Verbindung HT - ISO Connection HT - Klemmverbindung HT - Clamp connection = 63 mm o 270 270 185 185 HT-Servo-Hochleistungsgetriebe mit einstellbarem Zahnspiel < 1' HT-High-performance gear units with adjustable backlash < 1' Achsabstand a Centre distance >

Open the catalog to page 12

B - Passfederverbindung B - Key connection B - Klemmverbindung B - Clamp connection = 63 mm o B-Servo-Schneckengetriebe mit einstellbarem Zahnspiel < 12' B-Servo worm gear units with adjustable backlash < 12' Achsabstand a Centre distance E - Klemmverbindung E - Clamp connection E - Passfederverbindung E - Key connection = 63 mm o E-Servo-Schneckengetriebe mit einstellbarem Zahnspiel < 6' E-Servo worm gear units with adjustable backlash < 6' Achsabstand a Centre distance >

Open the catalog to page 13

Bestell-Nr. Gesamtber- Gesamtwir- Abtriebs- Planeten- Schnecken- Variante 1 Schnecken- Variante 2 Verdreh- Variante 1 / Variante 2 setzung bei kungsgrad moment getriebe getriebe getriebe spiel 3000 min Order-Code Total ratio at Total efficiency Output Planetary Worm Version 1 Worm Version Backlash Version 1 / Version 2 > -1 torque gear unit gear unit gear unit >

Open the catalog to page 14

Open the catalog to page 15
