VT 55: TPMS diagnostic tools - TPMS trigger - TPMS reader

VT 55: TPMS diagnostic tools - TPMS trigger - TPMS reader

Product catalog summary
Overview
The ATEQ VT55 OBDII is a universal TPMS (Tire Pressure Monitoring System) tool designed to activate sensors and program vehicle ECUs. It is compatible with all known TPMS sensors and includes synchronization software to stay updated with new sensors.

Main Features
  • Pocket Size: Compact and portable design.
  • Easy Operation: User-friendly interface.
  • Large Graphic Display: Features a 128 x 64 dot LCD for clear visibility.
  • ECU Reprogramming Extension: Capable of reprogramming vehicle ECUs.
  • Upgradable: Software can be updated via USB interface.

Technical Specifications
  • Frequency: LF (TX) 125 kHz continuous or modulated (OOK); RF receptor with variable frequencies.
  • Indicators: LED indicators for low battery, transmission, pass, fail, and charge status.
  • Power: Internal LI-ON battery with charger.
  • Connectivity: USB interface for configuration and upgrades.
  • Dimensions: 150 x 80 x 25 mm; Weight: 250 g.
  • Optional Accessories: Valve simulator, Bluetooth, protective holster.

Additional Information
The VT55 OBDII is equipped with advanced stream decoding technology for faster and more accurate sensor triggering and decoding. It supports high-volume testing with its rechargeable battery, making it suitable for extensive daily use.
See more

Catalog excerpts

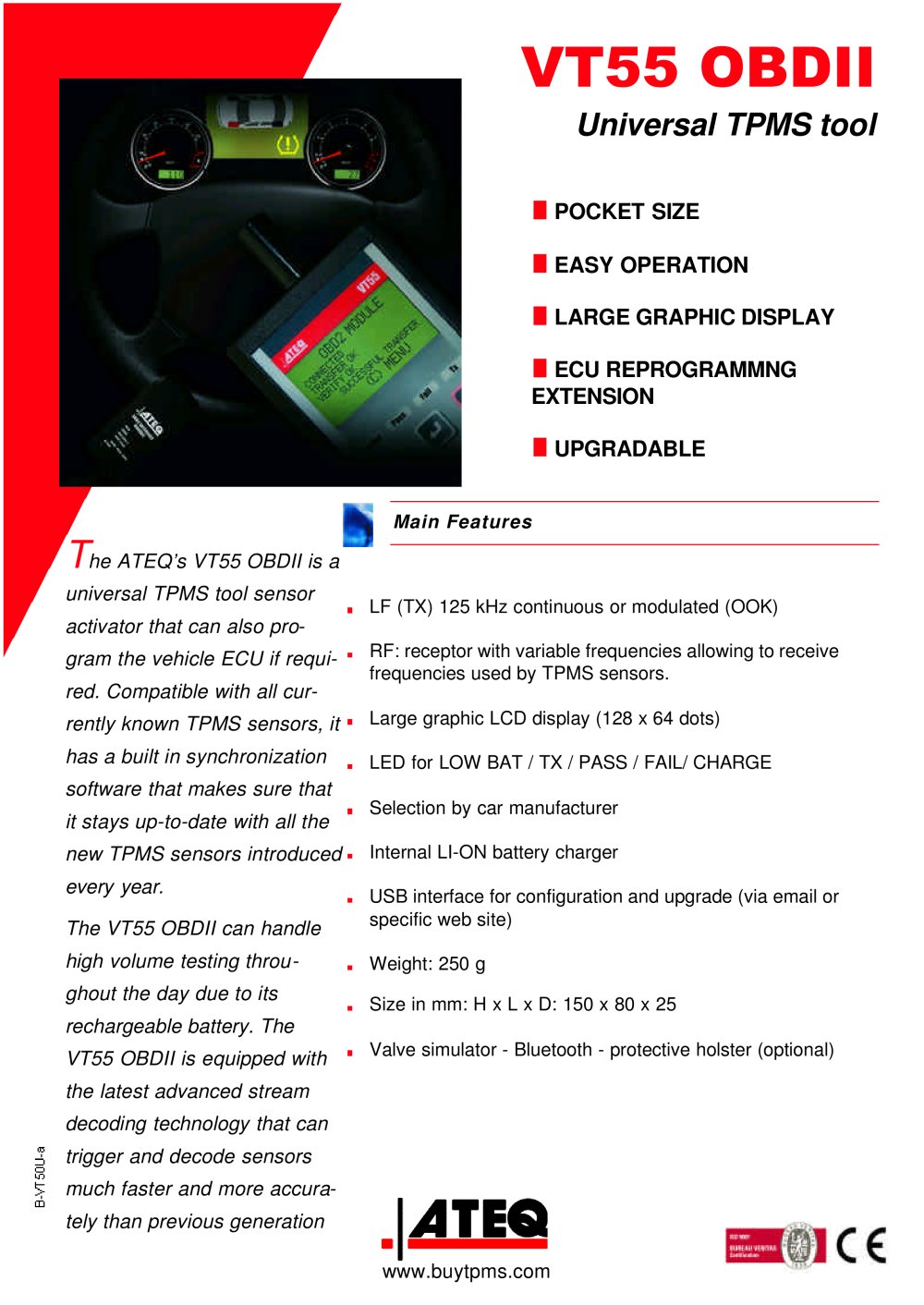

VT 55: TPMS diagnostic tools - TPMS trigger - TPMS reader-1

VT55 OBDII Universal TPMS tool The ATEQ’s VT55 OBDII is a universal TPMS tool sensor activator that can also program the vehicle ECU if required. Compatible with all currently known TPMS sensors, it has a built in synchronization software that makes sure that it stays up-to-date with all the new TPMS sensors introduced every year. The VT55 OBDII can handle high volume testing throughout the day due to its rechargeable battery. The VT55 OBDII is equipped with the latest advanced stream decoding technology that can trigger and decode sensors much faster and more accurately than previous generation Main Features POCKET SIZE EASY OPERATION LARGE GRAPHIC DISPLAY ECU REPROGRAMMNG EXTENSION UPGRADABLE www.buytpms.com LF (TX) 125 kHz continuous or modulated (OOK) RF: receptor with variable frequencies allowing to receive frequencies used by TPMS sensors. Large graphic LCD display (128 x 64 dots) LED for LOW BAT / TX / PASS / FAIL/ CHARGE Selection by car manufacturer Internal LI-ON battery charger USB interface for configuration and upgrade (via email or specific web site) Weight: 250 g Size in mm: H x L x D: 150 x 80 x 25 Valve simulator - Bluetooth - protective holster (optional)

 Open the catalog to page 1
