ATEQ
Pitot Static Adaptator tools

Pitot Static Adaptator tools

Product catalog summary

Overview: The document provides detailed information about the Custom Ps/Pt Adaptor Kit designed for testing various aircraft models, including planes, helicopters, and drones. The kit is compatible with a wide range of aircraft, such as ATR, AIRBUS, CESSNA, EMBRAER, and more.

Specifications: The kit includes Ps Single and Double port adaptors, Pt Adaptor with tube holes clamp, Ps and Pt connection cross, and Ps Tubes available in different lengths (1m, 3m, 5m, and 10m). The adaptors and tubes are color-coded for ease of use and come in a case with a rolling system for portability.

Universal Adapters: The STATIC PORT UNIVERSAL ADAPTER and PSAT UNIVERSAL Pt are highlighted as revolutionary products for testing dynamic ports (Pt) and static ports (Ps) on aircraft. These adapters are equipped with Staubli or AN4 connectors and are protected in plastic suitcases for maximum protection.

Usage Instructions: The PSAT UNIVERSAL Pt is used by placing it around the pitot tube and tightening the ring, while the PSAT UNIVERSAL Ps involves powering on the suction unit, placing the adapter on the aircraft, adjusting the Ps port, and releasing the security valve. Both adapters feature a "Remove Before Flight" ribbon for safety.

Additional Features: The kit includes adjustable vacuum pads to fit the aircraft's curving shape and an adjustable Ps suction pad for higher accuracy. The pneumatic insulation is made with a rubber tube, and the adapters can be used as caps for special tests.

Dimensions: A chart is provided with various dimensions for the Universal Pitot, indicating compatibility with different pitot diameters.

Catalog excerpts

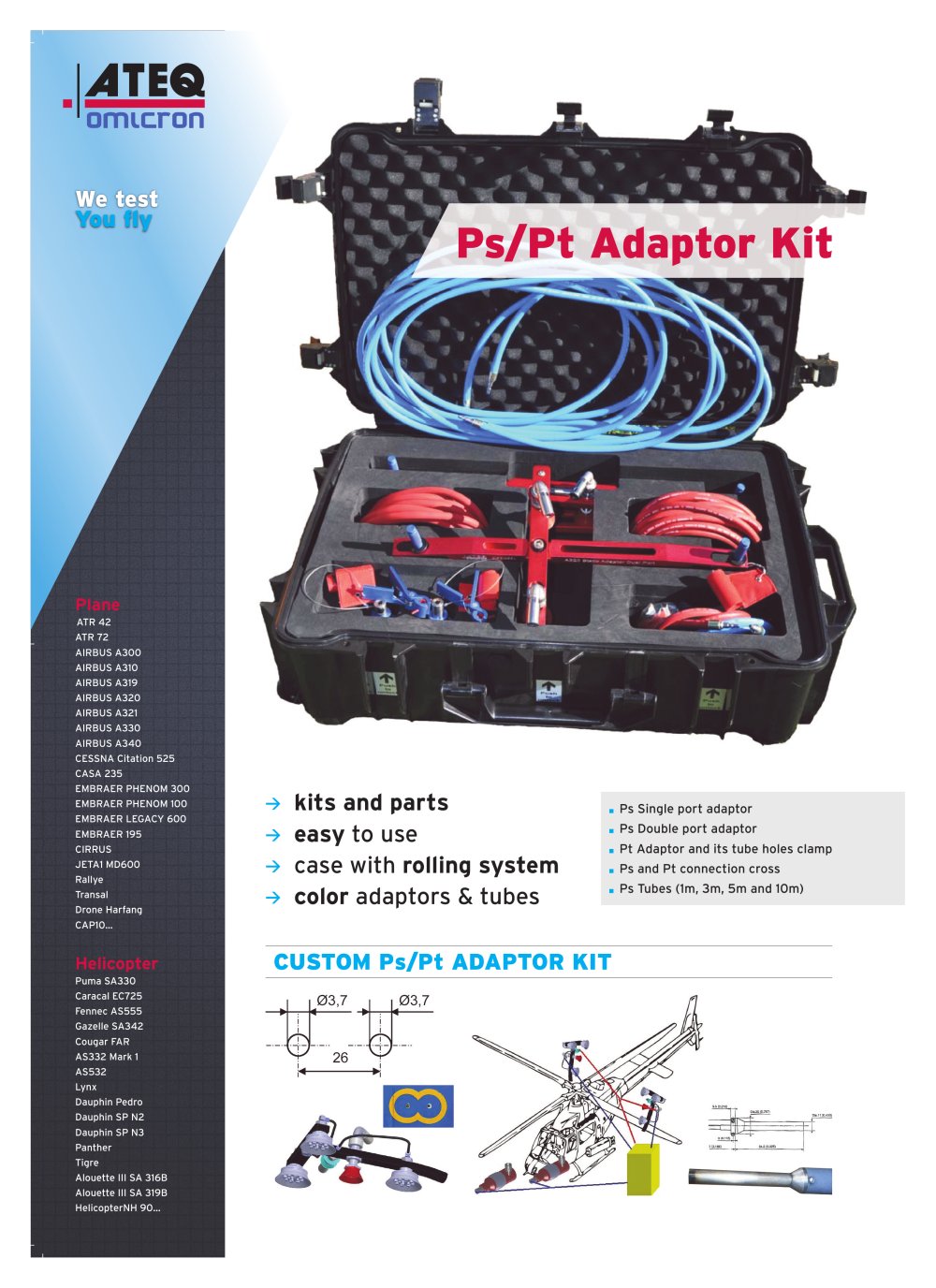

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:15.00pt "Arial", sans-serif; } .font3 { font:28.00pt "Arial", sans-serif; } >JTEQ we test You fly ATR 42 ATR 72 AIRBUS A300 AIRBUS A310 AIRBUS A319 AIRBUS A320 AIRBUS A321 AIRBUS A330 AIRBUS A340 CESSNA Citation 525 CASA 235 EMBRAER PHENOM 300 EMBRAER PHENOM 100 EMBRAER LEGACY 600 EMBRAER 195 CIRRUS JETA1 MD600 Rallye Transal Drone Harfang CAP10... > kits and parts > easy to use > case with rolling system > color adaptors & tubes . Ps Single port adaptor . Ps Double port adaptor . Pt Adaptor and its tube holes clamp . Ps and Pt connection cross . Ps Tubes (1m, 3m, 5m and 10m) CUSTOM Ps/PI ADAPTOR KIT Puma SA330 Caracal EC725 Fennec AS555 Gazelle SA342 Cougar FAR AS332 Mark 1 AS532 Lynx Dauphin Pedro Dauphin SP N2 Dauphin SP N3 Panther Tigre Alouette III SA 316B Alouette III SA 319B HelicopterNH 90.

Open the catalog to page 1

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:15.00pt "Arial", sans-serif; } .font2 { font:66.00pt "Arial", sans-serif; } STATIC PORT UNIVERSAL ADAPTER PSAT UNIVERSAL Ps PSAT UNIVERSAL Ps is a static adaptor for virtually ANY KIND OF AIRCRAFT PSAT UNIVERSAL Ps is very easy to use on the plane: > powerON the Suction Unit > place the Universal adapter on the aircraft and adjust the Ps port > release the Security Valve (blue): You are ready to test you static Port ! Pneumatic insulation is made with rubber tube....

Open the catalog to page 2
