D520 Compact continuous laminar flow tester
2Pages

{{requestButtons}}

Catalog excerpts

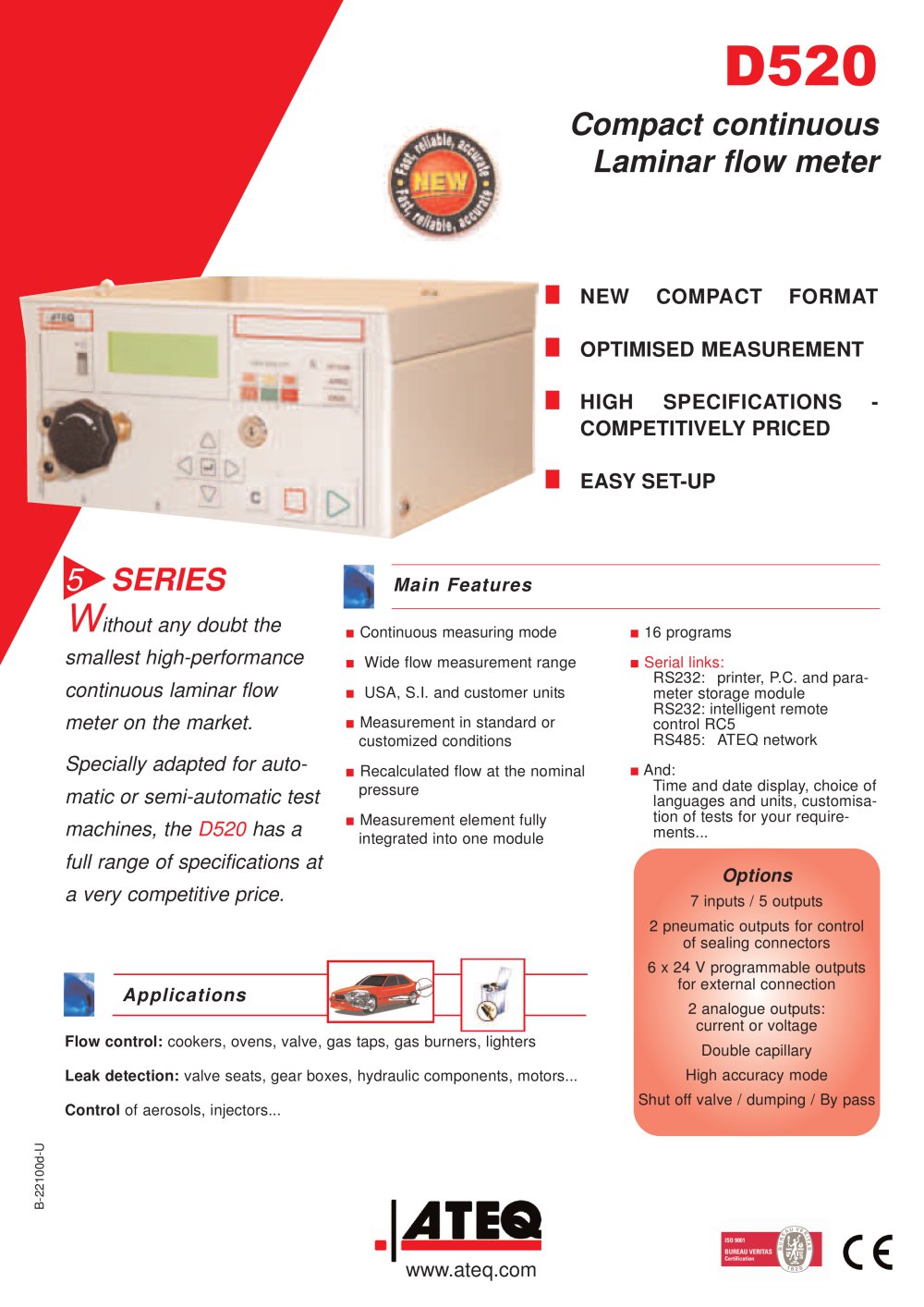

D520 Compact continuous laminar flow tester - 1

D520 Compact continuous Laminar flow meter OPTIMISED MEASUREMENT HIGH SPECIFICATIONS COMPETITIVELY PRICED EASY SET-UP Main Features Continuous measuring mode smallest high-performance Wide flow measurement range continuous laminar flow meter on the market. Specially adapted for automatic or semi-automatic test machines, the D520 has a Measurement in standard or customized conditions Recalculated flow at the nominal pressure Measurement element fully integrated into one module full range of specifications at 16 programs Serial links: RS232: printer, P.C. and parameter storage module RS232: intelligent remote control RC5 RS485: ATEQ network And: Time and date display, choice of languages and units, customisation of tests for your requirements... a very competitive price. 7 inputs / 5 outputs 2 pneumatic outputs for control of sealing connectors 6 x 24 V programmable outputs for external connection 2 analogue outputs: current or voltage Flow control: cookers, ovens, valve, gas taps, gas burners, lighters Leak detection: valve seats, gear boxes, hydraulic components, motors... Double capillary High accuracy mode Shut off valve / dumping / By pass Control of aerosols, injectors...

Open the catalog to page 1
D520 Compact continuous laminar flow tester - 2

Measurement ranges FLOW MEASUREMENT ACCURACY PRESSURE MEASUREMENT ACCURACY MAXIMUM RESOLUTION * Relative FS = Full Scale P = Pressure MECHANICAL PRESSURE REGULATOR -600 to -10 kPa / 0.8 to 6 kPa / 0.5 to 14 kPa / 6 to to 100 kPa / 5 to 210 kPa / 10 to 350 kPa Physical Weight: approximately 7 kg Interface Navigation keys 4-line LCD display Results indicator lights External electrical supply Voltage: 24 V DC / 2 A Main adaptater included (110 - 240 V AC) Air supply Clean and dry air required Air quality standard to be applied (ISO 8573-1) Temperature Operating Storage Start/Reset remote...

Open the catalog to page 2
