MLS 3

Product catalog summary

Overview: The MLS-3 Magnetic Linear Encoder Scale is a sealed, contactless, and wear-free linear position measuring system designed for high accuracy and resolution in harsh environments. It features a rugged aluminum profile that protects against dust, chips, and splash fluids, making it ideal for machine tools.

Specifications: The encoder offers incremental output signals (A, B, Z) and supports various resolution types (1 μm to 1 mm). It operates with a power supply of 10-30VDC or 5VDC and has a protection class of IP67. The system is resistant to dirt, humidity, and shock, with a measuring length of up to 4000 mm.

Applications: Suitable for machining centers, lathes, milling machines, and other equipment requiring precise length measurement in environments with airborne liquids and particles.

Technical Features: The encoder includes a compact sensor head guided within the housing, a long-life linear motion guide bearing system, and a robust shielded metal enclosure. It compensates for misalignment without affecting accuracy.

Electrical Connections: The encoder supports TTL, Push Pull, and RS422 Line Driver output circuits, with a maximum input current of 40mA per channel. It includes a detailed pin configuration for electrical connections.

Dimensions and Ordering: The document provides a measurement stroke table ranging from 100 mm to 2000 mm, with options for longer strokes upon inquiry. Ordering codes are available for customization.

Catalog excerpts

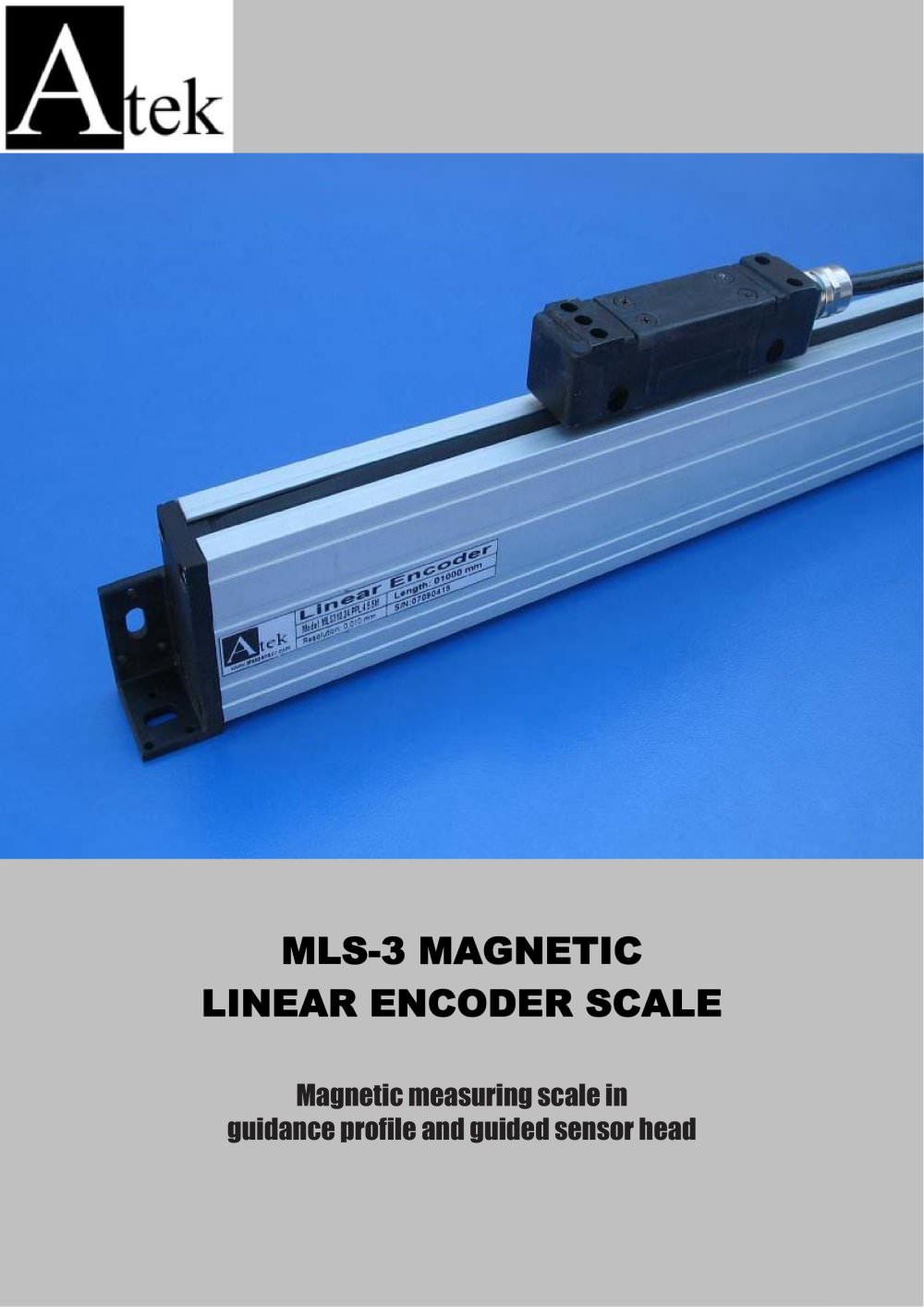

Magnetic measuring scale in guidance profile and guided sensor head >

Open the catalog to page 1

Machining centers Lathes Milling machines Drilling machines Grinding machines Electrical discharge machines Sheet metal working machines Welding machines Bending presses Robotics / materials handling Linear units / linear drives Linear guides Marble Machines Wood Cutting Machines PVC Profile Cutting Machines Glassworking machinery etc. Measuring machines installed linear production equipment >

Open the catalog to page 2

TECHNICAL SPECIFICATIONS : Resolution types > 1 m, 5 m , 10 m,25 m 62.5 m,1 mm at 4 edge triggering Output Circuit TTL, Push Pull, RS422 Line Driver Output signals A, /A, B, /B, (Z,/Z option) Input current max . 40mA per Channel Power supply 10...30VDC or 5VDC Dimensions See drawing Housing Material Aluminium Connections Up to 100 m. Cable length on request Gap between tape and sensor Up to 2.5 mm (Depend on pole pitch) Travel velocity 3 m/s Magnetic Tape Type B5 nitrile rubber high temperature magnetic tape Measure Accuracy 5 > m Repetability ѱ1 increments Operating temperature range -25 +85...

Open the catalog to page 3
