MLS 2

Product catalog summary

Features:

High resolution up to 0.001 mm
Flat and rugged aluminum profile tape
Stainless steel cover for protection
Compact design with advanced technology
Shielded metal enclosure
Easy to mount
Contact-less and wear-free system
High resistance to vibration and impacts
Protection class IP67
Resistant to humidity
High accuracy and reliable reading transducer
Measuring lengths up to 100m
Connection cable up to 20m

System Overview:

The MLS-2 Magnetic Linear Encoder Profile System includes an unguided sensor head and a B5 magnetic measuring tape within the PS2 Profile System. It generates incremental signals for linear measurement without contact. The system features a rugged, flexible plastic magnetic tape applied to a metal support profile, with an optional stainless steel cover for added protection. The PS2 Profile System's aluminum case ensures mechanical stability and optimal use in steel construction machines.

Functionality:

The aluminum carrier guarantees mechanical stability and enhances the magnetic system's performance. The MLS-2 system is designed for measuring distances over a meter, with easy assembly and no contact parts, making it suitable for various industrial applications. The integrated measuring transducer includes a magnetic field-sensitive sensor, electronic signal conversion circuit, and output circuit, producing signals for interfacing with displays, PLCs, CNCs, and more.

Applications:

Wood Cutting Machines
Marble Machines
PVC Profile Cutting Machines
CNC/NC Machines
Milling Machines
Drilling and Boring Machines
Machining Centers
Lathes
Grinding Machines
Electrical Discharge Machines
Welding Machines

Technical Specifications:

The document includes a table detailing signal names, cable colors, and corresponding pin numbers for electrical connections. The system is designed for harsh environments, ensuring durability and reliability.

Contact Information:

ATEK SENSOR TECHNOLOGY AG, TepeustuMevki Sakarya Sokak No: 26 A.Dudullu Umraniye - ISTANBUL – TURKEY. Tel: +90 216 457 19 31 PBX, Fax: +90 216 457 19 30, Web: http://www.ateksensor.com, Email: [email protected]

Catalog excerpts

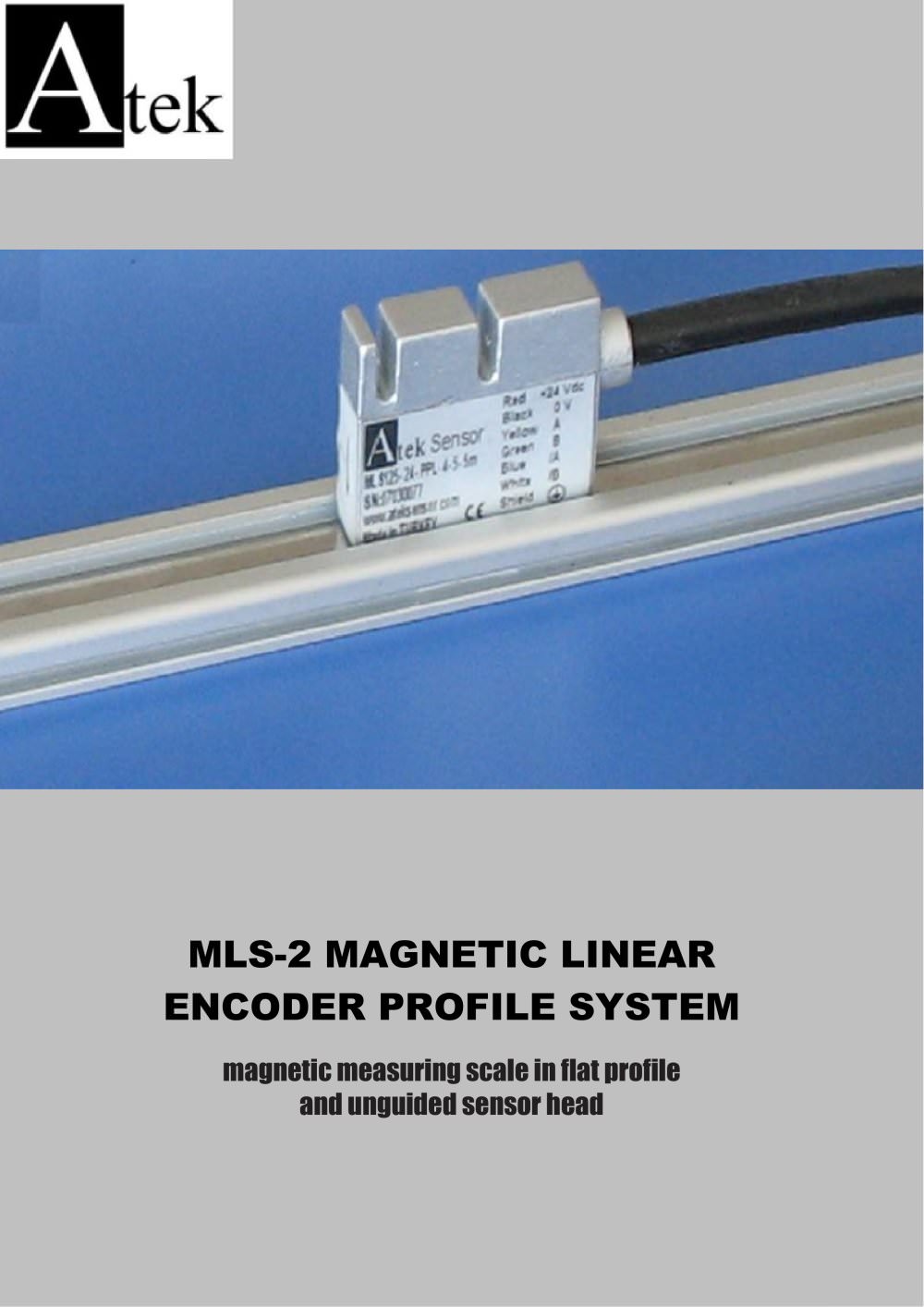

magnetic measuring scale in flat profile and unguided sensor head >

Open the catalog to page 1

MLS-2: Sensor Head with PS2 Profile System > The MLS-2 Magnetic Linear Encoder Profile System consist of an unguided sensor headand B5magnetic measuring tape in PS2 Profile System. It produces incremental signals without contact fo r linear > measurement. The highly rugged, flexible plastic magnetic tape is applied to a metal support profile. Witha special industrial adhesive layered strip, B5 Magnetic Tape is attached to the overside of the profile system. A sturdy, stainless steel sheet cover is also available for additional protection. The > shock-proof , PS2 Profile System( > aluminium case...

Open the catalog to page 2

Signal Name Open cable end Conn. D-sub, Cable Colour (9 pin) Pin no. A YELLOW 1 /B WHITE 2 +V RED 3 0 V BLACK 4 /A BLUE 5 B GREEN 6 /Z - 7 Z - 8 GROUND SHIELD 9 > (Optional) Reader Head DrawingPS2 Profile S y stem size="-1">

Open the catalog to page 3

ORDERING CODE : ATEK SENSOR TECHNOLOGY AG > TepeustuMevki Sakarya Sokak No: 26 A.Dudullu Umraniye - ISTANBUL TURKEY Tel: +90 216 457 19 31 PBX Fax : +90 216 457 19 30 Web: http://www.ateksensor.com Email : > [email protected] size="-1">

Open the catalog to page 4

MLS 2
