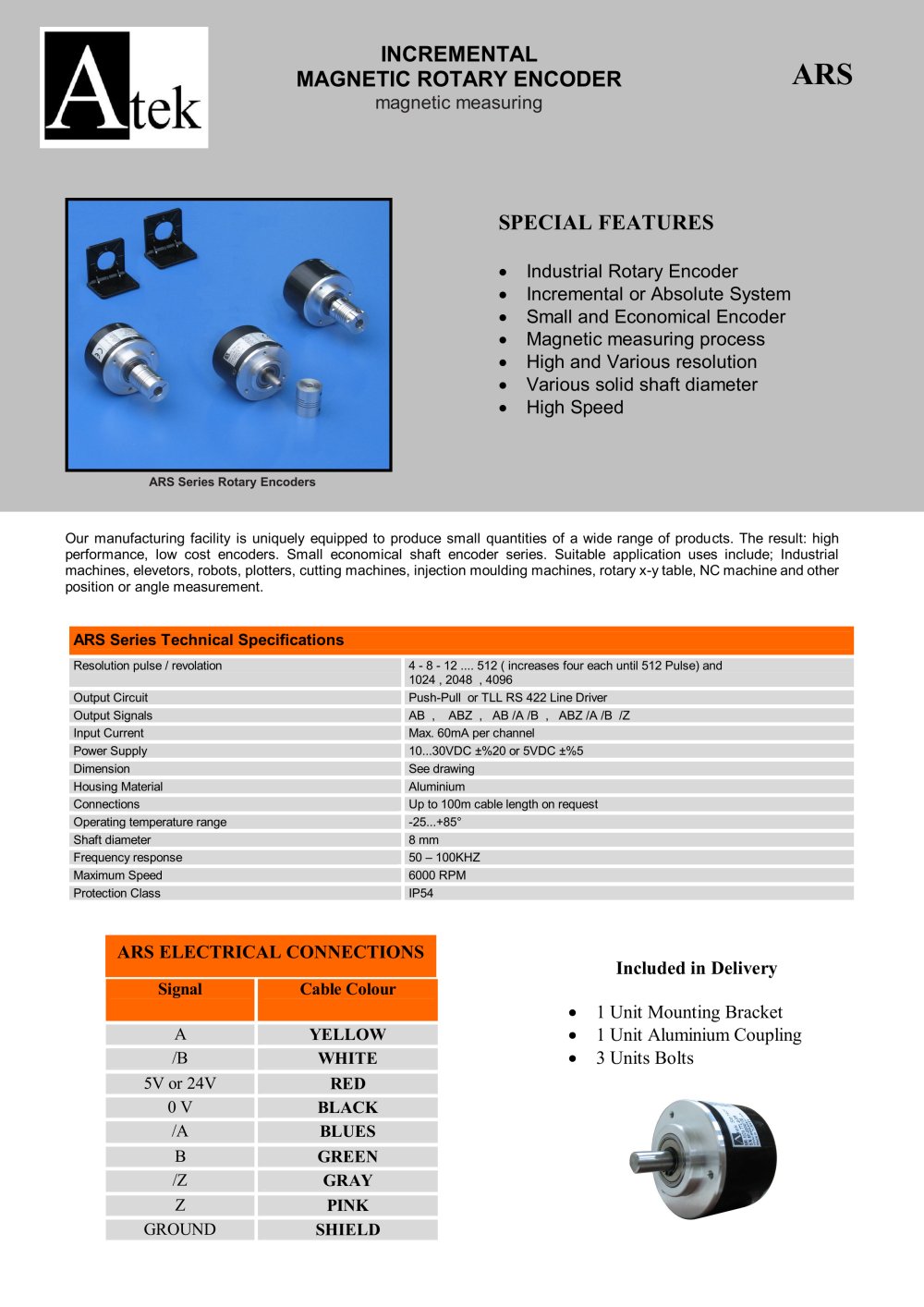

• Resolution: 4 to 512 pulses per revolution, increasing by four each step, and options for 1024, 2048, and 4096 pulses.
• Output Circuit: Push-Pull or TTL RS 422 Line Driver.
• Output Signals: AB, ABZ, AB/A/B, ABZ/A/B/Z.
• Input Current: Maximum 60mA per channel.
• Power Supply: 10-30VDC ±20% or 5VDC ±5%.
• Housing Material: Aluminium.
• Connections: Cable length up to 100m on request.
• Operating Temperature Range: -25 to +85°C.
• Shaft Diameter: 8 mm.
• Frequency Response: 50 – 100KHZ.
• Maximum Speed: 6000 RPM.
• Protection Class: IP54.

• A: Yellow
• /B: White
• 5V or 24V: Red
• 0V: Black
• /A: Blue
• B: Green
• /Z: Gray
• Z: Pink
• Ground: Shield

• Industrial Rotary Encoder.
• Incremental or Absolute System.
• Small and Economical Encoder.
• Magnetic measuring process.
• High and Various resolution.
• Various solid shaft diameter.
• High Speed.

Suitable for industrial machines, elevators, robots, plotters, cutting machines, injection moulding machines, rotary x-y tables, NC machines, and other position or angle measurement applications.

• 1 Unit Mounting Bracket
• 1 Unit Aluminium Coupling
• 3 Units Bolts

• Resolution: Options from 4 to 4096 pulses.
• Model No.
• Power Supply and Output: Options for Push-Pull or TTL RS422 Line Driver.
• Signal Output: Options for A, B, Z signals.
• Cable Length: Standard 3M, options for 5M and 10M.
• Shaft Diameter: Options for 6 mm, 8 mm, 10 mm.
• Body Diameter: Standard 50 mm, option for 40 mm.

Ateksensor Technology AG, Baglarbasi Mah. Atatürk Cad. Sakarya Sok. No:35 Kat:9 Maltepe - Istanbul, Turkey. Tel: +90 216 457 19 31 PBX, Fax: +90 216 457 19 30. Web: www.ateksensor.com, Email: [email protected]
