counter - 1

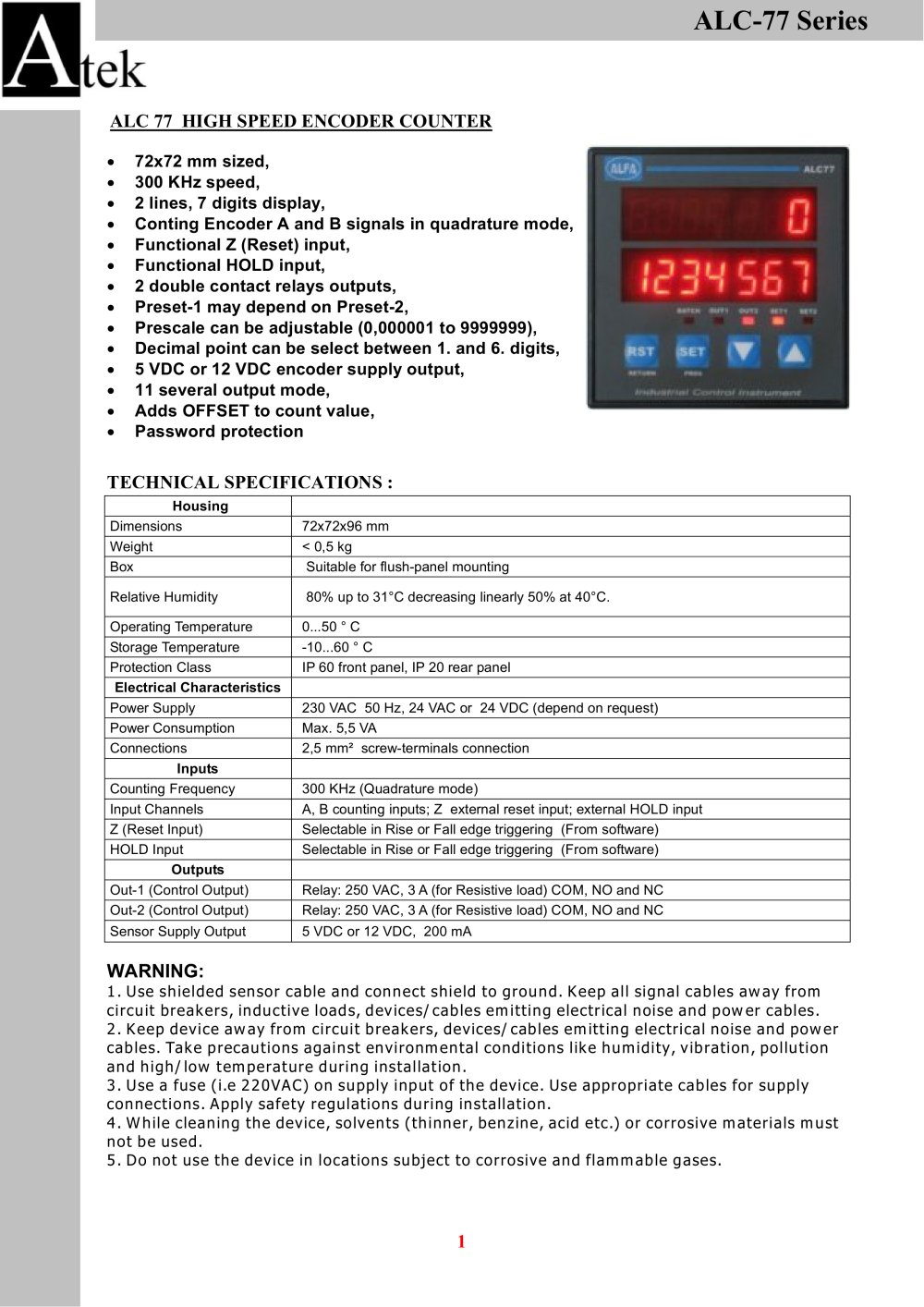

Housing Dimensions 72x72x96 mm Weight < 0,5 kg Box Suitable for flush-panel mounting Relative Humidity 80% up to 31C decreasing linearly 50% at 40аC. Operating Temperature 0...50 C Storage Temperature -10...60 а C Protection Class IP 60 front panel, IP 20 rear panel Electrical Characteristics Power Supply 230 VAC 50 Hz, 24 VAC or 24 VDC (depend on request) Power Consumption Max. 5,5 VA Connections 2,5 mm screw-terminals connection Inputs Counting Frequency 300 KHz (Quadrature mode) Input Channels A, B counting inputs; Z external reset input; external HOLD input Z (Reset Input) Selectable in Rise or Fall edge triggering (From software) HOLD Input Selectable in Rise or Fall edge triggering (From software) Outputs Out-1 (Control Output) Relay: 250 VAC, 3 A (for Resistive load) COM, NO and NC Out-2 (Control Output) Relay: 250 VAC, 3 A (for Resistive load) COM, NO and NC Sensor Supply Output 5 VDC or 12 VDC, 200 mA >

Open the catalog to page 1
counter - 2

1. 7 Digits LED Display (9,2 mm): Counting value indicator (Counting Mode) Program parameter indicator (Programming Mode) 2. 7 Digit LED Display (9,2 mm): Set value indicator (Counting Mode) Program parameter value indicator (Programming Mode) 2. Out-1 output indicating LED: It indicates the state of Out-1 output. 3. Out-2 output indicating LED: It indicates the state of Out-2 output. 4. Set-1 indicating LED: It flashes when it is showed the Set-1 value in lower display. 5. Set-2 indicating LED: It flashes when it is showed the Set-2 value in lower display.. 6. RESET Button (Counting mode):...

Open the catalog to page 2
counter - 3

PANEL CUT-OUT : CONNECTION DIAGRAM: 3 >

Open the catalog to page 3
counter - 4

It is selectable the SET value (Set-1 or Set-2) which is request to show in lower display using the > and buttons during the counting mode. > Press to enter programme and use and to select the p arameter which you request to change, than press again and enter this parameter. See not-1 for modification. It is adjustable and values like this. > There are 11 different output types for 2 relay outputs. The schematic diagrams and explanations for output types are at 7...10 pages. Energizing time of Out-1 and Out-2 outputs can be adjusted using this p arameters. If it is made output is energized...

Open the catalog to page 4
counter - 5

is selectable normally close or normally open. Calibration constant value can be adjustedbetween 0,000001 and 9999999. > Decimal point can be adjusted between 1. and 6. digits. If desired, decimal point is not included. > Offset value can be adjusted between -999999 and 9999999. It means counter starts counting from the offset value when it is reset. It is important that the Offset value must be selected lower than SET-1 value. > : Reset buton runs. : Reset buton doesnt run. > : External reset doesnҒt run. : Counting value resets when the rising edge comes. : Counting value resets when the...

Open the catalog to page 5
counter - 6

: When the power is off the counting value is losed reset to Offset. : The counting value is recorded. Even if power is off, the counter is to be continued this recorded value . Selecting the it is activated the password protection and it is showed another parameter parameter. Using this parameter it can be changed password. The default password is 000Ӕ.If the password protection is activated, it can be see programme parameters but it cannot be changed the paramters value without enter the password. In this manner it is prevented to be changed the parameters by unauthorized persons. >...

Open the catalog to page 6
counter - 7

OUTPUT MODES: Output-0: Output-1: Output-2: Output-1: If outmode is selected equal to 0, the outputs dont run. NOTE : It must be following conditins for all Output modes; OFFSET SET-1 SET-2 When the counting value reachs to Set-1 value, Out-1 turn ON and also reachs Set- 2 value, Out-2 turn ON. Out-1 and Out-2 keeps on state in following condition: Counting Value Set-1 Counting Value Set-2 When the counting value reachs to Set-1, the OUT-1 turn on and also reachs to Set-2, the OUT-2 turn on. Even if the decrease down the Set values, the Outputs donҒt turn off. Only if the RESET comes, the...

Open the catalog to page 7
counter - 8

Output-3: Output-4: Output-5: When the counting value reachs to Set-1, the OUT-1 turn on and if decrease under to Set-1 its turn off. When the counting value reachs to Set-2, the OUT-2 turn on and the counting value is held (namely it doesnҒt count). If the RESET comes, the out p uts turns off. It is Autoreset mode. In this mode OUT-1 depend on the OUT-2. It should be enter the TOUT-2 is time and the TOUT-1 is HOLD. Namely, when the counting value reachs to Set-1, the OUT-1 turn on and if decrease under to Set-1 its turn off. When the counting value reachs to Set-2, the OUT-2 turn on and...

Open the catalog to page 8
counter - 9

Output-6: Output-7: Output-8: When the counting value reachs to Set-1, the OUT-1 turn on and also reachs to Set-2, the OUT-2 turn on. Even if the decrease down the Set values, the Outputs dont turn off unless the counting value reach to OFFEST value.If the RESET comes, the outputs turns off. When the counting value reachs to Set-1, the OUT-1 turn on and if it decrease under the Set-1 OUT-1 turns off . When the counting value reachs to Set-2, the OUT-2 turn on. Even if the decrease down the Set values, Out-2 doesnҒt turn off unless the counting value reach to OFFEST value.If the RESET comes,...

Open the catalog to page 9
counter - 10

Output-9: Output-10: In this mode it should be enter the value to TOUT times. The Out-1 keeps on during the TOUT-1 time in every p ass of the counting value at Set-1. The state of Set-1 is same as the Set-2. If the RESET comes, the outputs turns off. In this mode it should be selected the TOUT parameters as HOLD. The OUT-1 keeps on until the counting value reachs to SET-2. When the counting value reachs to SET-2, OUT-1 turns off and OUT-2 turns on. When the counting value increase and reaches reachs to Set-1, OUT-2 turns off and OUT-1 turns on. If the RESET comes, the counting value becomes...

Open the catalog to page 10
