Atago - Digital Salt-meter ES-421

Atago -  Digital Salt-meter ES-421

Atago - Digital Salt-meter ES-421

Product catalog summary
Overview: The ES-421 Digital Salt-Meter is a compact device designed for easy and accurate measurement of salt concentration using the conductivity method. It is suitable for various applications including food processing, restaurants, laboratories, public health centers, supermarkets, and educational institutions.
Key Features:
  • Simple operation with a funnel-shaped sensor for easy sample application.
  • Automatic measurement and display of salt percentage.
  • Easy calibration with air, no need for reference solutions.
  • Minimal sample requirement for measurement.
  • Simple cleaning process, no special care needed.
Measurement Principle: The ES-421 uses the conductivity method to detect electrolytes and convert them to NaCl concentration. This method offers advantages over the Mohr's method, such as no need for special tools, automatic measurement, and faster results.
Specifications:
  • Measurement Range: 0.00 to 10.0% (g/100g) of salt concentration.
  • Measurement Accuracy: Displayed value ±0.05% for 0.00 to 1.00% salt concentration; relative precision ± less than 5% for 1.00 to 10.0%.
  • Minimum Indication: 0.01% for 0.00 to 2.99% salt concentration; 0.1% for 3.0 to 10.0%.
  • Measurement Temperature: 10 to 40ºC with automatic temperature compensation.
  • Materials: ABS resin for the main body and vinyl chloride resin for the sample stage.
  • Power Supply: One 9V battery.
  • Dimensions & Weight: 17(W)×9(D)×4(H) cm, 300g.
Applications: The device is ideal for use in food processing factories, fast food shops, restaurants, laboratories, public health centers, supermarkets, and educational settings.
See more

Catalog excerpts

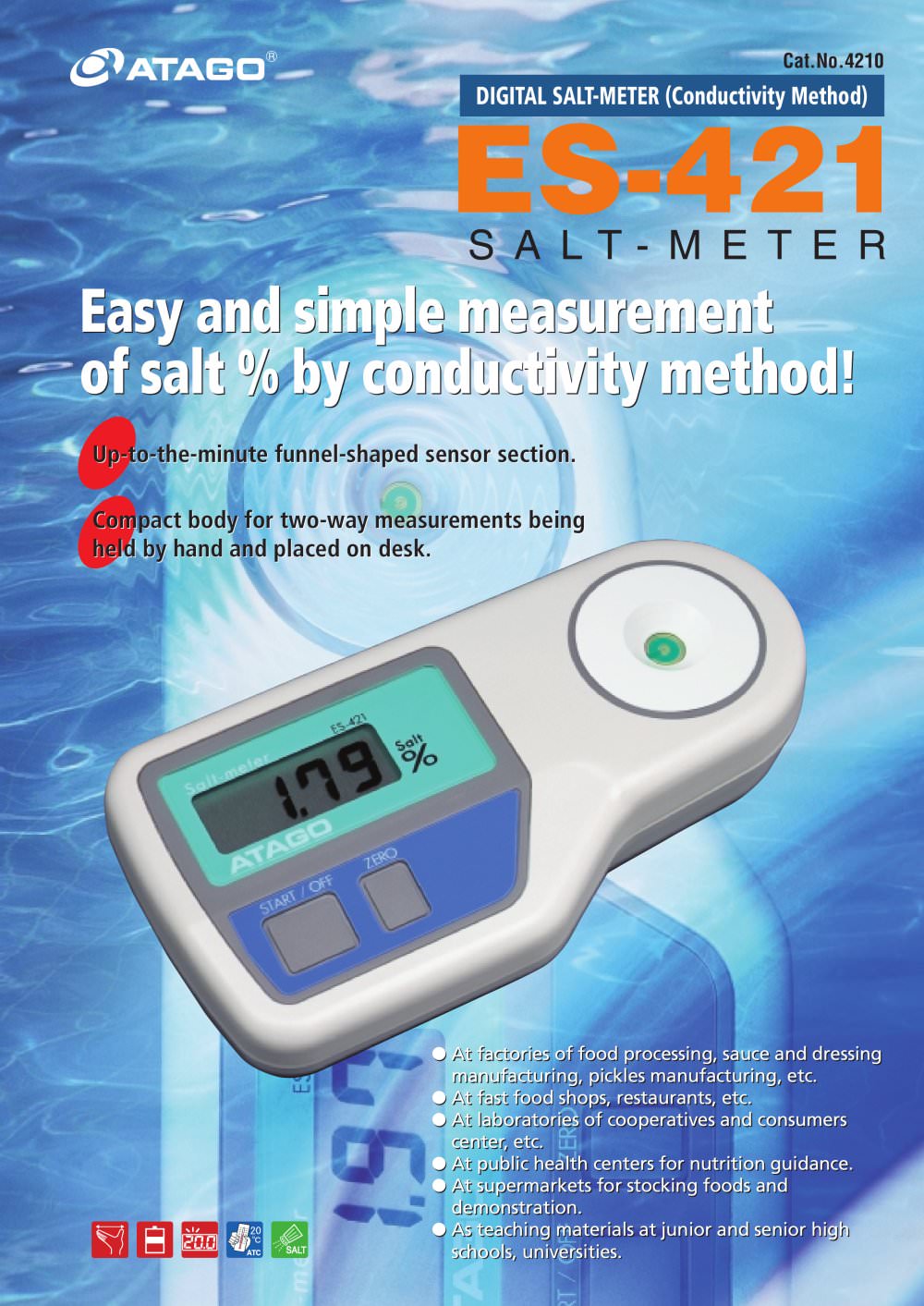

Atago -  Digital Salt-meter ES-421 -1

At factories of food processing, sauce and dressingmanufacturing, pickles manufacturing, etc. At factories of food processing, sauce and dressingmanufacturing, pickles manufacturing, etc. At fast food shops, restaurants, etc. At fast food shops, restaurants, etc. At laboratories of cooperatives and consumerscenter, etc. At laboratories of cooperatives and consumerscenter, etc. At public health centers for nutrition guidance. At public health centers for nutrition guidance. At supermarkets for stocking foods anddemonstration. At supermarkets for stocking foods anddemonstration. As teaching materials at junior and senior highschools, universities. As teaching materials at junior and senior highschools, universities. >

 Open the catalog to page 1
Atago -  Digital Salt-meter ES-421 -2

Littlesample isenough formeasure-ment! Simplecalibrationwith air! Cleaningby justwipe-over! ✽ For measurement of a sample containing ingredients other than salt, dilute the sample so that its Brix index (percentage ofsoluble solid content) is less than 6%. For example, dilute soy sauce, Worcester sauce with distilled water 10 times (in weight) asthin as the original for measurement, and the actual salt % is obtained by multipliying the measured value by 10. > The detection principle of the ES-421 is the conductivity method, which detects electrolyte and converts to NaCl concentration. Compare...

 Open the catalog to page 2
