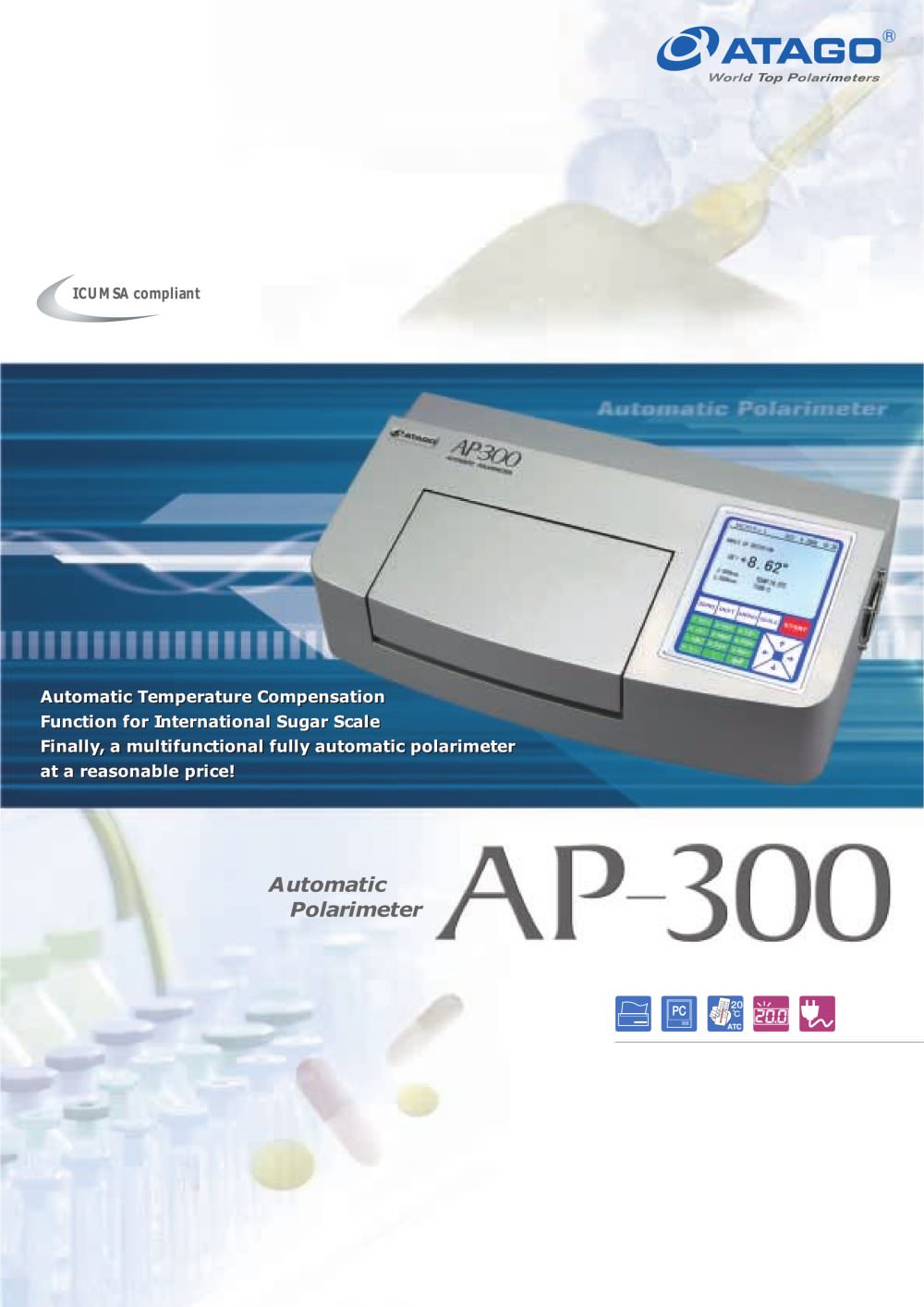

Atago - Automatic Polarimeter AP-300

Atago - Automatic Polarimeter AP-300

Product catalog summary

Overview: The document provides detailed information about the AP-300 Automatic Polarimeter, which is ICUMSA compliant and features automatic temperature compensation for the International Sugar Scale. It is designed for ease of use and offers a competitive price.

Key Features:

Measures angle of rotation, International Sugar Scale, specific optical rotation, concentration, and purity.
Automatic Temperature Compensation (ATC) for International Sugar Scale between 18℃ and 30℃.
Minimum angle of rotation and International Sugar Scale readings are 0.01° and 0.01°Z, respectively.
Built-in memory for storing the last 30 measurements.
Compact design with a backlit color LCD for easy reading.
RS-232C interface for data export and optional digital printer connectivity.

Applications:

Measurement of specific optical rotation in medical agents.
Determination of concentration in fragrance materials and chemical compositions.
Assessment of sugar purity and attributes of inverted sugar.

Specifications:

Measurement range: Angle of Rotation: -89.99° to +89.99°, International Sugar Scale: -130.00°Z to +130.00°Z.
Temperature accuracy: ±0.5℃.
Power supply: AC100V to 240V, 50/60Hz.
Dimensions: 48.5×28.5×18.1cm, Weight: 11.5kg.

Accessories:

Observation tubes available in various lengths (100mm, 200mm).
Optional digital printers and quartz control plates for calibration.

Special Packages:

Type A: Includes jacketed flow tube with funnel and temperature sensor.
Type B: Includes unjacketed flow tube with funnel.

Additional Information: The AP-300 is manufactured in Japan and is designed to meet international standards. It is suitable for use in the sugar industry and other applications requiring precise optical measurements.

Catalog excerpts

Mode Date and time Measurementreading Name ofscale ʢ TEMP ʣ Measurement wavelength Type ofsample tube Length ofsample tube ʢ L ʣ The angle of rotation is the basic numeric value measured by polarimeters, and changes depending on the concentration of the solution, the length of the observation tube, temperature, and/or the measurement wavelength. It is symbolized by > ʠɹʡ and indicated in > ʠ ˃ . > ʡ ˔ International Sugar Scale The International Sugar Scale is indicated in > ʠ ˃ Z . > ʡ The measurement value of 26g of sucrose in 100ml of sucrose solution in a 200mm observation tube is 100 ˃ Z....

Open the catalog to page 2

RE-72001 RE-72001 ɿ ɿ Observation tube 100mm long OT-100 Observation tube 100mm long OT-100 ʢ ʢ A A ʣ ʣ RE-72002 RE-72002 ɿ ɿ Observation tube 200mm long OT-200 Observation tube 200mm long OT-200 ʢ ʢ A A ʣ ʣ > Jacketed flow tube Jacketed flow tubewith funnel RE-72036 RE-72036 ɿ ɿ Jacketed flow tube 50mmRE-72034 Jacketed flow tube 50mmRE-72034 ɿ ɿ Jacketed flow tube 100mmRE-72035 Jacketed flow tube 100mmRE-72035 ɿ ɿ Jacketed flow tube 200mmRE-72033 Jacketed flow tube 200mmRE-72033 ɿ ɿ Jacketed flow tube with funnel 100mmRE-72032 Jacketed flow tube with funnel 100mmRE-72032 ɿ ɿ Jacketed flow tube...

Open the catalog to page 3
