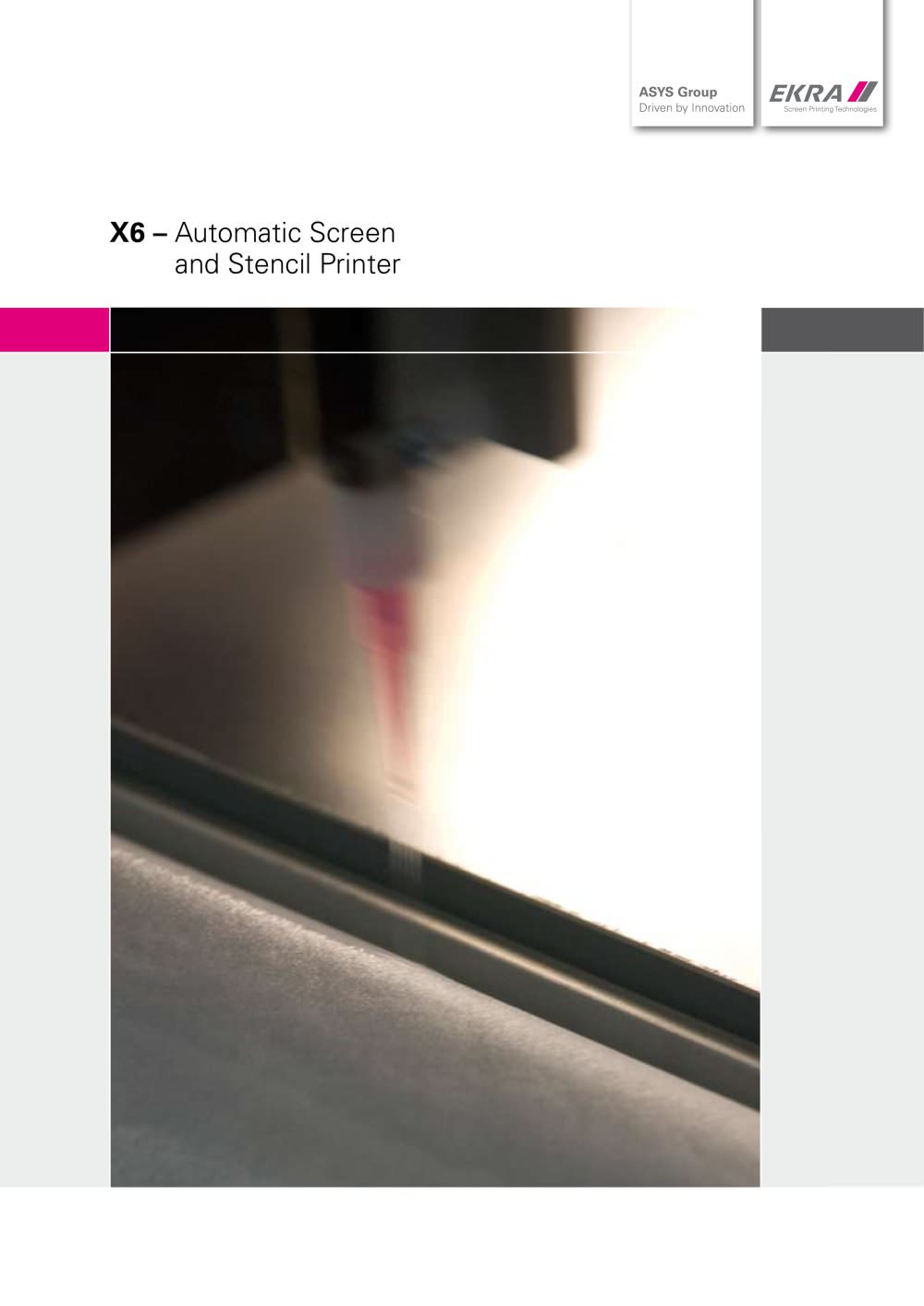

X6 Automatic Screen and Stencil Printer >

The X6 automatic screen and stencil printer is designed with a focus on enlarged printing formats and applications, which require a high speed post print inspection. Best-in-class align- ment repeatability and process capability are guaranteed in order to maintain highest manu- facturing quality standards. The X6 also features the EKRA typical exceptional ease of use and flexibility, which both are unmatched. The X6 can be used for the application of solder paste and / or glue onto PCBs, ceramics or glass substrates up to a size of max. 610 x 550 mm (24,9 x 21,6 in- ches). The well known...

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 4

X6X6 HSP > 832 18514201700105813001890max 508480 Process Alignment repeatabilityCycletime 12,5 ѵm @ 6 Sigma12 s + print time 12.5 ѵm @ 6 Sigma 7 s + print time (High speed mode) 12 s + print time (Standardmode) > Print material (X/Y) Squeegee Stencil size min.Stencil size max. Print area min. Print area max.Print material thicknessPositioning350 x 350 mm920 x 920 mm 80 x 50 mm 508 x 508 mm optional: 610 x 550 mm 0.5 - 6 mm Fiducial recognition250 x 508 mmoptional 508 x 508 mm Squeegee speedSqueegee pressure Squeegee mode9 - 200 mm/s10 - 250 N Print / Print Print / Flood Flood / Print...

Open the catalog to page 5

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } ASYS Group EKRA Automatisierungssysteme GmbH ZeppelinstrafJe 16 74357 Bnnigheim Germany Phone (+49) 7143 8844 0 Fax (+49) 7143 8844 125 www.ekra.com ASYS Group Asia Pte. Ltd. 30 Shaw Road #01-02/03 Singapore 367957 Singapore Phone (+65) 6280 8887 Fax (+65) 6858 5005 www.asys-group.com EKRA America Inc. 34 Saint Martin Drive Marlborough, MA 01752 USA Phone (+1) 508 486 9566 Fax (+1) 508 486 9567 www.ekra-america.com Subject to change without notice. Some general descriptions and performance...
