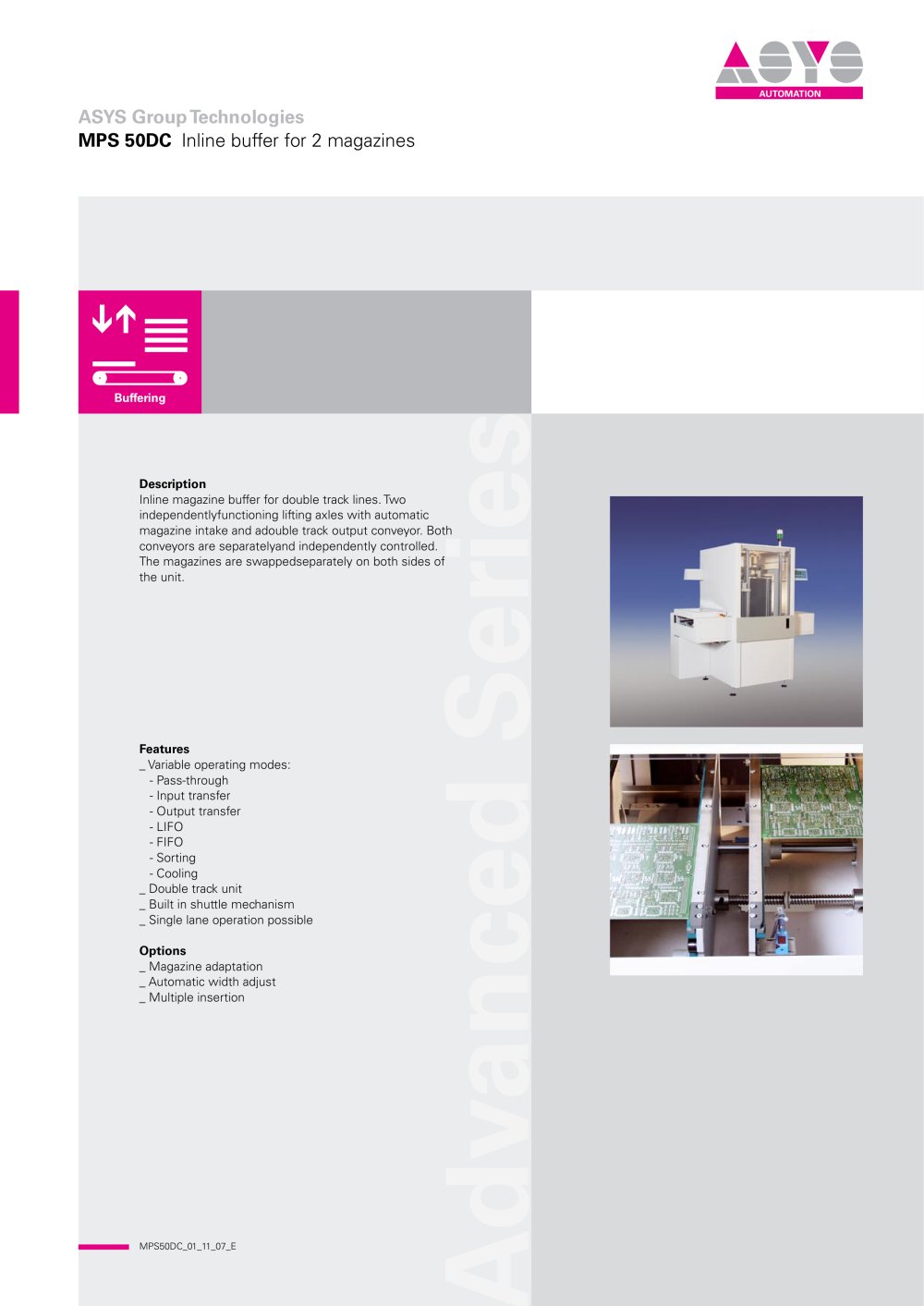

ASYS Group Technologies MPS50DC_01_11_07_E MPS 50DC Inline buffer for 2 magazines Advanced Series Description Inline magazine buffer for double track lines. Two independentlyfunctioning lifting axles with automatic magazine intake and adouble track output conveyor. Both conveyors are separatelyand independently controlled. The magazines are swappedseparately on both sides of the unit. Features _ Variable operating modes: - Pass-through - Input transfer - Output transfer - LIFO - FIFO - Sorting - Cooling _ Double track unit _ Built in shuttle mechanism _ Single lane operation possible Options _ Magazine adaptation _ Automatic width adjust _ Multiple insertion
Open the catalog to page 1Typ 1 Typ 2 Machine Configuration Transport height Max. transport width Interface Transfer direction Operating side Fixed rail 850 mm ± 50 mm 216 mm Siemens, SMEMA, SMPI, Panasonic, Fuji, Sanyo from left to right Front of the machine Front of the machine 850 mm ± 50 mm 460 mm Siemens, SMEMA, SMPI, Panasonic, Fuji, Sanyo from left to right Front of the machine Front of the machine Magazine Size Magazine length Magazine width Magazine heigth Slot spacing Buffer spacing 400 mm 320 mm 568 mm 5 - 20 mm 1 - 50 Slots 410 mm 525 mm 568 mm 5 - 20 mm 1 - 50 Slots Panel Dimensions Panel length Panel...
