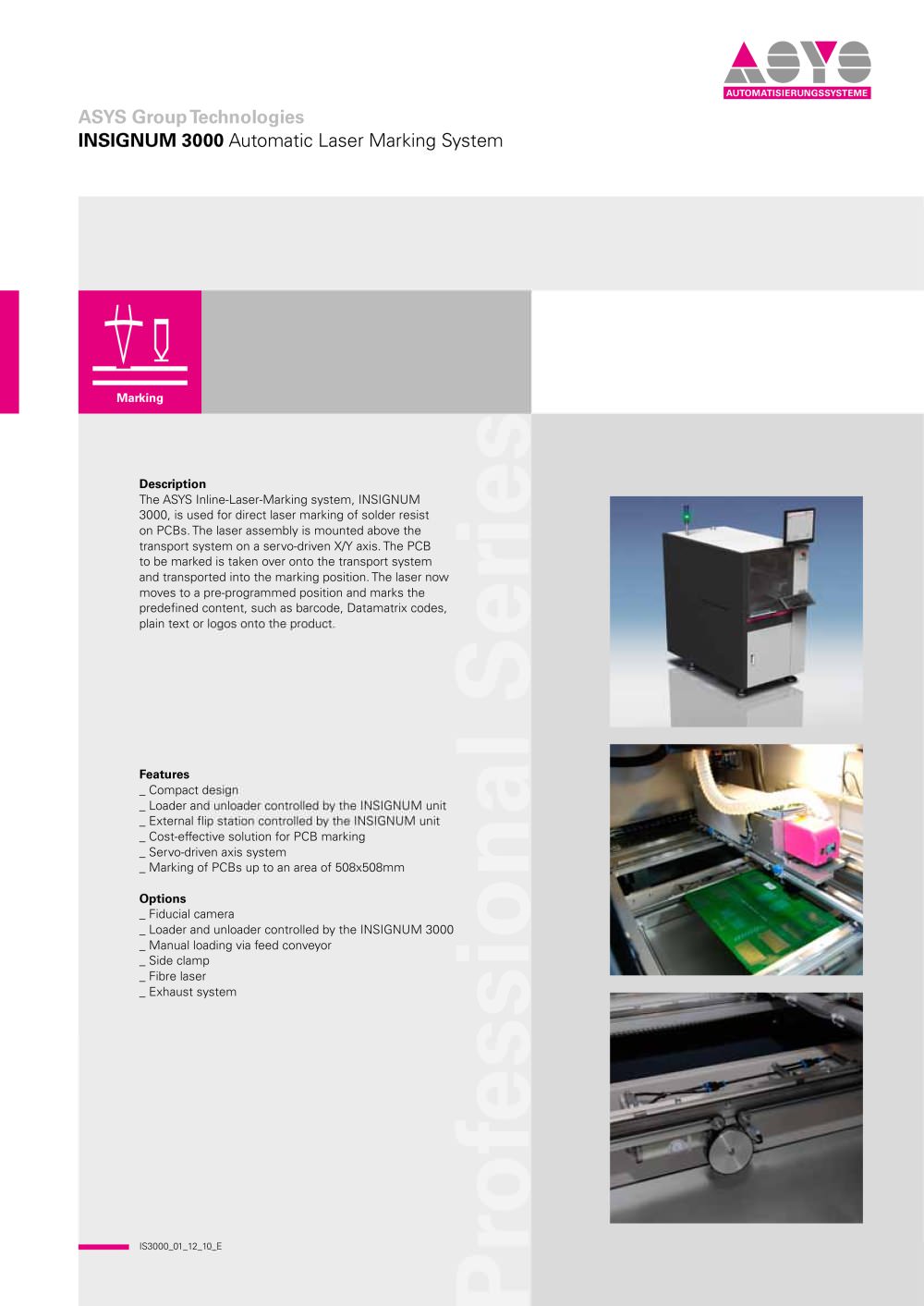

ASYS Group Technologies IS3000_01_12_10_E INSIGNUM 3000 Automatic Laser Marking System Professional Series Description The ASYS Inline-Laser-Marking system, INSIGNUM 3000, is used for direct laser marking of solder resist on PCBs. The laser assembly is mounted above the transport system on a servo-driven X/Y axis. The PCB to be marked is taken over onto the transport system and transported into the marking position. The laser now moves to a pre-programmed position and marks the predefined content, such as barcode, Datamatrix codes, plain text or logos onto the product. Features _ Compact design _ Loader and unloader controlled by the INSIGNUM unit _ External flip station controlled by the INSIGNUM unit _ Cost-effective solution for PCB marking _ Servo-driven axis system _ Marking of PCBs up to an area of 508x508mm Options _ Fiducial camera _ Loader and unloader controlled by the INSIGNUM 3000 _ Manual loading via feed conveyor _ Side clamp _ Fibre laser _ Exhaust system
Open the catalog to page 1INSIGNUM 3000 Machine Configuration Transport height Max. transport width Interface Transfer direction Operating side Fixed rail 850 mm ± 50 mm 508 mm Siemens, SMEMA from left to right Front of the machine Front of the machine Panel Dimensions Panel length Panel width Panel thickness Panel weight Component height Coating 70 to 508 mm 50 to 508 mm 0.8 to 4.0 mm Up to 3 kg Up to 40 mm Solder Resist (other coatings upon request) Installation Requirements Power supply Power supply system Power consumption Air supply Air consumption 230 V / 115 V, 50 / 60 Hz, ± 10% L1 + N + PE 0,69 kW 6 bar <12...
