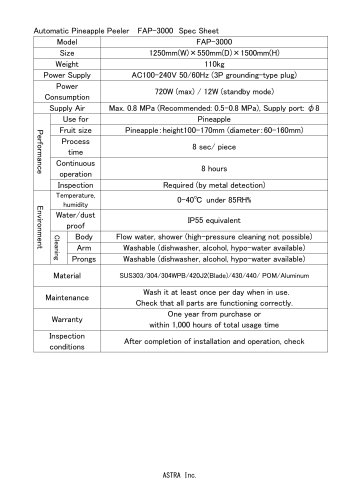

Specifications
Model: FAP-3000
Size: 1250mm(W)×550mm(D)×1500mm(H)
Weight: 110kg
Power Supply: AC100-240V 50/60Hz (3P grounding-type plug)
Power Consumption: 720W (max) / 12W (standby mode)
Supply Air: Max. 0.8 MPa (Recommended: 0.5–0.8 MPa), Supply port: φ8

Performance
Use: Pineapple
Fruit Size: Height 100-170mm, Diameter 60-160mm
Process Time: 8 sec/piece
Continuous Operation: 8 hours
Inspection: Required (by metal detection)

Environment
Temperature, Humidity: 0-40℃ under 85RH%
Water/Dust Proof: IP55 equivalent

Cleaning
Body: Flow water, shower (high-pressure cleaning not possible)
Arm: Washable (dishwasher, alcohol, hypo-water available)
Prongs: Washable (dishwasher, alcohol, hypo-water available)

Material
SUS303/304/304WPB/420J2(Blade)/430/440/ POM/Aluminum

Maintenance
Wash it at least once per day when in use.
Check that all parts are functioning correctly.

Warranty
One year from purchase or within 1,000 hours of total usage time

Inspection Conditions
After completion of installation and operation, check
