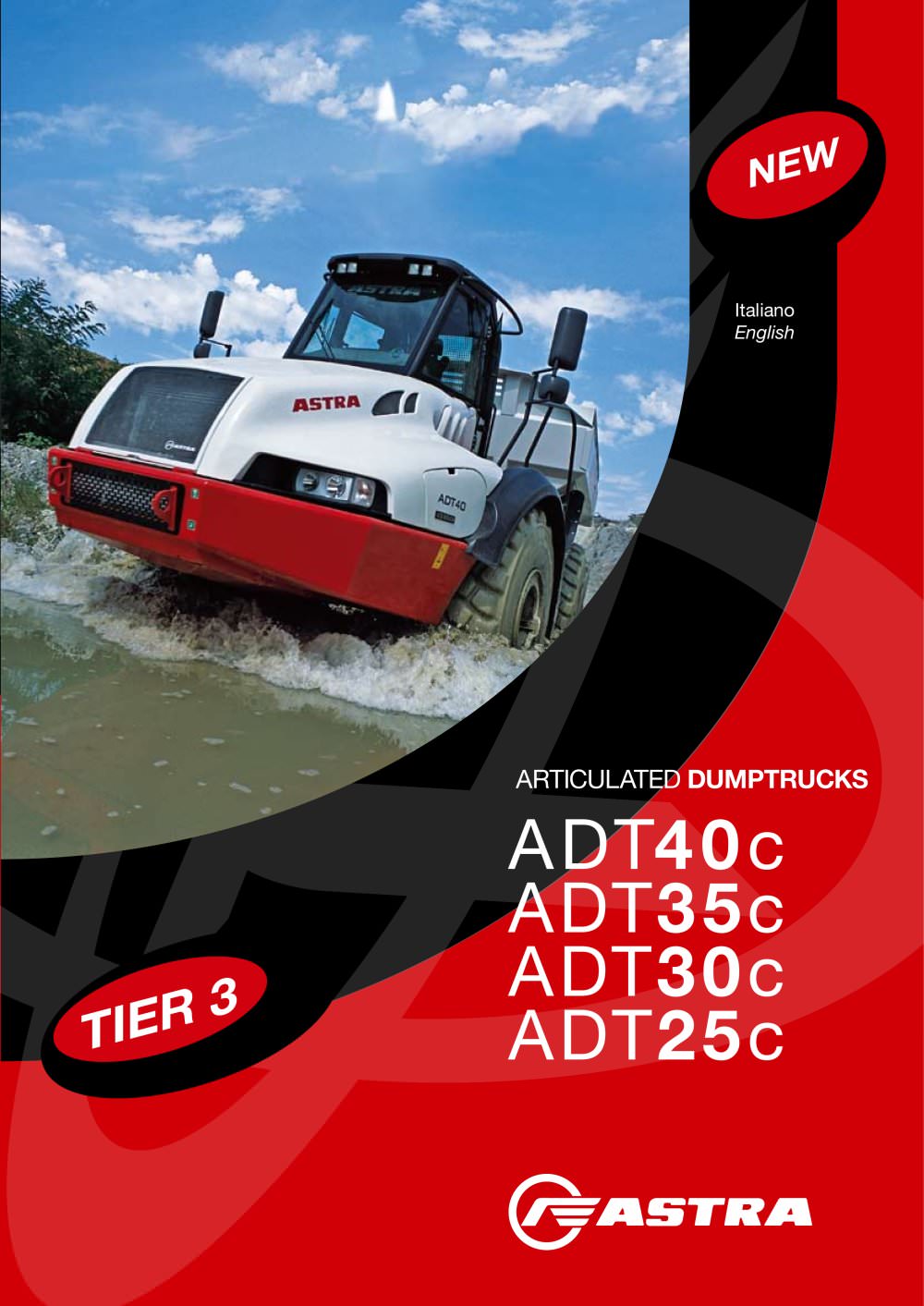

ASTRA Articulated Dumpers

Product catalog summary

Overview: The document provides detailed specifications and features of the ADT series articulated dump trucks by ASTRA, highlighting their innovative solutions and mobility. These vehicles are designed for challenging terrains, offering exceptional traction, driveability, and operational ease.

Key Features:

Strength and Mobility: The ADT range is characterized by strength, power, endurance, and mobility, making them suitable for difficult terrains and inaccessible places.
Cost Efficiency: The vehicles are known for their toughness, long maintenance intervals, reduced wear and tear, and ease of maintenance, resulting in low operating costs.
Design: The cylinders are short and well-protected, and the articulation joint features a double crown ball bearing and four ball joints to handle high radial stress.

Specifications:

Capacities: The ADT series offers varying capacities, with SAE struck capacities ranging from 10.6 m³ to 17.0 m³ and SAE heaped capacities from 14.5 m³ to 22.0 m³.
Weights: The tare weight ranges from 22.24 t to 29 t, with a maximum payload capacity of up to 37 t.
Engine: Powered by Iveco engines, the models feature different displacements and horsepower, with emissions compliant with EPA-CARB-OFF ROAD TIER3 standards.
Transmission: Equipped with ZF automatic transmissions, offering different converter stall ratios and optional hydraulic retarders.
Axles and Brakes: The vehicles use KESSLER and ZF axles with varying reduction ratios and brake types, including dry discs and wet multiple discs.
Tyres: Standard and optional tyre sizes are provided, catering to different operational needs.

Conclusion: The ADT series by ASTRA is designed for robust performance in challenging environments, offering a combination of power, efficiency, and low operational costs.
