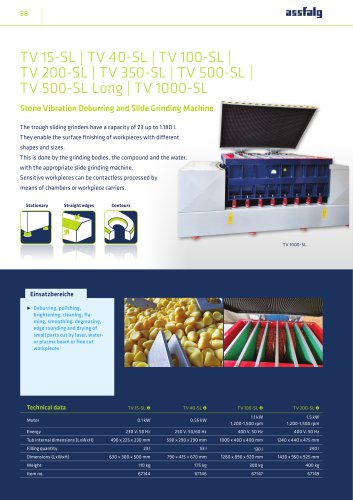

TV 15-SL | TV 40-SL | TV 100-SL TV 200-SL TV 350-SL | TV 500-SL TV 500-SL Long | TV 1000-SLStone Vibration Deburring and Slide Grinding Machine The trough sliding grinders have a capacity of 23 up to 1.180 l. They enable the surface finishing of workpieces with different shapes and sizes. This is done by the grinding bodies, the compound and the water, with the appropriate slide grinding machine. Sensitive workpieces can be contactless processed by means of chambers or workpiece carriers. Einsatzbereiche ► Deburring, polishing, brightening, cleaning, flaming, smoothing, degreasing, edge rounding and drying of small parts cut by laser, water-or plasma beam or fine cut workpieces Tub internal dimensions (LxWxH) 490 x 225 x 230 mm 590 x 290 x 290 mm 1000 x 400 x 400 mm 1240 x 440 x 475 mm

Profi-Vorteile ˭ Deburring and polishing of several parts with one machine only ˭ Vibration strength can be freely selected ˭ Folding noise protection cover ˭ With timer ˭ Wide range of Grinding wheels and compounds Features ˠ Sturdy, long-life construction with plastic-coated steel tub ˠ Consistent effect over the entire surface ˠ Very easy emptying of the tub after processing ˠ Separation of the workpieces and the grinding bodies by separator ˠ Ideal, also for longer workpieces Technical data Motor Energy Tub internal dimensions (LxWxH) Filling quantity Dimensions (LxWxH) Delivery contents...
