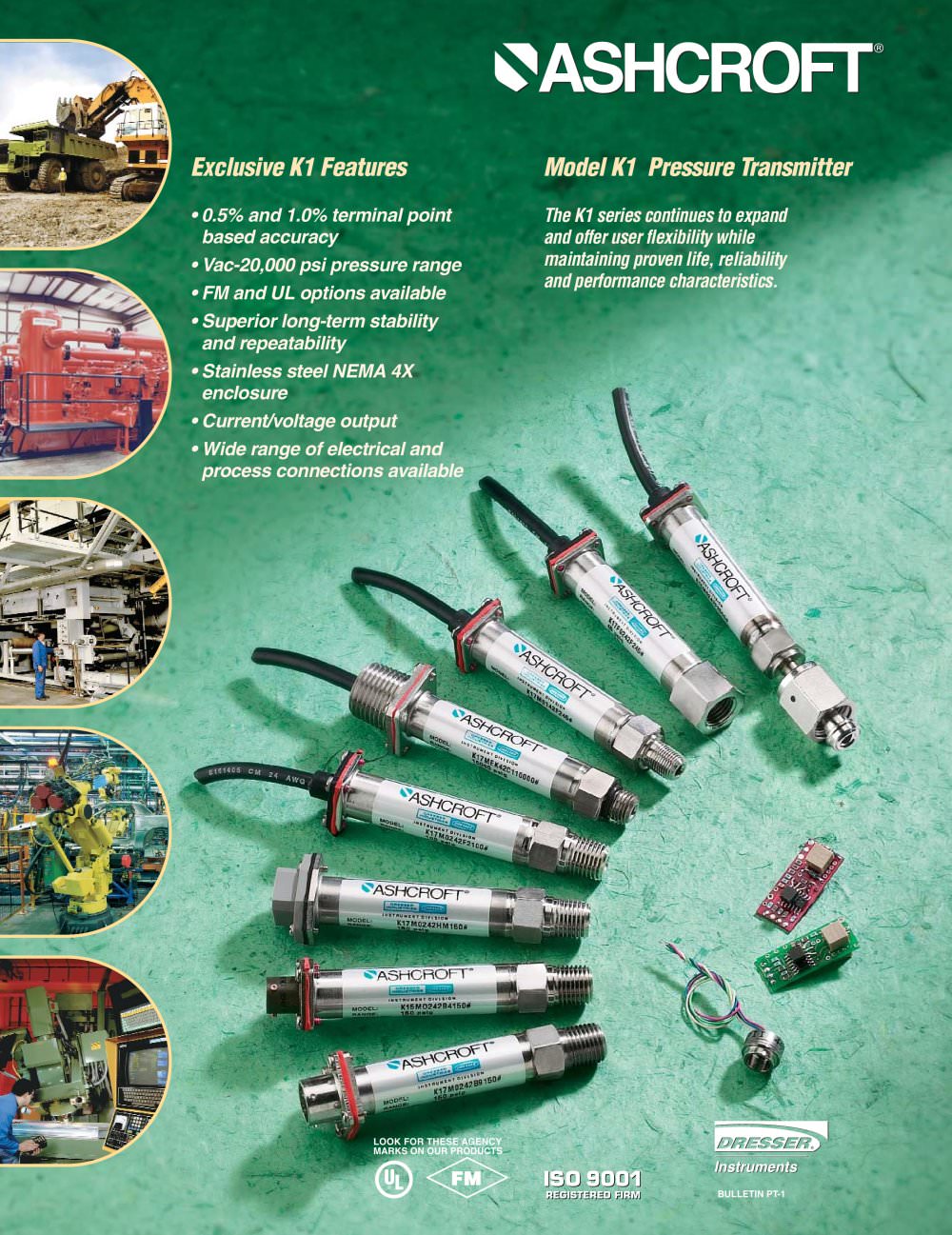

Pressure Transducers/Transmitters (High Pressure) - Model K1 Pressure Transmitter

Product catalog summary

Overview: The document provides detailed specifications and features of the K1 Pressure Transmitter, highlighting its accuracy, pressure range, stability, and environmental resilience. It emphasizes the product's flexibility, reliability, and performance.

Specifications:

Accuracy: Available in 0.5% and 1.0% terminal point-based accuracy.
Pressure Range: From vacuum to 20,000 psi.
Output: Current/voltage output options.
Enclosure: Stainless steel NEMA 4X.

Performance Characteristics:

Accuracy Class: 0.5% and 1.0% with specific nonlinearity, hysteresis, and nonrepeatability values.
Standard Ranges: Various psi ranges available, with specific ranges for 1% accuracy.
Stability: ±0.5% F.S./year non-cumulative.
Durability: 108 cycles with negligible performance change.
Response Time: Less than 5 milliseconds.

Environmental Characteristics:

Temperature Limits: Storage from –65 to +250°F, operating from –20 to +180°F.
Humidity: No performance effect at 95% relative humidity, non-condensing.

Functional Characteristics:

Overpressure: Proof and burst pressure ratings vary by range.
Vibration and Shock: Minimal effect on performance under specified conditions.

Electrical Specifications:

Output Signal: Options include 4-20mA, 1-5 Vdc, 1-6 Vdc, 1-11 Vdc, and 0.1-10 Vdc.
Supply Voltage: Ranges from 10-36 Vdc, depending on output signal.
Reverse Polarity Protection: Included.

Physical Specifications:

Process Connections: Various NPT and VCR options available.
Enclosure: NEMA 4X, with specific conditions for NEMA 1.
Weight: Approximately 2 oz without cable.

Certifications:

FM and UL Approvals: Intrinsically safe and non-incendive ratings for various classes and divisions.

Ordering Information: Detailed configuration options for pressure connection, electrical termination, accuracy, output signal, and pressure range.
