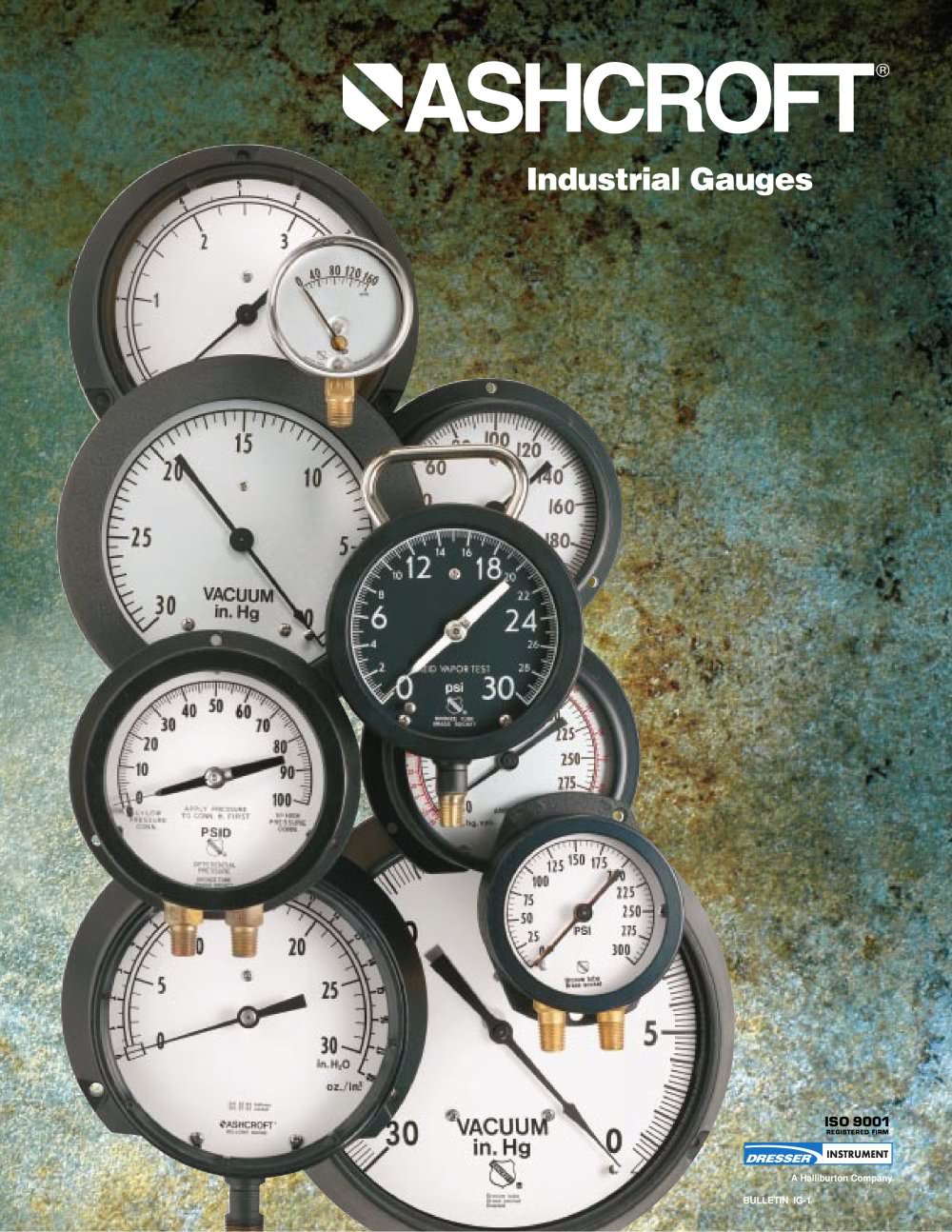

Industrial Gauges Type 1017

Industrial Gauges Type 1017

Product catalog summary

Introduction
Ashcroft industrial pressure gauges have been a trusted choice for over 150 years, adhering to ASME B40.1-1991 standards. They are versatile, available in various dial sizes, case styles, and materials, suitable for applications such as low-pressure, hydraulic, and refrigeration services. Specialized gauges are available for differential pressure and volatile petroleum liquids testing.

Pressure Gauge Selection
Key considerations for selecting an Ashcroft pressure gauge include:

Process Media: Choose appropriate Bourdon tube and socket materials.
Pressure Range: From 10 inches of water to 20,000 psi.
Operating Environment: Options include stainless steel, black epoxy-coated aluminum, and phenolic cases.
Accuracy: General service gauges offer 1% ASME Grade 1A accuracy.
Dial Size: Ranges from 2.5 to 8.5 inches.
Connections: Includes 1/4 NPT, 1/2 NPT, BSP, JIS, and SAE.
Mounting: Options for stem, surface, or flush mounting.

Specifications
The document details specifications for various gauge types, including accuracy, case style, material, dial size, and connection options. A specification matrix highlights unique features and applications of different gauge models.

Product Selection Information
Guidance is provided for selecting pressure gauges, emphasizing the importance of considering media and ambient conditions to prevent misapplication. Recommendations include selecting a gauge with a full-scale pressure range twice the normal operating pressure and avoiding exposure to temperatures over 150°F.

Media Application Table
A media application table ensures compatibility between the media and the wetted parts of the pressure instrument, listing various chemicals and suitable materials for pressure measurement.

Overview
The document provides detailed specifications and guidelines for Ashcroft pressure gauges, specifically Types 1010, 1017, and 1220, designed for industrial applications like boilers, compressors, and refrigeration systems.

Specifications
Gauges are available in materials such as brass, steel, stainless steel, and Monel, with diaphragm seal options. Dial sizes range from 4.5 to 12 inches, with pressure ranges from vacuum to 20,000 psi and 1% ASME Grade 1A accuracy.

Applications
Suitable for chemical, petrochemical, pulp and paper, and power plants, as well as hydraulic and refrigeration systems, with specific models for ammonia refrigeration.

Mounting and Connection Options
Mounting options include stem, surface, or flush, with connection sizes of 1/4 or 1/2 NPT and additional standards like JIS, BSP, DIN, and SAE.

Optional Features
Optional features include overload and underload stops, special dial markings, and different case and ring materials, as well as special connections and pointer adjustments.

Standard Ranges
Tables list standard metric and imperial pressure ranges, compound and vacuum ranges, and guidance on selecting the appropriate gauge based on application requirements.

Ordering Information
Instructions for ordering gauges specify dial size, case type, tube and socket material, connection size and location, and optional features.

Diagrams and Tables
Diagrams for case types and mounting options, as well as tables for pressure ranges and material compatibility, assist in selecting the correct gauge for specific applications.

Specifications
Details on Ashcroft pressure gauges with phosphor bronze Bourdon tubes and brass sockets, available with capillary attached to diaphragm seals for corrosive media. Pressure ranges from 30 psi to 1000 psi, with dial sizes of 3½˝, 4½˝, and 6˝, and cases made of aluminum or cast iron. Accuracy is 2-1-2% ASME grade A.

Procedures and Mounting
Mounting options include stem, surface, or flush, with connections available in ¼ NPT lower or back configurations.

Standards and Ranges
Standard pressure and metric ranges are provided, with detailed intervals and graduations, including compound ranges for specific applications.

Recommendations
Users should consult the corrosion data guide to ensure media compatibility with gauge wetted parts. Diaphragm seals are recommended for corrosive media.

Contact Information
Contact details for Dresser Instrument Division's sales and customer service locations worldwide are provided, including offices in Japan, Korea, Mexico, Saudi Arabia, Singapore, the United Kingdom, Venezuela, and various U.S. locations.

Catalog excerpts

Pressure Gauge Range available withranges as low as 10 inches of waterthrough 20,000 psi, Ashcroft industrialpressure gauges have been designedto meet your application needs. > Operating Environmen t available incase materials of stainless steel, black epoxy-coated aluminum and phenolic, these gauges have beendesigned to withstand the mostdemanding environments. Most areavailable with an optional built-inthrottle plug to help protect againstpressure surges or spikes. Ashcroft > ׮ industrial pressure gaugeshave earned a reputation for depend- ability as a mainstay in the marketplace for over 150...

Open the catalog to page 2

SpecificationsType1020103813391122 Gauge DescriptionXmas TreeDuplexDuplexGear Accuracy2%-1%-2% ASME Grade A2%-1%-2% ASME Grade A2%-1%-2% ASME Grade A2%-1%-2% ACase StyleOpen Front (dry only)Open Front (dry only)Open Front (dry only)Open Front Case Material304 Stainless SteelCast Iron 3 > 1 ΢D > 2 ˝, 6˝, Aluminum 4 > 1 ⁄ > 2 ˝Cast Aluminum,StainleBlack Epoxy CoatedBlack Epoxy Coated Dial Size4 > 1 ⁄ > 2 ˝(45)3 > 1 ⁄ > 2 ˝(35), 4 > 1 ⁄ > 2 ˝(45) , 6˝(60)4 > 1 ⁄ > 2 ˝(45) , 6 ˝ (60)2 > 1 ⁄ > 2 ˝ Dial Material & Color Brushed Aluminum with Brushed Aluminum withBrushed Aluminum withBrushed Alu Black...

Open the catalog to page 4

E/KF1125/1125A*550355091150 essDifferentialDifferentialDifferentialReid Vapor Test SME Grade A2%-1%-2% ASME Grade A1.6% Full Scale2.5% Full Scale.5% ASME Grade 2A(dry only)Open Front (dry only)Open Front (dry or liquid fill)Open Front (dry or liquid fill)Open Front (dry only) s SteelCast Aluminum, 304 Stainless Steel304 Stainless SteelCast AluminumBlack Epoxy CoatedBlack Epoxy Coated 25)4 > 1 ΢D > 2 ˝ (45)4 ˝ (100mm)(10), 6 ˝ (160mm)(16)4 ˝ (100mm)(10), 6 ˝ (160mm)(16)4 > 1 ⁄ > 2 ˝ (45)minum with Brushed Aluminum with White Aluminum withWhite Aluminum withBlack Aluminum with arkingsBlack MarkingsBlack...

Open the catalog to page 5

Pressure Elements: Rings: Cases: Available in a wide variety of materials, including: phosphor bronze, alloy steel, 316 stainless steel and K Monel. The ring, which retains the window, isbayonet (cam), or slip depending on the type number. Depending on the type, Ashcroft indus- trial gauges are available in aluminum,stainless steel or cast iron case materi-als. With the exception of Ashcroft Types 5503 and 5509, industrial gauges are not weatherproof or her- metically sealed. They are furnished standard with a pressure-relief plug. > WindowDialMovementCaseRelief Plug Mounting ScrewsNot SuppliedBourdon...

Open the catalog to page 6

The media being measured must becompatible with the wetted parts of the pressure instrument. To use the chartbelow, locate the media whose pressure is to be measured and select a suitable material from those available. This is a simplified chart and assumes the mediatemperature is below 200ΰF except formedia with an * which must be below 100F. Throttling devices and a liquid filled instrument are recommended in applications with pulsation or vibration. These recommendations are only a guide, as service life is dependent ontemperature, concentrations, catalyststhat may be added, or other conditions...

Open the catalog to page 7

Case and Ring OptionsCodeComments Flush Mounting Ring (black)50Available on 4 > 1 ⁄ > 2, ˝ 6˝ Type 1010 back connection. Flush Mounting Ring (black)20Available on 12˝ Type 1010 back connection. Flush Mounting Ring (polished SS)53Available on 4 > 1 ⁄ > 2, ˝ 6˝ Type 1010 back connection. Stainless Steel Polished Ring63Available on 4 > 1 ⁄ > 2, ˝ 6˝, and 8 > 1 ⁄ > 2 ˝ Type 1010. Chrome Plated Ring13Available on Type 1010, 1017. Flush Mounting Ring (black)54Available on 1220 back connection. Flush Mounting Ring (chrome plated steel)55Available on 1220 back connection. Bourdon Tube and System Assembly...

Open the catalog to page 12

Germany France Dresser Europe GmbH Postfach 11 20 Max-Planck-Str. 1 D-52499 Baesweiler Germany Tel: 49-2401-8080Fax: 49-2401-7027 China Dresser Europe GmbH Division Instrumentation 74, Rue d Arceuil F-94578, Silic 265, France Tel: 33-01-49-79-22-59Fax: 33-01-46-86-25-24 Canada Dresser Trading Room 2403, 24th Floor CITIC Bldg. 19 Jianguo Menwai St. Beijing, P.R.C. Tel: 86-10-6500-3139Fax: 86-10-6512-0300 International HeadquartersStratford, Connecticut Dresser Canada, Inc. 2135 Meadowpine Blvd. Mississauga, Ontario L5N 6L5 Canada Tel: 905-826-8411Fax: 905-826-9106 250 E. Main Street Stratford,...
