CXLdp Differential Pressure Transmitter

CXLdp Differential Pressure Transmitter

Product catalog summary

Introduction

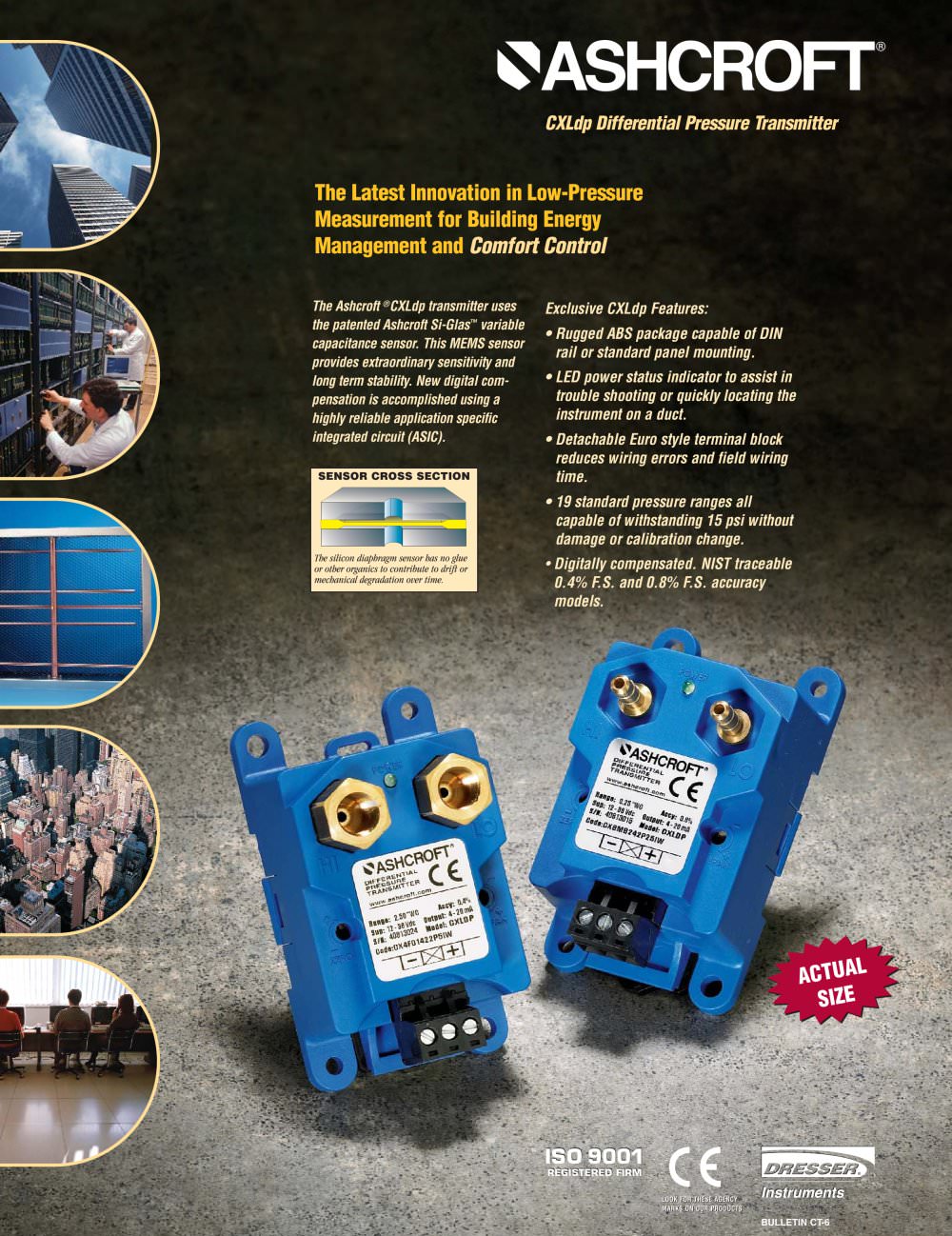

The CXLdp Differential Pressure Transmitter is an innovative solution for low-pressure measurement, designed for building energy management and comfort control. It features a rugged ABS package suitable for DIN rail or standard panel mounting, and includes a LED power status indicator for troubleshooting and quick location on ducts.

Exclusive Features

Detachable Euro style terminal block to minimize wiring errors and reduce field wiring time.
19 standard pressure ranges, all capable of withstanding 15 psi without damage or calibration change.
Digitally compensated with NIST traceable accuracy models of 0.4% F.S. and 0.8% F.S.

Sensor Technology
The transmitter uses the patented Ashcroft Si-Glas™ variable capacitance sensor, a MEMS sensor known for its sensitivity and long-term stability. It is digitally compensated using a reliable application-specific integrated circuit (ASIC).

Performance Characteristics

Accuracy Class: ±0.8% and ±0.4% F.S., including effects of linearity, hysteresis, and repeatability.
Stability: Maximum change of ≤0.5% F.S./year.
Response Time: 250 milliseconds.

Environmental Characteristics

Temperature Limits: Storage from –40 to 180°F, Operating from +0 to 160°F, Compensated Range from +35 to 130°F.
Temperature Coefficients: Zero and Span ±0.03% F.S./°F.
EMC: CE Compliant to EN61326 standards for heavy industrial environments.

Functional Characteristics

Overpressure Limits: Proof Pressure of 15 psi and Burst Pressure of 25 psi.
Mounting Position Effect: ±1% /g, with standard calibration in vertical position.

Electrical Specifications

Output Signal: 4-20mA (2 wire) with a power range of 12-36 Vdc.
Reverse Wiring Protection and externally accessible Zero and Span Adjustment.

Physical Characteristics

Pressure Connections: 1⁄4˝ brass barbed fittings and 1⁄8˝ NPT Female brass.
Enclosure: NEMA Type 1 Fire-retardant ABS, meeting UL 94-5VA standards.
Weight: Approximately 2.5 oz.

Ordering Information
Various configurations are available based on connection type, accuracy, output signal, and pressure range. Options include a 1⁄2˝ conduit/plenum mounting bracket and cover kit.
