Commercial Gauges - Type 1005 - 1005P

Commercial Gauges - Type 1005 - 1005P

Commercial Gauges - Type 1005 - 1005P

Product catalog summary
Overview: The document is a technical bulletin for Ashcroft Type 1005P and 1005 pressure gauges, highlighting their applications, features, and specifications. These gauges are used in various industries including medical, automotive, and industrial machinery.
Key Features:
  • True Zero™ Indication: Ensures accurate zero pressure indication, enhancing safety and reducing costs.
  • PowerFlex™ Movement: Patented design offering resistance to shock, vibration, and pulsation, ensuring accuracy and longevity.
  • Material and Design: Type 1005P features an ABS case with a polycarbonate window, providing impact and corrosion resistance. Type 1005 uses a black painted steel case.
Specifications:
  • Sizes: Available in 1½", 2", 2½", and 3½".
  • Accuracy: ASME B40.1, Grade B, ±3-2-3%.
  • Temperature Range: Operating temperatures from -40°F to 150°F (-40°C to 65°C).
  • Pressure Ranges: Vacuum to 6000 psi, with various connection options.
Optional Features:
  • Adjustable pointers, customized dials, and special calibration options.
  • Additional corrosion resistance with aluminum dials.
  • UL listings for compressed gas service (excluding oxygen).
Ordering Information: Detailed instructions on how to specify gauge configurations, including dial size, movement type, case material, and pressure range.
Contact Information: Lists international and U.S. sales offices for customer service and support.
See more

Catalog excerpts

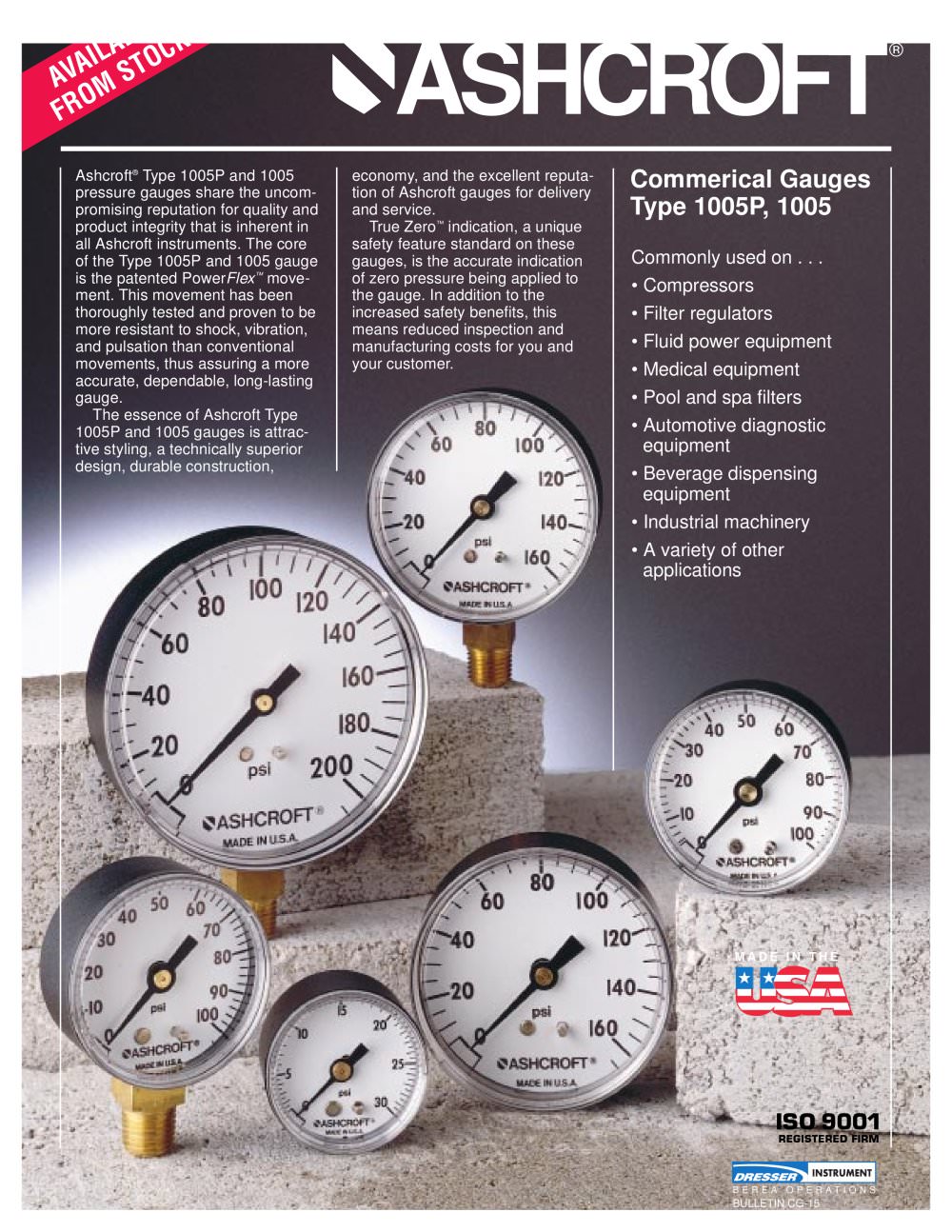

Commercial Gauges - Type 1005 - 1005P -1

Type 1005P and 1005pressure gauges share the uncom- promising reputation for quality and product integrity that is inherent in all Ashcroft instruments. The core of the Type 1005P and 1005 gauge is the patented Power economy, and the excellent reputa-tion of Ashcroft gauges for delivery and service.True Zero > Ι indication, a uniquesafety feature standard on these gauges, is the accurate indication of zero pressure being applied to the gauge. In addition to the increased safety benefits, this means reduced inspection and manufacturing costs for you and your customer. Ashcroft > Flex > ՙ move-ment. This movement has been thoroughly tested and proven to be more resistant to shock, vibration, and pulsation than conventional movements, thus assuring a more accurate, dependable, long-lasting gauge.The essence of Ashcroft Type 1005P and 1005 gauges is attrac- tive styling, a technically superior design, durable construction, > MADE IN THE BEREA OPERATIONS BULLETIN CG-15 size="-2">

 Open the catalog to page 1
Commercial Gauges - Type 1005 - 1005P -4

Instrument Division Sales and Customer Service Locations Germany France Dresser Europe S.A. Instrument Division Postfach 11 20 Max-Planck-Str. 1 D-52499 Baesweiler Germany Tel: 49-2401-8080Fax: 49-2401-7027 China Dresser Europe S.A. Division Instrumentation 5, Rue d'Antony F-94563 Rungis Cedex Silic 192, France Tel: 33-01-49-79-22-80Fax: 33-01-46-86-25-24 International HeadquartersStratford, Connecticut Canada Dresser Trading Room 3, 24th Floor CITIC Bldg. 19 Jianguo Menwai St. Beijing, P.R.C. Tel: 86-1-6500-3139Fax: 86-1-6512-0300 Dresser Canada, Inc. 2135 Meadowpine Blvd. Mississauga, Ontario...

 Open the catalog to page 4
