Storage

Product catalog summary
Chip Bunker 6m³
  • Driving Power: Raker: 0.75 kW, Worm conveyor 500 kg/h: 0.55 kW, Worm conveyor 1000 kg/h: 0.75 kW
  • Weight (empty): Approximately 2800 kg
  • Dimensions (L x B x H): 3160 x 2700 x 3700 mm
  • Feed Height / Opening Diameter: Minimum 2400 mm / Maximum Ø2100 mm
  • Note: Subject to technical changes
Container Bunker 18 m³
  • Driving Power of Worm Conveyor: 2 x 4 kW
  • Weight: Approximately 4050 kg
  • Dimensions (L x B x H): 7400 x 2000 x 2000 mm (height extendable)
  • Note: Subject to technical changes
Silo System 10 m³
  • Number of Chambers: Any
  • Chamber Volume: 10 m³
  • Filling Weight per Chamber: 20000 kg
  • Options: Available on request
  • Note: Subject to technical changes
Silo System 25 m³
  • Number of Chambers: Any
  • Chamber Volume: 25 m³
  • Filling Weight per Chamber: 18000 kg
  • Options: Available on request
  • Note: Subject to technical changes
See more

Catalog excerpts

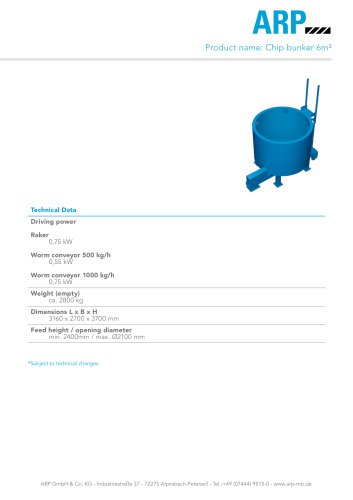

Storage-1

Product name: Chip bunker 6m³ Technical Data Driving power Raker 0,75 kW Worm conveyor 500 kg/h 0,55 kW Worm conveyor 1000 kg/h 0,75 kW Weight (empty) ca. 2800 kg Dimensions L x B x H 3160 x 2700 x 3700 mm Feed height / opening diameter min. 2400mm / max. Ø2100 mm *Subject to technical changes ARP GmbH & Co. KG - Industriestraße 37 - 72275 Alpirsbach-Peterzell - Tel.:+49 (07444) 9515-0 - www.arp-mb.de

 Open the catalog to page 1
Storage-2

Product name: Container bunker 18 m³ Technical data Driving power of worm conveyor 2 x 4 kW Weight ca. 4050kg Dimensions L x B x H 7400 x 2000 x 2000 mm (height extendable) *Subject to technical changes ARP GmbH & Co. KG - Industriestraße 37 - 72275 Alpirsbach-Peterzell - Tel.:+49 (07444) 9515-0 - www.arp-mb.de

 Open the catalog to page 2
Storage-3

Product name: Silo system 10 m³ Technical data Number of chambers any Chamber volume 10 m³ Filling weight per chamber 20000 kg Options On request *Subject to technical changes ARP GmbH & Co. KG - Industriestraße 37 - 72275 Alpirsbach-Peterzell - Tel.:+49 (07444) 9515-0 - www.arp-mb.de

 Open the catalog to page 3
Storage-4

Product name: Silo system 25 m³ Technical data Number of chambers any Chamber volume 25 m³ Filling weight per chamber 18000 kg Options On request *Subject to technical changes ARP GmbH & Co. KG - Industriestraße 37 - 72275 Alpirsbach-Peterzell - Tel.:+49 (07444) 9515-0 - www.arp-mb.de

 Open the catalog to page 4

All ARP GmbH & Co. KG catalogs and technical brochures

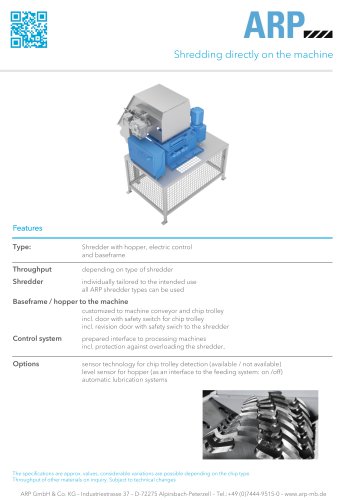

  1. Shredding directly on the machine
    Shredding directly on the machine

    1  Page

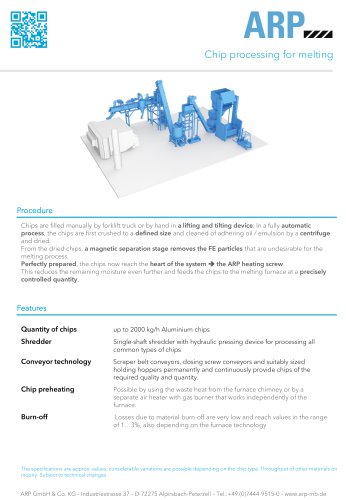

  2. Chip processing for melting
    Chip processing for melting

    1  Page

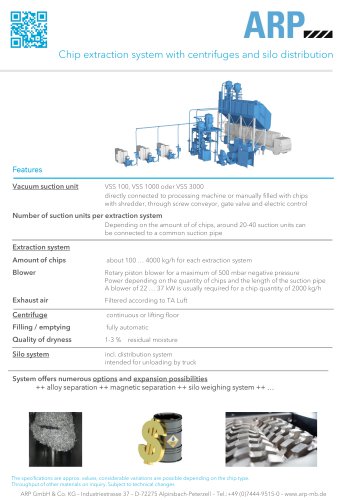

  3. Chip extraction system with centrifuges and silo distribution
    Chip extraction system with centrifuges and silo distribution

    1  Page

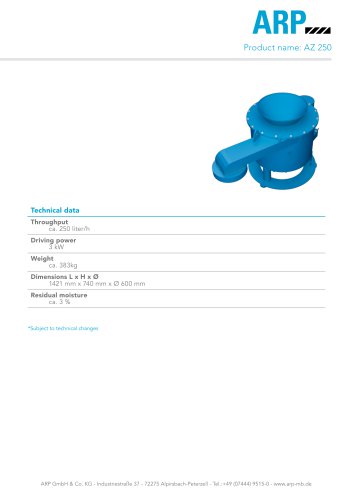

  4. AZ 250 / AZ 3500
    AZ 250 / AZ 3500

    2  Pages

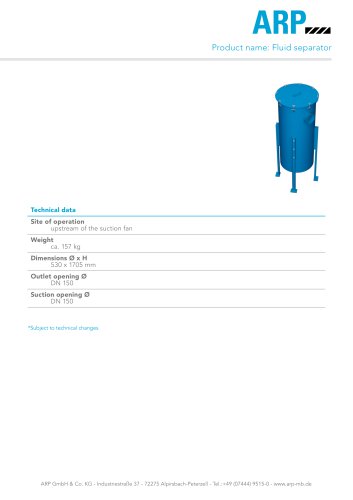

  5. Fluid separator
    Fluid separator

    1  Page

  6. Filter unit Ø850
    Filter unit Ø850

    3  Pages

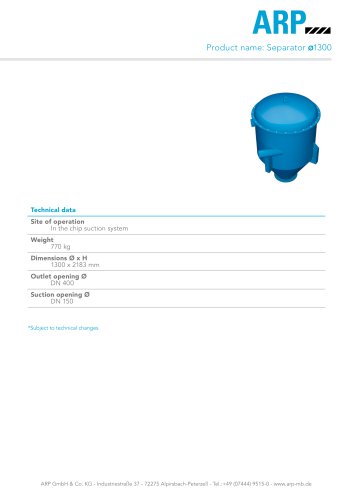

  7. Separator Ø1300
    Separator Ø1300

    2  Pages

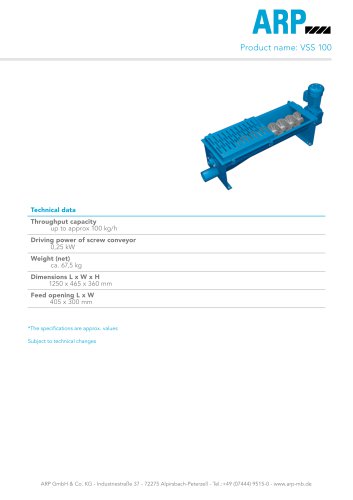

  8. VSS 100
    VSS 100

    6  Pages

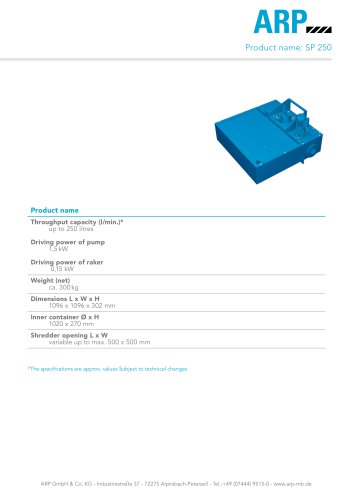

  9. Chip pumping stations
