compact system

Product catalog summary
Technical Specifications:
  • Lift and Tilting Device: Designed for containers approximately 200 liters in size, with an extendable option. The lifting capacity is 200 kg, powered by either a hydraulic or electric drive.
  • Shredder ZW 500: Equipped with a feed bin and chip-feeding system. The drive motor options are 5.5 kW or 7.5 kW, with a scraper drive of 0.75 kW. The feed bin has a capacity of about 1.7 m3. It can process 250-300 kg/h of steel or stainless steel chips, with other materials available upon request.
  • Scraper Conveyor: Includes a lifting pump with a drive motor of 0.55 kW.
  • Briquetting Press: Capable of recovering 30-40 liters of oil per hour, starting from 10-15% oil adhering to the chips before pressing. The drive motor is 15 kW, with a pressure of 4000 kg/cm2. The briquette size is Ø70 x 90mm, with a mass of about 1.2 kg.
Additional Information:
  • The specifications provided are approximate and may vary significantly depending on the type of chips processed.
  • Throughput for other materials is available upon inquiry.
  • Technical changes are subject to occur.
Contact Information: ARP GmbH & Co. KG, Industriestrasse 37, D-72275 Alpirsbach-Peterzell, Tel.: +49 (0)7444-9515-0, www.arp-mb.de
See more

Catalog excerpts

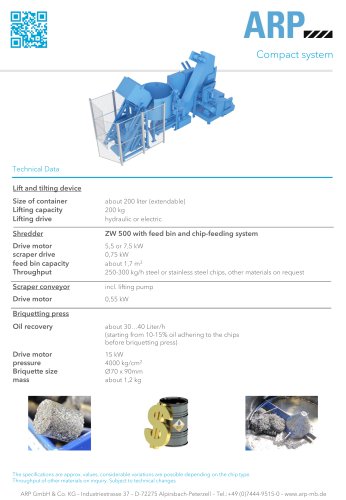

compact system-1

Compact system Technical Data Lift and tilting device Size of container Lifting capacity Lifting drive about 200 liter (extendable) 200 kg hydraulic or electric ZW 500 with feed bin and chip-feeding system Drive motor scraper drive feed bin capacity Throughput 5,5 or 7,5 kW 0,75 kW about 1,7 m3 250-300 kg/h steel or stainless steel chips, other materials on request Scraper conveyor incl. lifting pump Drive motor Briquetting press Oil recovery about 30…40 Liter/h (starting from 10-15% oil adhering to the chips before briquetting press) Drive motor pressure Briquette size mass The specifications are approx. values, considerable variations are possible depending on the chip type. Throughput of other materials on inquiry. Subject to technical changes ARP GmbH & Co. KG – Industriestrasse 37 – D-72275 Alpirsbach-Peterzell – Tel.:+49 (0)7444-9515-0 – www.a

 Open the catalog to page 1
