ARO OMEGA

Product catalog summary

Introduction

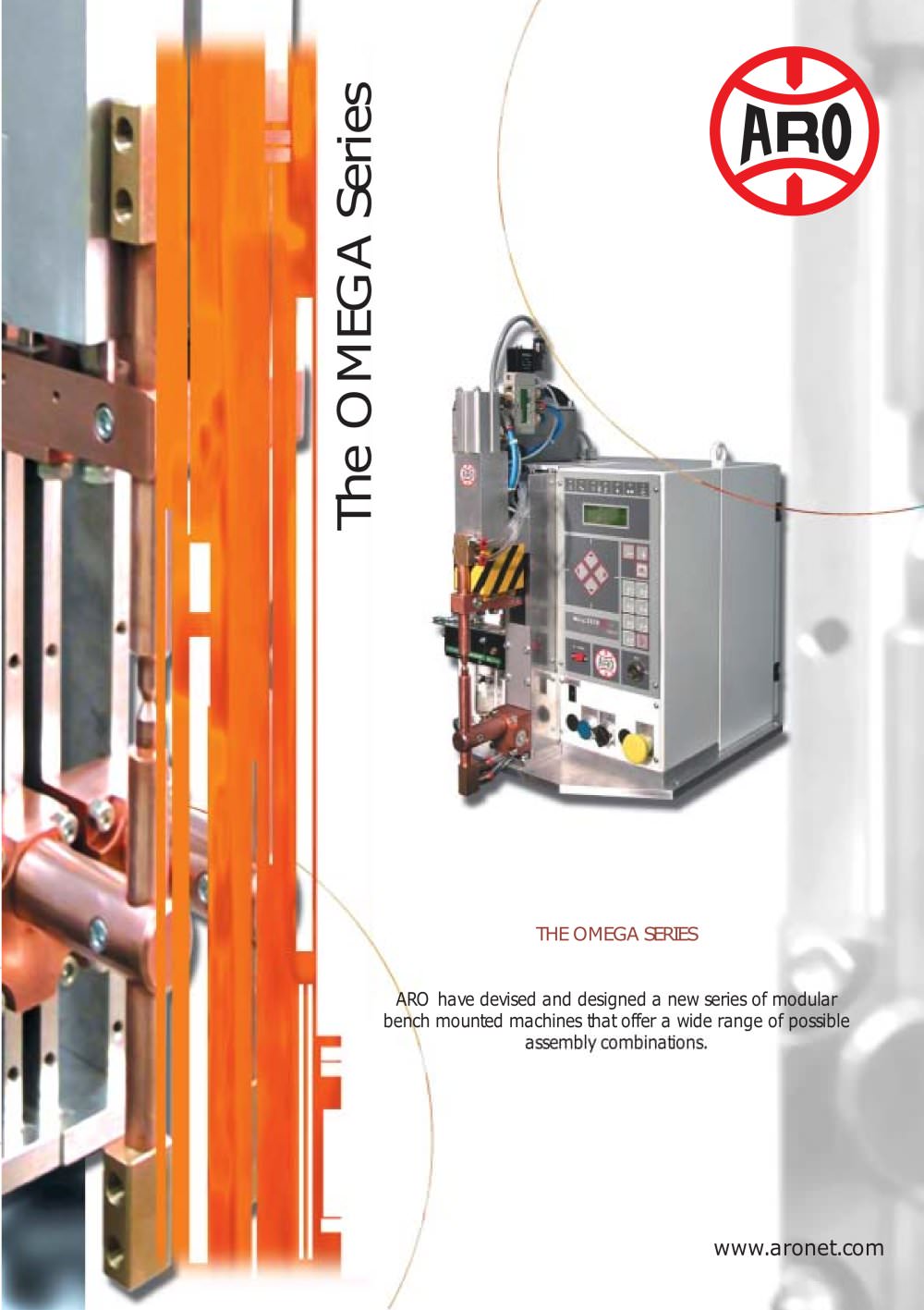

The document provides an overview of the OMEGA series of modular bench-mounted machines designed by ARO. These machines offer a variety of assembly combinations and are equipped with advanced welding cabinet controllers.

Product Specifications
The OMEGA series includes models such as ΩMEGA 10 and ΩMEGA 25, each with specific power ratings and dimensions. Key specifications include:

Conventional power at 50%: 11.4 kVA for ΩMEGA 10 and 25 kVA for ΩMEGA 25.
Permanent power at 100%: 8 kVA for ΩMEGA 10 and 18 kVA for ΩMEGA 25.
Maximum short circuit current: 8000 A for ΩMEGA 10 and 12000 A for ΩMEGA 25.
Dimensions: 660 x 440 x 546 mm for both models.

Welding Cabinet Controller Functions
The AR.01 and 2X16III controllers offer various functions, including:

Multiple welding programs (2 for AR.01 and 16 for 2X16III).
Adjustable squeeze, welding, and hold periods.
Current control and adjustment features.
Electrode wear monitoring and compensation.
Support for single and series spot welding.

ARO Electrodes
ARO electrodes are recognized as industry standards, offering enhanced service life and work quality due to extensive testing and experience since 1949.

Additional Features
The OMEGA series machines are adaptable for various applications, including precision welding and large-scale production. They feature ergonomic designs, programmable outputs, and options for load and pressure sensors.

Conclusion
The OMEGA series by ARO provides a versatile and advanced solution for precision welding needs, with customizable options to meet specific production requirements.

Catalog excerpts

A FULLY ADAPTIVE PRECISION WELDING SOLUTION ARO will create the product to meet those needs: |2MEGA 10 (11 kVA power level at 50%, 50Hz AC) |ã2MEGA 25 (25 kVA power level at 50%, 50Hz AC) |2MEGA 32 MFDC (32 kVA power level at 50%, 1000Hz) su'* H single cylinder welding units H double cylinder welding units H force / pressure levels from 0,48 kN / 6 bar **** H The ability to offer different combinations of welding units from 50 mm between electrode centers. H The slim designs of the heads make it possible to keep the air, water and current supplies within the overall dimensions of the welding...

Open the catalog to page 2

Product spcifications Welding cabinet controller AR.01 AND 2X16III FUNCTIONS PRODUCT SPECIFICATIONS Units OMEGA 10 OMEGA 25 Conventional power at 50 % kVA 11,4 25 Effective depth mm 100 100 Permanent power at 100% kVA co 18 Permanent current A 2300 4000 Secondary no-load voltage V 3,5 4,5 Maximum short circuit current (table up) A 8000 12000 Primary voltage rating V 400 400 Consumed power kVA 17 32 Cable section (for 20 m) mm2 6 10 Fuse A 20 50 Force Electrode at 6 bar kN 0,48 0,48 Force Electrode at 1 bar kN 0,08 0,08 Effective spacing mm 153 to 221 153 to 221 Air connection mm 1/4" int. dia....

Open the catalog to page 3
