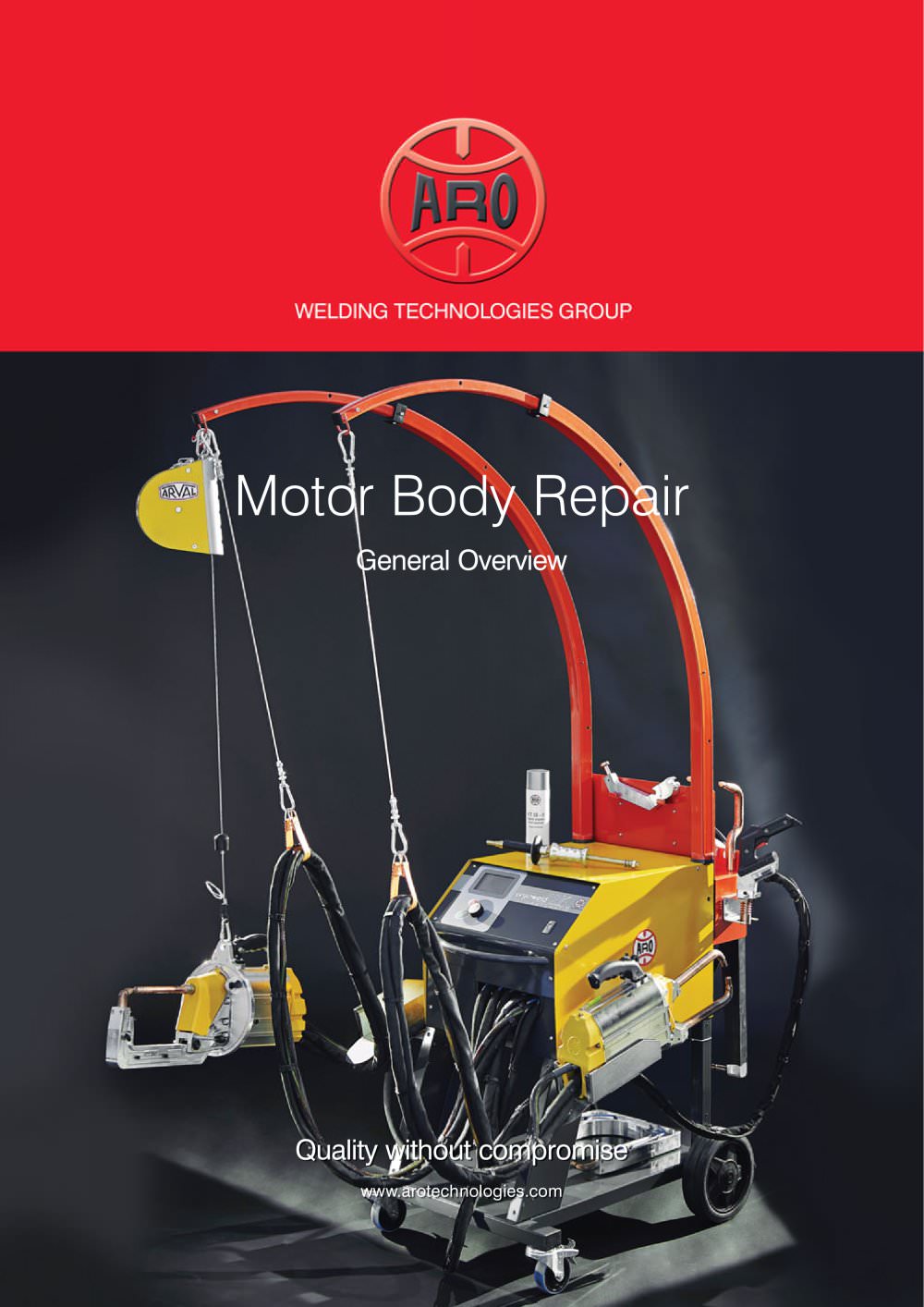

Motor Body Repair General Overview Quality without compromise www.arotechnologies.com

Motor body repair About Since the middle of the 20th Century, the name ARO has been synonymous with resistance welding. Today the ARO Welding Technologies Group is a world leader in welding system solutions to the automotive and other industries. Widely acclaimed as the leader in its field, ARO's welding systems and ancillary equipment are chosen by clients who recognise ARO’s superior functionality and reliability. Added to which every ARO product is designed to provide the client with the lowest life cycle costs. With its headquarters based in Chateau du Loir, near Le Mans in France, and through...

ergoweld, the automatic generation The request from machine operators was simple: a spot welder producing perfect spots every time by a press of the gun trigger regardless of material, thickness and the gun Welcome to the ergoweld 14K automatic. What is a good spot ? And it works! 100% of the spots proved to be good In just a few months, tests were conducted with over 30 different materials, coated and non-coated, in varying thicknesses and with hundreds of electrodes, umpteen test coupons and tens of thousands of spot welds made on 2 The system designed is very simple and reliable: the weld...

ergoweld: inverter spot welder range New automatic spotwelder, totally redesigned, available in 2 models, both in single or double guns versions: • ergoweld 14K automatic, 13000A, water cooled • ergoweld 12K automatic, 11500A, air cooled • The 2 new designed guns with - 3m extra flexible cables - Robust and compact design, body entirely nickel plated - effort at the tips up to 600 daN at 5 bars - Double stroke on each machine - Fast arm exchange system • Automatic mode on each gun • Real single sided gun, air cooled, 3m, allowing 9000A • Full accessory pack: quick fitting swivel kit, accessory...

Welding Guns Arms and electrodes for ergoweld guns: Water cooled X gun 450 daN at 5 bars D25 water cooled arms and caps for X gun – up to 450mm Water cooled C gun arms and electrodes – up to 600mm Fender edge kit Spring balancer Water cooled C gun 600 daN at 5 bars Swivel kit for X and C gun The quick fitting swivel kit allows a rotation of the gun of 360° improving even more the gun handling ergonomy. Included in the standard ergoweld package, it is suitable with both X and C guns. Single sided gun for spot welding from one side and dent pulling ergoweld Accessories Accessory kit HMI04040 includes:...

AROMIG: the range of MIG welders AROMIG Inverter 270 New synergic high performing MIG, 270A 400V, ideal for welding all the new material and for MIG brazing. Reference to order Single wire feeder Double wire feeder Technical characteristics Current range Voltage Duty factor at 60% Available in 2 versions single and double wire feeder. Automatic, without adjustment, you have only to select the thickness. DUO PLUS function, SD card driver, delivered with Twist torches, wire coils and gas gauges. AROMIG I200 version 2 and 3+2 New inverter MIG synergic and pulsed 200 A – 230V in 2 versions: double...

Microspot: dent puller Microspot M4 - for steel Microspot M6 – special aluminium Dent puller unit for steel panels, compatible with Air Puller and accessories from the ARO range. Capacitor discharge dent puller unit for aluminium panels. Delivered with a 2m gun with integrated earth pad. Delivered with a 2m gun, earth pad and accessories. Optional accessories kit available. Optional trolley available. Equipped with diam 5mm electrode. Reference to order Complete M4 unit Trolley for M4 Technical characteristics Weight Mains supply Secondary current Reference to order Complete unit Accessory kit...

ARO Welding Technologies Inc 48500 Structural Drive Chesterfield Township MI 48051 USA T +1 (1)586 949 9353 F +1 (1)586 949 4493 E [email protected] ARO Welding Technologies GmbH Blücherstraße 135b 86165 Augsburg GERMANY T +49 (0)821 797 1980 F +49 (0)821 797 1251 E [email protected] ARO Welding Technologies SA-NV Koningin Astridlaan 61 1780 Wemmel BELGIUM T +32 (0) 2 555 0750 F +32 (0) 2 523 2024 E [email protected] ARO Welding Technologies Ltd Unit 15, Planetary Industrial Estate Planetary Road Willenhall Wolverhampton, WV13 3XA ENGLAND, UK T +44 (0)1902 738 214 F...
