Product catalog summary

Overview: Ingersoll Rand Industrial Technologies provides a range of ink pumps and accessories aimed at improving energy efficiency, productivity, and operations in the printing industry. These products accommodate various ink viscosities and applications, promoting faster production, reduced material waste, and minimized pump downtime.

Key Features of ARO Ink Pumps:

Versatility: Suitable for a wide range of ink viscosities, from low-viscosity flexo inks to high-viscosity paste inks.
Durability: Features abrasion-resistant packings such as UHMW-PE and Thiokol Leather/UHMW-PE combinations for optimal leak resistance.
Efficiency: Designed to prevent ink wastage and contamination through closed ink supply systems.
Safety: Eliminates ink spills, enhancing workplace safety.

Design Features:

Tie-Rod Design: Facilitates easy maintenance with quick access.
High Flow Inlet Valve: Ensures maximum prime ability and prevents packing failure.
Wide Range: Offers various ratios and displacements for different applications.

Product Specifications:

Materials: Constructed from carbon steel and stainless steel with hard chrome plating for enhanced durability.
Performance: Models offer varying air inlet pressure ranges, fluid pressure ranges, and flow rates to meet specific needs.
Accessories: Includes air filters, regulators, mufflers, and mounting kits to complement the pump systems.

Applications: ARO ink pumps are utilized by newspapers, commercial printers, book publishers, and ink manufacturers.

Warranty: Products come with a 5-year warranty, ensuring reliability and customer satisfaction.

Pump Performance and Specifications: Detailed specifications are provided for two pump types: an 8” 28:1 Carbon Steel Chop Check Pump and a 12” 30:1 Carbon Steel Chop Check Pump. Key metrics include air inlet pressure range, fluid pressure range, maximum recommended cycles per minute, displacement per cycle, and flow rate. Noise levels at 60 PSI are also specified.

Materials and Construction: Pumps are made using carbon steel and hard chrome plated stainless steel. Poly-Pak® seals and abrasion-resistant hard chrome plated plungers are highlighted for improved endurance. The tie-rod design allows fast access, and UHMW-PE packings ensure maximum compatibility.

Ordering and Accessories: Various packing and spring configurations are available, including UHMW-PE and polyurethane options. Accessories such as air F/R/L, airline oil, air motor muffler, and floor mounts are listed with model numbers.

Rams and Ink Pump Accessories: Different types of rams for various container sizes and viscosities are described, including extra heavy-duty and light-duty rams. Ink pump accessories like material supply hoses, ball valves, and pump stabilizing brackets are detailed.

Diaphragm Pump Design Features: ARO diaphragm pumps are noted for handling abrasion and solids without rotating seals. The bolted construction ensures reliability and ease of assembly. The patented "Unbalanced" air valve design prevents stalling, and the "Quick-Dump" exhaust valve design eliminates air motor icing.

Model Overview: An overview of various diaphragm pump models is provided, detailing maximum flow rates, discharge pressures, fluid port sizes, and materials of construction. Best-selling models for different configurations are listed.

Specifications: Detailed specifications for various pump models, including 1-1/2” to 3” models, both metallic and non-metallic, are provided. Key specifications include maximum flow rates from 90 to 275 GPM, maximum operating pressure of 120 PSI, and fluid port sizes from 1-1/2” to 3”. Materials used include polypropylene, aluminum, stainless steel, and cast iron.

Procedures and Recommendations: Recommended filters and regulators are specified for each pump model, along with corresponding air line kits. The importance of using the correct components for optimal performance is emphasized.

Warranty Information: A five-year warranty for ARO manufactured products is outlined, covering defects in material or workmanship. Conditions for warranty validity and the process for returning defective products are specified.

Standards and Certifications: Pumps are manufactured at a facility registered to the ISO 9001 standard, ensuring quality management compliance.

Performance Data: Noise emissions data is provided, with sound levels measured in decibels for various pump models. A viscosity conversion chart assists in selecting the appropriate pump for specific fluid viscosities.

Material Service Guidelines: A table rates materials like Acetal, Aluminum, Buna N, and others based on temperature limits, chemical resistance, abrasion resistance, and flex life, aiding in selecting materials compatible with specific applications.

Key Tables and Charts: Several tables provide critical data, such as maximum solids handling capacity, best-selling models, and sound pressure levels. A viscosity conversion chart helps translate between different measurement units for fluid viscosity.

Catalog excerpts

Ink Pumps and Accessories for the Printing Industry Ingersoll Rand Industrial Technologies provides products, services and solutions that enhance our customers' energy efficiency, productivity and operations. Our diverse and innovative products range from complete compressed air systems, tools and pumps to material and fluid handling systems. We also enhance productivity through solutions created by Club Car®, the global leader in golf and utility vehicles for businesses and individuals. www.ingersollrandproducts.com ©2010 Ingersoll-Rand Company IRITS-1210-089

Open the catalog to page 1

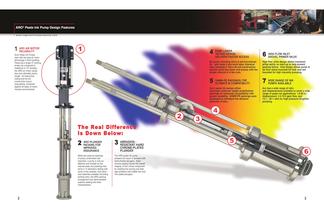

ARO® Paste Ink Pump Design Features w w w. i n g e rs o l l r a n d p ro d u c t s . c o m ARO AIR MOTOR 1 RELIABILITY Aro’s Paste Ink Pumps start with the best air motor technology in fluid handling. Featuring a longer 6” working stroke (as compared to traditional 4-1/2” strokes), the ARO air motor cycles less and ultimately works longer. Its heavy-duty casing and tie-rod construction insure long-lasting protection against all types of harsh, invasive environments. 1 4 6 HIGH FLOW INLET SHOVEL PRIMER VALVE 7 WIDE RANGE OF INK PUMPS AVAILABLE No pump, including Aroʼs,is service-exempt. So why...
