5-Gallon Extrusion Packages and Rams for mastics, sealants, and adhesives

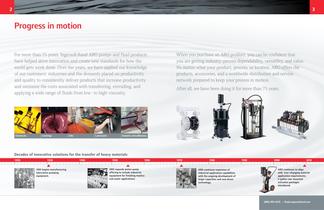

For more than 75 years, Ingersoll Rand ARO pumps and fluid products have helped drive innovation and create new standards for how the world gets work done. Over the years, we have applied our knowledge of our customers' industries and the demands placed on productivity and quality to consistently deliver products that increase productivity and minimize the costs associated with transferring, extruding, and applying a wide range of fluids from low- to high-viscosity When you purchase an ARO product, you can be confident that you are getting industry-proven dependability, versatility, and value....

4 5 Pump selection guide Viscosity is the biggest challenge in any extrusion application. By knowing the viscosity of the material being extruded, the flow rate required, line size, and distance from the application, you’re able to determine the pump ratio best suited to your needs. Whether you’re transferring, extruding, coating, or dispensing, it’s important that you match the right pump with your particular application requirements. The following chart and back pressure calculations will help make that task easier. Back pressure 8,000 (551) Back pressure is the friction within a plumbing system...

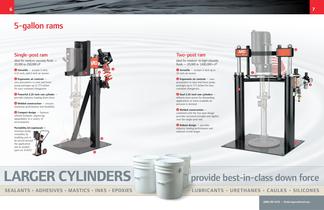

6 7 5-gallon rams 5 Single-post ram Two-post ram Ideal for medium-viscosity fluids — 20,000 to 250,000 cP Ideal for medium- to high-viscosity fluids — 20,000 to 1,000,000+ cP Versatile — accepts 3-inch, 4.25-inch, and 6-inch air motors 2 1 3 1 1 Versatile — accepts 3-inch up to 10-inch air motors 2 Ergonomic air controls — uses pneumatics to raise and lower pump packages up to 17.5 inches for easy container changeouts 2 Ergonomic air controls — uses pneumatics to raise and lower pump packages up to 17.5 inches for easy container changeouts 3 Powerful 3.25-inch ram cylinder — provides industry-leading...

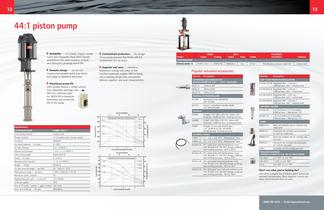

Lower pump material Plunger material ► Reliability — our pumps employ longer strokes that cycle less frequently delivering the same quantity of fluid with less pulsation than other brands, and ultimately prolonging motor life construction permits quick tear-down and repair to minimize downtime ► Maximized pump life — ARO pumps feature a visible solvent Wet Sol™ lubricant (part ► Superior seal wear — extensive laboratory testing with some of the harshest materials enables ARO to bring you a packing design that consistently delivers superior seal wear characteristics ► Optimized suction and priming...

Lower pump material Plunger material ► Reliability — our pumps' long 6" stroke cycles less frequently than other brands and delivers the same quantity of fluid and ultimately prolongs motor life construction permits quick tear-down and repair to minimize downtime ► Maximized pump life — ARO pumps feature a visible solvent Wet Sol™ lubricant (part Carbon steel 17-4 stainless steel, chrome-plated Exhaust port (female) Lower pump model Material outlet (female) Air inlet pressure range — psi (bar) Fluid pressure range — psi (bar) Maximum cycles / minute Flow @ 70 cycles / minute — gpm (L/min) 3.8...

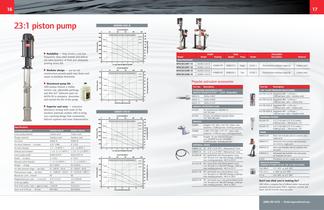

► Reliability — long strokes cycle less frequently than other brands and deliver the same quantity of fluid and ultimately prolong motor life construction permits quick tear-down and repair to minimize downtime ► Maximized pump life — ARO pumps feature a visible solvent cup, adjustable packings, and Wet Sol™ lubricant (part no. and extend the life of the pump ► Superior seal wear — extensive laboratory testing with some of the harshest materials enables ARO to bring you a packing design that consistently delivers superior seal wear characteristics EXTRUSION PUMP Lower pump material Carbon steel...

Distributed by: Ingersoll Rand Industrial Technologies provides products, services, and solutions that enhance our customers’ energy efficiency, productivity, and operations. Our diverse and innovative products range from complete compressed air systems, tools, and pumps to material and fluid handling systems and environmentally friendly microturbines. We also enhance productivity through solutions created by Club Car®, the global leader in golf and utility vehicles for businesses and individuals. (800) 495-0276 • fluids.ingersollrand.com © 2008 Ingersoll-Rand Company IRITS-1108-125
