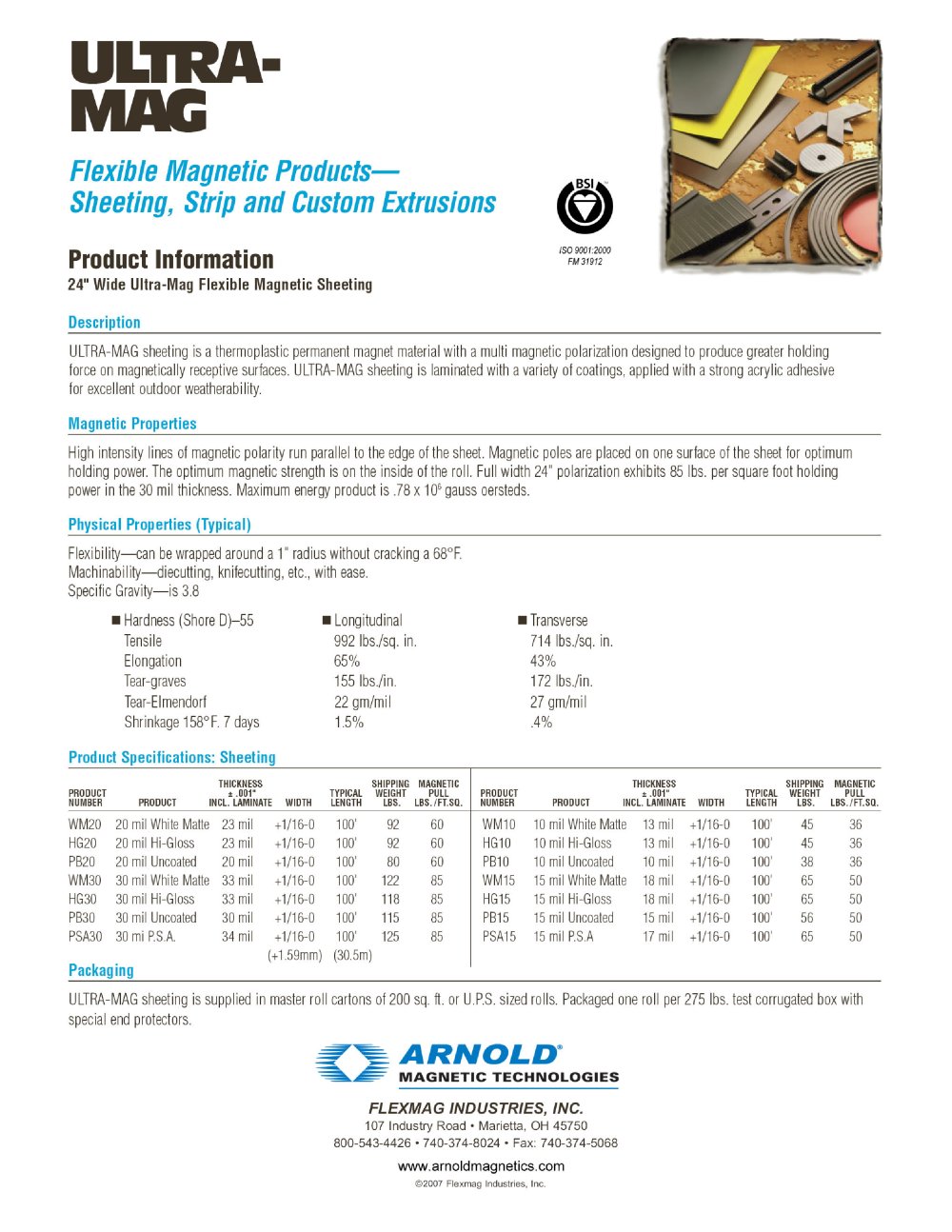

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:18.00pt "Arial Black", sans-serif; } .font6 { font:15.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:6.75pt "Lucida Sans Unicode", sans-serif; } .font9 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font10 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font11 { font:9.00pt "Lucida Sans Unicode", sans-serif; } Flexible Magnetic Products Sheeting, Strip and Custom Extrusions Product Information 24" Wide Ultra-Mag Flexible Magnetic Sheeting Description BSIi ISO 9001:2000 FM 31912 ULTRA-MAG sheeting is a thermoplastic permanent magnet material with a multi magnetic polarization designed to produce greater holding force on magnetically rשceptive surfaces. ULTRA-MAG sheeting is laminated with a variety of coatings, applied with a strong acrylic adhesive for excellent outdoor weatherability. Magnetic Properties High intensity lines of magnetic polarity run parallel to the edge of the sheet. Magnetic ples are placed on one surface of the sheet for optimum holding power. The optimum magnetic strength is on the inside of the roll. Full width 24" polarization exhibits 85 Ibs. per square foot holding power in the 30 mil thickness. Maximum energy product is .78 x 106 gauss oersteds. Physical Properties (Typical) Flexibilitycan be wrapped around a 1" radius without cracking a 68°F. Machinability䗗diecutting, knifecutting, etc., with ease. Spcifie Gravityis 3.8 ■ Hardness (Shore D)-55 ■ Longitudinal Tensile 992 Ibs./sq. in. Elongation 65% Tear-graves 155 Ibs./in. Tear-Elmendorf 22 gm/mil Shrinkage 158°F. 7 days 1.5% Product Sp闩cifications: Sheeting Transverse 714 Ibs./sq. in. 43% 172 Ibs./in. 27 gm/mil .4% PRODUCT NUMBER THICKNESS ± .001" PRODUCT INCL. LAMINATE WIDTH TYPICAL LENGTH 3HIPPING WEIGHT LBS. MAGNETIC PULL LBS./FT.SQ. PRODUCT NUMBER THICKNESS ±.001" PRODUCT INCL. LAMINATE WIDTH TYPICAL LENGTH SHIPPING WEIGHT LBS. MAGNETIC PULL LBS./FT.SQ. WM20 20 r nil White Matte 23 mil +1/16-0 100' 92 60 WM10 10 mil White Matte 13 mil +1/16-0 100' 45 36 HG20 20 r rtil Hi-Gloss 23 mil +1/16-0 100' 92 60 HG10 10 mil Hi-Gloss 13 mil +1/16-0 100' 45 36 PB20 20 r nil Uncoated 20 mil +1/16-0 100' 80 60 PB10 10 mil Uncoated 10 mil +1/16-0 100' 38 36 WM30 30 r nil White Matte 33 mil +1/16-0 100' 122 85 WM15 15 mil White Matte 18 mil +1/16-0 100' 65 50 HG30 30 r nil Hi-Gloss 33 mil +1/16-0 100' 118 85 HG15 15 mil Hi-Gloss 18 mil +1/16-0 100' 65 50 PB30 30 r nil Uncoated 30 mil +1/16-0 100' 115 85 PB15 15 mil Uncoated 15 mil +1/16-0 100' 56 50 PSA30 30 mi P.S.A. 34 mil +1/16-0 100' 125 85 PSA15 15 mil P.S.A 17 mil +1/16-0 100' 65 50 (+1.59mm) (30.5m) Packaging ULTRA-MAG sheeting is supplied in master roll cartons of 200 sq. ft. or U.P.S. sized rolls. Packaged one roll per 275 Ibs. test corrugated box with spcial end protectors. ARNOLD" ^^..^^ MAGNETIC TECHNOLOGIES FLEXMAG INDUSTRIES, INC. 107 Industry Road Marietta, OH 45750 800-543-4426 镕 740-374-8024 Fax: 740-374-5068 www.arnoldmagnetics.com ©2007 Flexmag Industries, Inc.

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:18.00pt "Arial Black", sans-serif; } .font6 { font:15.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:6.75pt "Lucida Sans Unicode", sans-serif; } .font8 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font10 { font:10.00pt "Lucida Sans...
