Hard Ferrite Material

Product catalog summary

Introduction
ARNOX® ceramic permanent magnets are tailored to meet specific needs, with engineering support available for design assistance.

General Characteristics
Composed of strontium carbonate and iron oxide, ARNOX magnets are cost-effective due to inexpensive raw materials. They are chemically inert, non-conductive, and possess high electrical resistivity. The Curie temperature is around 450°C, requiring a magnetizing force of approximately 15,000 oersteds for saturation. Demagnetization can occur through high alternating fields or heating above the Curie temperature.

Temperature Effects
Temperature changes can lead to reversible and irreversible magnetization changes. Reversible changes occur at -0.2% per degree C for flux and +0.27% per degree C for intrinsic coercivity. Adequate magnetic length can prevent irreversible changes.

Applications
The isotropic grade AC-1 can be magnetized in any direction, while anisotropic grades require magnetization in their orientation direction. Custom grades are available for specific uses.

Standard Tolerances
Unfinished surfaces have specific dimensional tolerances, while finished surfaces have tighter tolerances and specified roughness. Squareness and warp are controlled within set limits.

Design Considerations
Designs should minimize manufacturing challenges by following guidelines such as limiting thickness in the pressing direction and avoiding abrupt cross-section changes.

Magnetic Grades
ARNOX magnets come in various grades, with typical values provided for each, aligning with USA, IEC, and Chinese standards.

Features of ARNOX Magnets
Offering a range of sizes, shapes, and grades, ARNOX magnets provide excellent value in price and performance, are corrosion-resistant, and can endure long-term high-temperature exposure.

Limited Warranty
Arnold Magnetics Ltd. offers a warranty covering material and workmanship defects, with repair or replacement as the sole remedy.

Catalog excerpts

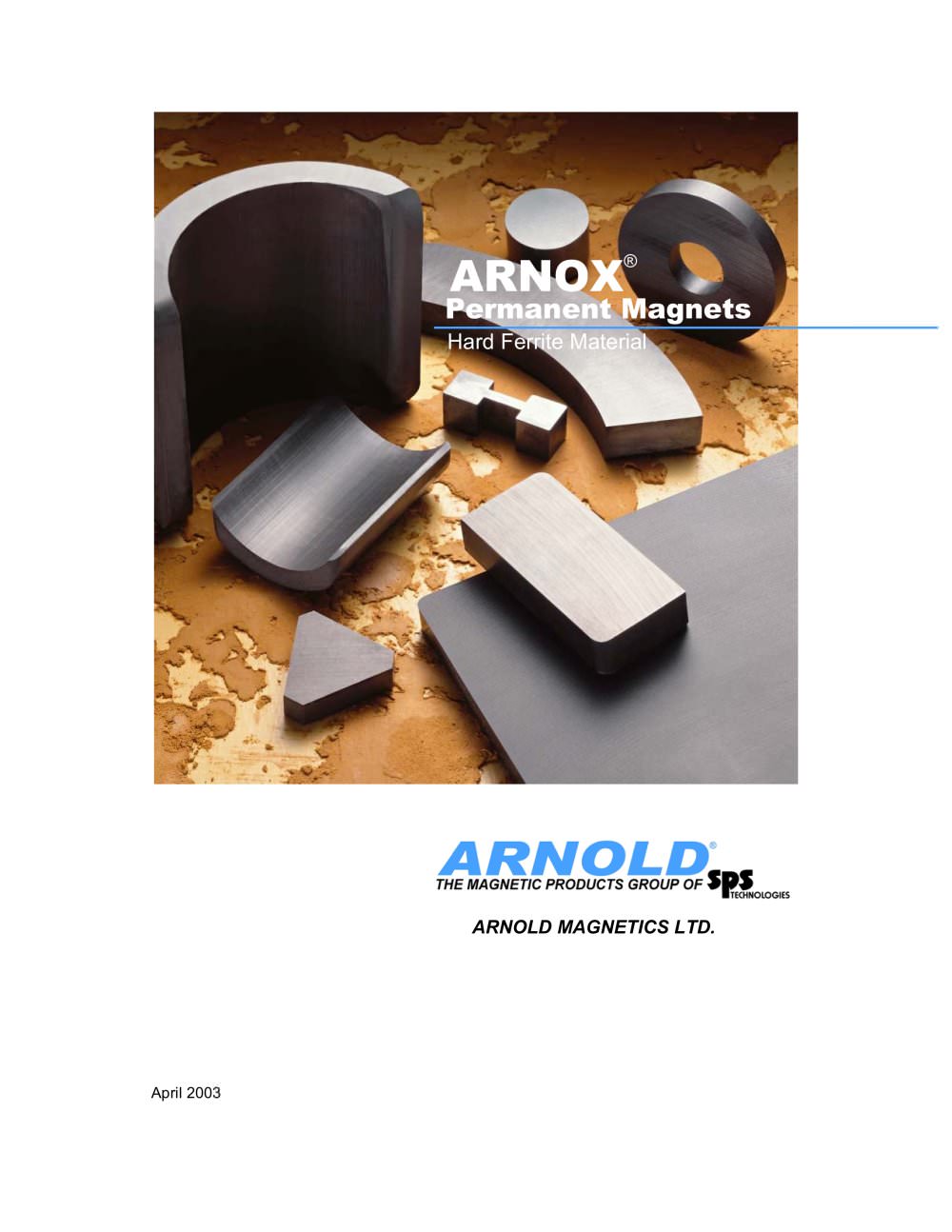

ARNOX® Permanent Magnets Hard Ferrite Material ARNOLD MAGNETICS LTD. April 2003

Open the catalog to page 1

April 2003 Page: 2 ARNOX® PERMANENT MAGNETS Hard Ferrite Material Introduction ARNOX® ceramic permanent magnets are manufactured to meet your individual requirements, and our engineering staff is ready to assist you in all phases of magnet design. General Characteristics All ARNOX magnets are manufactured to rigid magnetic and physical standards which meet or exceed Magnetic Materials Producers Association standards. The chemical composition of ARNOX magnets is SrO•6(Fe203). The raw materials used to produce ARNOX magnets are strontium carbonate and iron oxide. They are nonstrategic, readily...

Open the catalog to page 2

April 2003 Page: 3 or ±.010 in. (.25 mm), whichever is greater Design Considerations When considering a new design using ARNOX magnets, in order to minimize the potential for manufacturing difficulties and to be more assured of a satisfactory, and perhaps less costly product, one should bear in mind a few “rules of thumb”: The maximum thickness in the direction of pressing should be approximately one inch, and this dimension (also called the magnetic length) should be less than any other dimension. If greater thickness is needed for a particular application, two or more magnets may be stacked...

Open the catalog to page 3

April 2003 Page: 13 Limited Warranty and Exclusive Remedy Arnold Magnetics Ltd. warrants that these products conform to industry standards specific herein and will be free from defects in material and workmanship. THIS WARRANTY IS EXPRESSLY GIVEN IN LIEU OF ANY AND ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND IN LIEU OF ANY OTHER OBLIGATION ON THE PART OF ARNOLD MAGNETICS LTD. Arnold Magnetics Ltd. will, at its option, repair or replace free of charge (excluding all shipping and handling costs) any products...

Open the catalog to page 13

& RUSSIA ASIA-PACIFIC NORTH & SOUTH AMERICA EUROPE, AFRICA & RUSSIA Arnold Magnetics (HK) Ltd Unit 5, 10Fl., Kingsford Industrial Centre 13 Wang Hoi Road Kowloon Bay, Hong Kong Tel: (+852) 3106-3737 Fax: (+852) 3105-1955 Email: [email protected] Arnold Linden Ave. Rochester, NY 14625-2764 USA Tel: 800-593-9127 International: (+1) 585-385-9010 Fax: (+1) 585-385-9017 Email: [email protected] Swift Levick Magnets Ltd. High Hazels Road Barlborough Links, Barlborough Derbyshire S43 4TZ United Kingdom Tel: (+44) 1246-570500 Fax: (+44) 1246-573000 Email: [email protected] 770 Linden Ave....
