FABRIC IP SOLUTIONS
4Pages

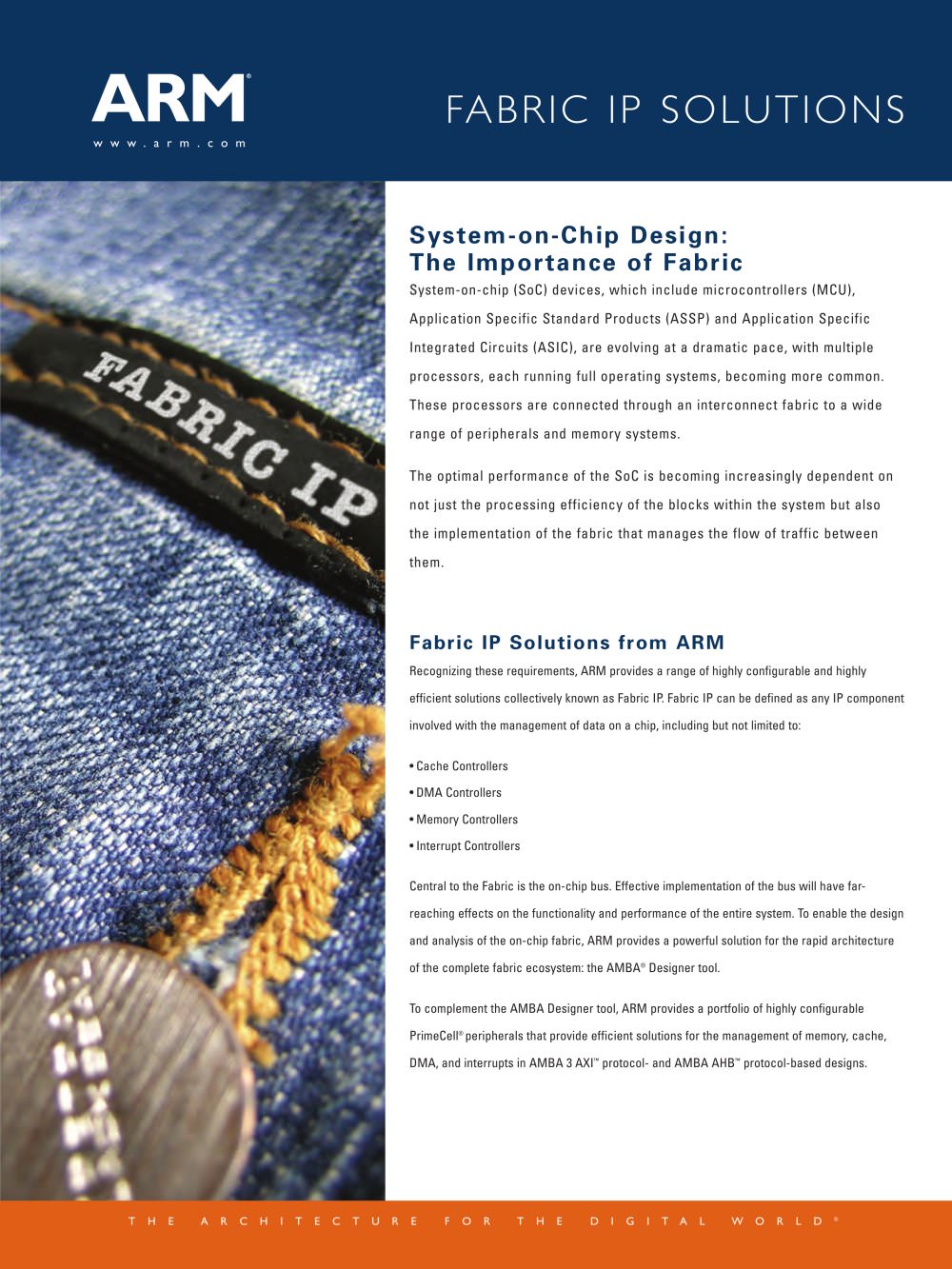

Recognizing these requirements, ARM provides a range of highly configurable and highlyefficient solutions collectively known as Fabric IP.Fabric IP can be defined as any IP component involved with the management of data on a chip, including but not limited to:Cache ControllersՕDMA ControllersMemory ControllersՕInterrupt ControllersCentral to the Fabric is the on-chip bus. Effective implementation of the bus will have far-reaching effects on the functionality and performance of the entire system. To enable the design and analysis of the on-chip fabric, ARM provides a powerful solution for the rapid architecture of the complete fabric ecosystem: the AMBA > Designer tool.Tocomplement the AMBA Designer tool, ARM provides a portfolio of highly configurablePrimeCell > ή peripherals that provide efficient solutions for the management of memory, cache,DMA, and interrupts in AMBA 3 AXI > protocol- and AMBA AHB > ٙ protocol-based designs. > THE ARCHITECTURE FOR THE DIGITAL WORLD size="-3">

The AMBA interconnect protocol is the de factoindustry-standard on-chip interconnect specification that serves as a framework for SoC designs, effectively providing the digital glueӔ that binds IP processors together. It is also the backbone of ARMs design reuse strategy. Through open consultation with the wider SoCcommunity, ARM strives to achieve the most technologically advanced, supportable, royalty-free interconnect specification in theindustry. The current PrimeCell portfolio supports the AMBA 3 release of the specification that defines the AMBA AXI, AHB, AHB-Lite, APB, and ATB...

Optional configuration GUI and route to modelsimulation through SoC Designer Configuration Guide Direct Configuration Interface > Synthesis/LEC Template Files Configuration File Synthesizable Verilog Synopsys Synthesis Scripts Synthesizable Verilog Template Files Formality LEC Script > Configuration Engine Conformal LECScript > Verification Testbench Verification Template Files Testbench Vectors Technical Reference Manual Release Notes Implementation Guide Errata Integration Manual Engineering Deliverables Documentation > Multi-layer interconnect topologyConfigurable for: number of master...

PRODUCT CODE CONFIGURATION TOOLS PRODUCT CODE AXI TRUSTZONE PRIMECELL IP FD001 AMBA Designer BP141 TrustZone Internal Memory BP147 TrustZone Protection Controller > PRODUCT CODE AMBA > PL201 AHB PRODUCT CODE AMBA PL301 AXI L210 AHB > L220 AXI PRODUCT CODE AMBA STATIC MEMORY CONTROLLERS > PL241 AHB 32-bit SRAM/NOR PRODUCT CODE AMBA INTERRUPT CONTROLLERS PL351 AXI 32/64-bit NAND PL190 AHB Vectored Interrupt Controller (VIC) PL352 AXI 32/64-bit SRAM/NOR PL192 AHB Advanced VIC PL353 AXI 32/64-bit NAND and SRAM/NOR PL390 AXI Generic Interrupt Controller PL354 AXI 32/64-bit SRAM/NOR and SRAM/NOR...
