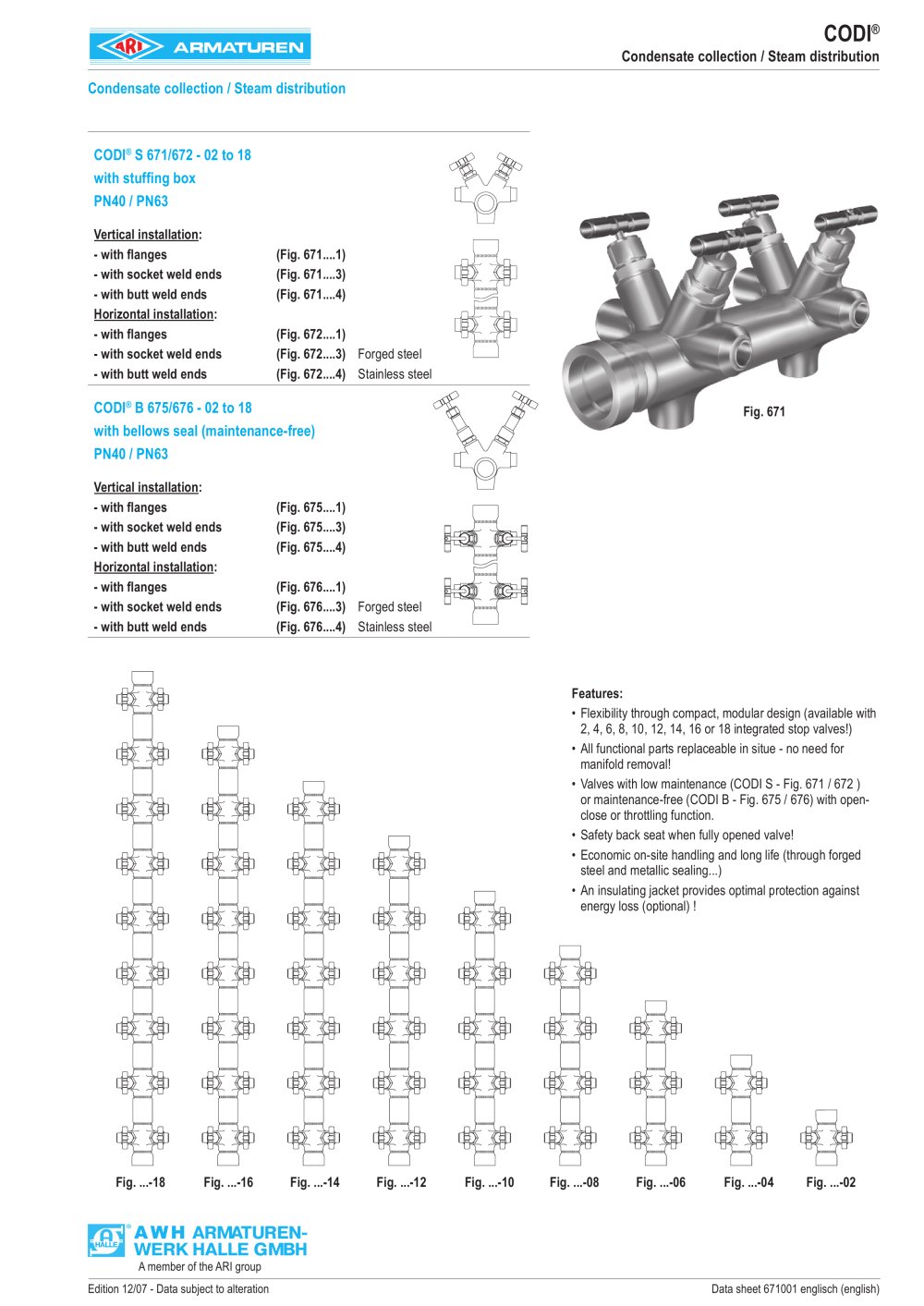

CODI® - PN40 / PN63 Fig. 671/675 (Vertical installation) / Fig. 672/676 (Horizontal installation) Condensate collection and Steam distribution (Forged steel) CODI® S Fig. 671 / 672 Design with stuffing box Module complete CODI® B Fig. 675 / 676 Design with bellows seal Module complete Edition 12/07 - Data subject to alteration Condensate collection Steam distribution Condensate collection Steam distribution Variant: Open-close function Variant: Throttling function Safety back seat when fully opened valve Variant: Open-close function Variant: Throttling function or Safety back seat when...
Open the catalog to page 2Parts Pos. Description Fig. 45.671 / 45.672 / 45.675 / 45.676 Fig. 46.671 / 45.672 / 45.675 / 45.676 Fig. 55.671 / 45.672 / 45.675 / 45.676 1 Body P250GH, 1.0460 X2CrNiMo17-12-2, 1.4404 2 Connection between the modules P325GH-TC1, 1.0305 X2CrNiMo17-12-2, 1.4404 3 Seat * X8CrNiS18-9, 1.4305 4 Valve ball X39CrMoS17+QT, 1.4122+QT 5 Packing ring (1 set for CODI® S) * Pure graphite 6 Union nut X14CrMoS17+QT, 1.4104+QT 7 Graphitring Graphite 8 Assembly stop valve, cpl.. * X6CrNiMoTi17-12-2, 1.4571 8.1 Bellows seal Stainless steel 9 Safety washer X5CrNi18-10, 1.4301 10 Packing ring (1 set for...
Open the catalog to page 3CODI® Insulating jacket / immersion tube Edition 12/07 - Data subject to alteration Cona insulating jackets provide a simple and effective heat insulation (suitable for every Condensate collection / Steam distribution) Advantages: energy saving less radiation of heat to the atmosphere safety of the operation personal robust, non ageing resistance to heat low weight and flexible clean handling (no contact with the insulating material) free from asbestos water repellent simple disassembly and reusable • • • • • • • • • • Insulating jacket / pipe connection Insulating jacket in mounted...
Open the catalog to page 5CODI® Options for Condensate collection Edition 12/07 - Data subject to alteration Preferred vertical installation ... primary stop valve (flanged) for welding neck flange DN 40 acc. to DIN 2635 or DIN 2635 resp. DN 50 acc. to DIN 2635 or DIN 2636 ... secondary connections (flanged) DN 15 to DN 25 acc. to DIN 2635 or DIN 2637 ... design with blow down valve ... primary stop valve (butt weld ends) DN 40 and DN 50 acc. to DIN EN 12627 ... secondary connections (butt weld ends) DN 15 to DN 25 acc. to DIN EN 12627 ... design with blow down valve ... primary stop valve (butt weld ends) DN 40 and...
Open the catalog to page 6CODI® Options for Steam distribution Edition 12/07 - Data subject to alteration ... primary stop valve and secondary connections - design with blow down valve ... primary stop valve and secondary connections - design with blow down valve ... primary stop valve and secondary connections - design with blow down valve ... steam trap at the condensate collector Steam distribution The last secondary connection is designed for discharging the condensate. Condensate collection
Open the catalog to page 7ARI-Armaturen Albert Richter GmbH & Co. KG, D-33756 Schloß Holte-Stukenbrock, Tel. +49 52 07 / 994-0, Telefax +49 52 07 / 994-158 or 159 Internet: http://www.ari-armaturen.com E-mail: info.vertrieb@ari-armaturen.com CODI® Scope of combinations / accessories Technology for the Future. G E R M A N Q U A L I T Y V A L V E S 9001 I ISO §19 WHG QUALI TY MANAGEMENT SYST EMS AWH ARMATURENWERK HALLE GMBH ® HALLE A member of the ARI group Edition 12/07 - Data subject to alteration (Primary connections) (Secondary connections) (Blow down valve) Immersion tube Scope of connections Inquiry- /...
Open the catalog to page 8All ARI-Armaturen catalogs and technical brochures
-
