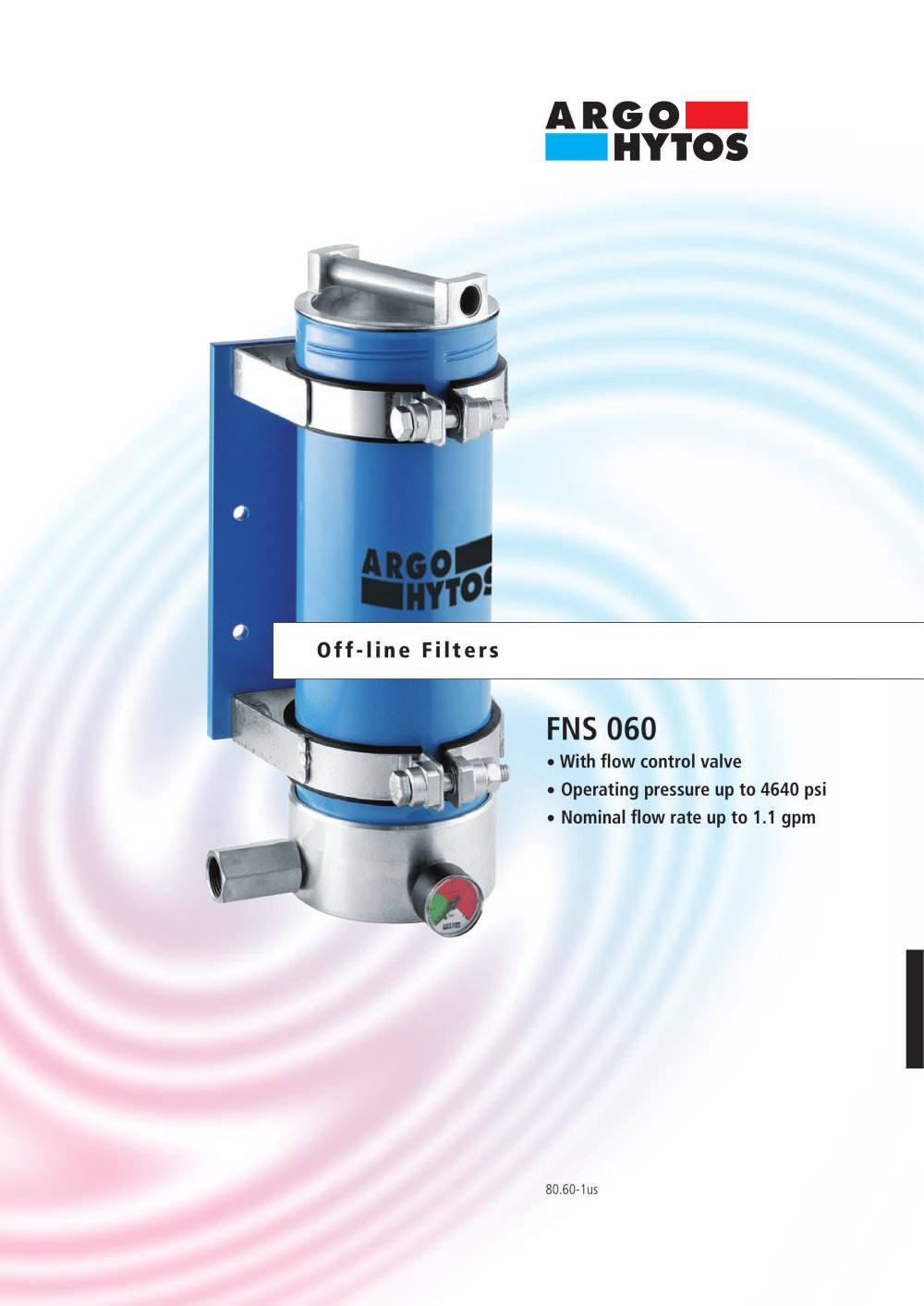

Off-line Filters 1.1 gpm, up to 4640 psi, In-line mounting, FNS 060

Product catalog summary

Specifications:
The FNS 060 off-line filters are equipped with a flow control valve and can operate at pressures up to 4640 psi with a nominal flow rate of up to 1.1 gpm. They are designed for high-pressure circuits in hydraulic and lubricating oil systems.

Performance Features:
These filters provide protection against wear and malfunction by using ultra-fine filter elements that ensure high cleanliness and dirt-holding capacity. The design allows for easy maintenance with a cover that can be opened without special tools, minimizing oil loss during filter changes.

Design Features:
The filter includes a flow control valve that connects directly to the high-pressure pipe, cleaning surplus volume from the circuit. A dirt retention valve ensures accumulated dirt is removed with the filter element.

Filter Elements:
The filter elements have a flow direction from center to outside, featuring star-shaped pleating for large surface area, low pressure drop, and high dirt-holding capacity. Maintenance is optimized with a clogging indicator.

Materials:
The filter head is made of aluminum alloy, the housing of steel, and seals are NBR (Viton available on request). The filter media is EXAPOR® - an inorganic, multi-layer microfiber web.

Accessories:
Water-absorbing filter elements and clogging indicators (electrical and optical) are available on request.

Technical Data:
The filter operates within a temperature range of -22°F to +212°F and can handle viscosities up to 5560 SUS. It is designed for vertical mounting with a connection port at the bottom.

Quality Assurance:
ARGO-HYTOS ensures quality through strict controls and tests according to DIN and ISO standards, including verification of collapse resistance, material compatibility, flow fatigue characteristics, and pressure drop evaluations.
