Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016
8Pages

Catalog excerpts

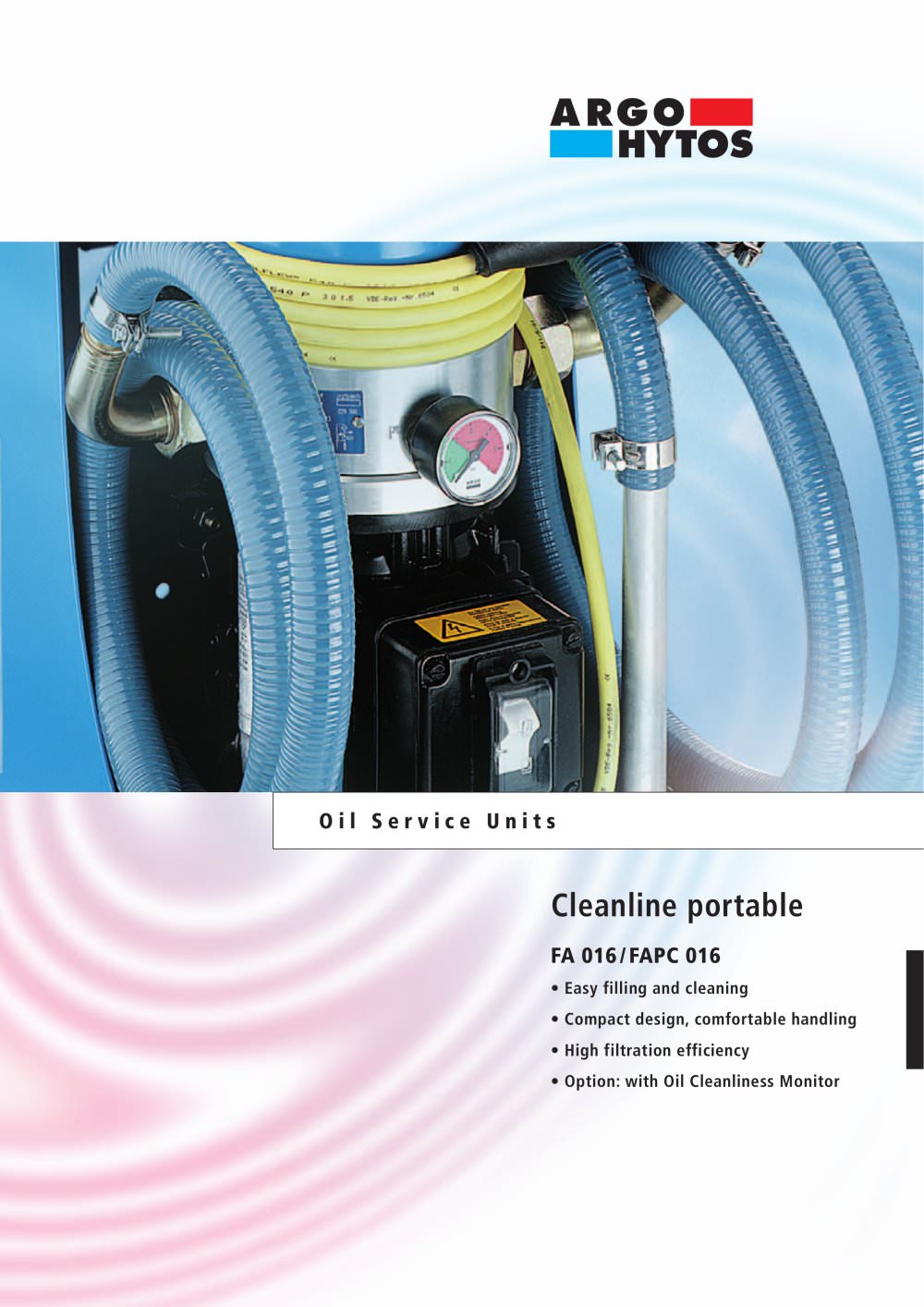

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 1

FA 016/FAPC 016 > Easy filling and cleaningՕ Compact design,comfortable handling High filtration efficiency Օ Option:with Oil Cleanliness Monitor size="-1">

Open the catalog to page 1

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 2

The compact design allows easy access to the oil tank.Cleanline portable comes ready to connect,with hose packages.The suction hose and the pressure hose can be wound around the hose fixtures.Residual oil from the hoses is collected in the oil pan.The ultra-fine elements can be quickly changed without specialauxiliary tools. With the Cleanline portable hydraulic or lubricating systemscan be easily filled or cleaned in off-line filtration.Compact design and comfortable handling Protection of components through ultra-fine filtration The EXAPOR > ֮ ultra-fine elements are the heart of the...

Open the catalog to page 2

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 3

2 in 1:Cleanline portable with Oil Cleanliness Monitor OPCom The Cleanline portable can be equipped with a Oil Cleanliness Monitor.The ARGO-HYTOS OPCom permanently monitors the current cleanliness class during the cleaning or filling process.When monitoring the cleanliness class a ball valve is used to select ֓upstream(before filter,e.g.when cleaning filled oil) or ӓdownstream(behind filter,e.g.when filling systems).The display area allows a choice of particle sizes:4,6,14 or 21 Եm.The display shows the classification number of the selected particle size,as specified by ISO 4406:1999. The...

Open the catalog to page 3

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 4

1.Economical > oilmaintenanceno oilmaintenancemachine life time Efficiency through ARGO-HYTOS Fluid Management systems.After just a short time your investments will be amortized due to longer service intervals and increase of machine availability. 2.Portable in any position Thanks to the compact design the Cleanline portable can be easilycarried and also be used in difficult zones of hydraulic systems.Hoses and electric cables can be fixed at the service unit.The Cleanline portable can be operated and transported in both up- right and horizontal positions. > operating costs 3.User-friendly...

Open the catalog to page 4

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 5

Temperature range of fluids +32 F...+140 аF (also see fluid viscosity range). Ambient temperature range +32 F...+122 аF AccessoriesWater-absorbing filter elements EXAPOR > Hydraulic connection Hoses: Suction hose NG 20,length 5.9 ft,with suction strainer 300 m, ՘ approx.1.9 inches pressure hose NG 20,length 6.6 ft,pressure or supply lance approx.0.8 inches (extensions on request) Electrical connection / Electric motor Electric motor,air cooled fan type Cable:length 8.2 ftElectro motor types:1~ 110 V / 50...60 Hz1~ 230 V / 50...60 Hz Protection type IP 55Electro motor type 24 V DCProtection...

Open the catalog to page 5

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 6

Cleaning speed Determining the cleaning speed The cleaning speed depends on the efficiency of the filter elements( β x(c)),the nominal volume flow (Qnominal) and the oil volume(Vactual).In graph D1-D2 the cleaning speeds are shown in relation to the filterfineness (cleanliness information according to ISO 4406:1999).The values are recorded by laboratory methods and they may be influenced by environmental conditions (such as continuous additional introduction of dirt on running systems,high water content,etc.).All characteristic curves (see graphs D1-D2) relate to a > Initial value...

Open the catalog to page 6

Cleanline portable 4.2 gpm, up to 58 psi, FA 016/FAPC 016 - 7

Curves for cleaning speed as a function of the filter fineness > 3E-N and 5E-N EXAPOR > filter elementReference oil volume with Q > ή filter elementReference oil volume with Q > off-line filter = 4 gpm.12E EXAPOR > off-line filter = 4 gpm. > Cleanliness according to ISO 4406:1999 Cleanliness according to ISO 4406:1999 Runtime in min.Runtime in min. Filter fineness curves in selection chart > Filtration ratio β as a function of particle size x obtained by the Multi-Pass-Test according to ISO 16889 Particle size x [m] (for particles larger than the given particle size x) The abbreviations...

Open the catalog to page 7
